Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts

  • Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts
  • Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts
  • Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts
Place of Origin China
Brand Name Riselaser
Certification ISO, CE
Model Number Lightcutter 4kw/6kw
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Precitec Laser Wavelength 1030 … 1090 Nm
Max. Laser Power 6 KW 4kw 3kw 2kw 1500w Adjustment Range Vertical (focal Position)
Focus Lengths 125, 150, 200 Mm Dimensions (WXD) 130 X 69 Mm
Weight Approx. 4,4 Kg / Approx. 5,0 Kg
High Light

Flexible material fiber laser cutting head

,

200mm fiber laser cutting head

,

Cutting Head laser machine spare parts
Leave a Message
Product Description

Product Advantages

Flexible material thickness processing through a high degree of automation
LightCutter 2.0 delivers outstanding cut and product quality without compromise: optimized for continuous permanent operation, it scores with high cutting speeds and smooth rectangular edges with minimal burrs. It has a very sturdy design, is lightweight and convinces even after long cutting cycles. No other head in this class produced comparable stable results.

In the case of frequent material changes, motorized focus position adjustment reduces machine operator intervention time. Different thicknesses and materials can be cut very flexibly. Thanks to this automatic adjustment, the cutting head always works with high precision and stability, even at high accelerations of up to 3 g. It is also the best in its class in all other performance characteristics. Displays the set focus position on the front panel to make debugging easier.





Specifications



Items Data
Laser Wavelength 1030 … 1090 nm
Laser Power max. 6 kw
Collimation focal length (fC) 100mm
Focusing focal length (fF) 150 mm and 200 mm (with VA)
NA specification 99,0% included energy at Ɵ no more than 120 mrad
Average Transmission > 97% @ 1030 - 1090 nm
Adjustment range – horizontal (3 mm)
– vertical (focal position)
Weight approx. 4,4 kg / approx. 5,0 kg

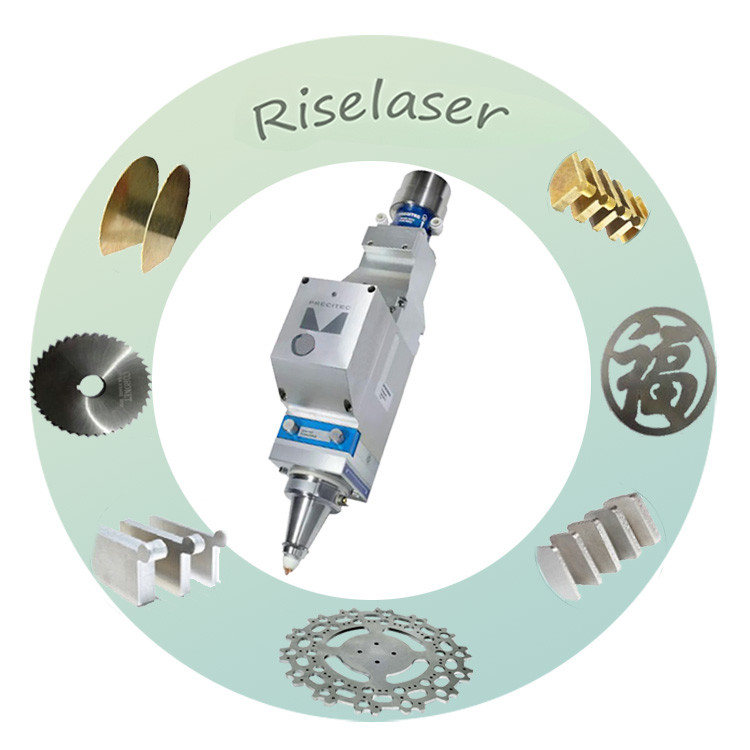

Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts 0



Cutting head contrucitons

Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts 1Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts 2

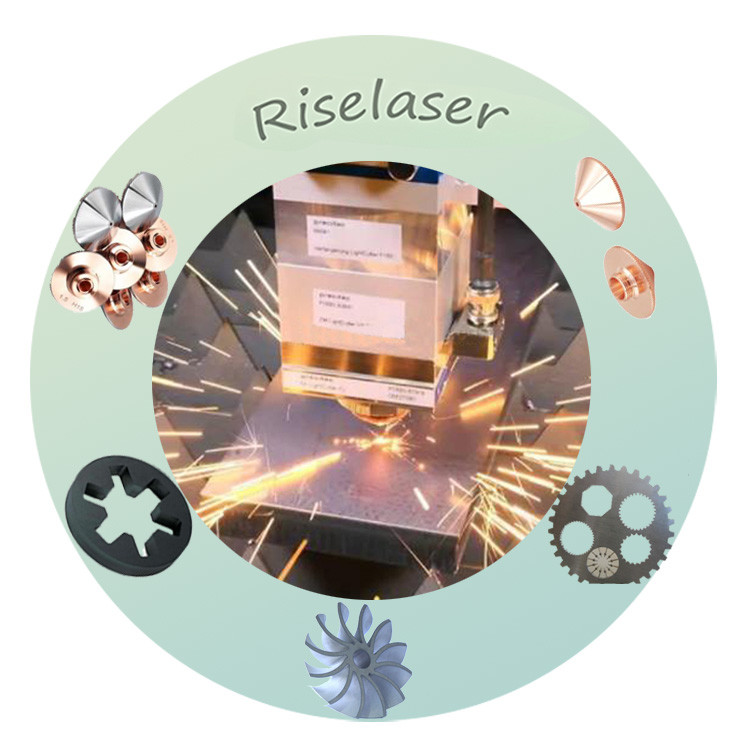

Cutting samples

Precitec Fiber Laser Cutting Head High Power 4000w 6000w Laser Machine Spare Parts 3
