Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking

Place of Origin Shenzhen
Brand Name OY
Certification ISO9001:2008
Model Number 1064nm
Minimum Order Quantity 1
Price negotiation
Packaging Details carton
Supply Ability 20000units

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1064nm Scanning Laser Type 1064nm
Application Fiber Laser Marking Machine Frequency ≤1000Hz
Warranty 3 Months Certification ISO9001:2008
High Light

laser cutting machine parts

,

laser scan head

Leave a Message
Product Description



1064nm Fiber Laser Scanning Head for Fiber Laser Marker Equipements





Product Application:

Designed with digital or analog interface, suitable for different fiber laser source.
The input aperture is 10mm, 12mm and 16mm.
It is widely used in different industrial applications including precision laser marking and laser engraving.

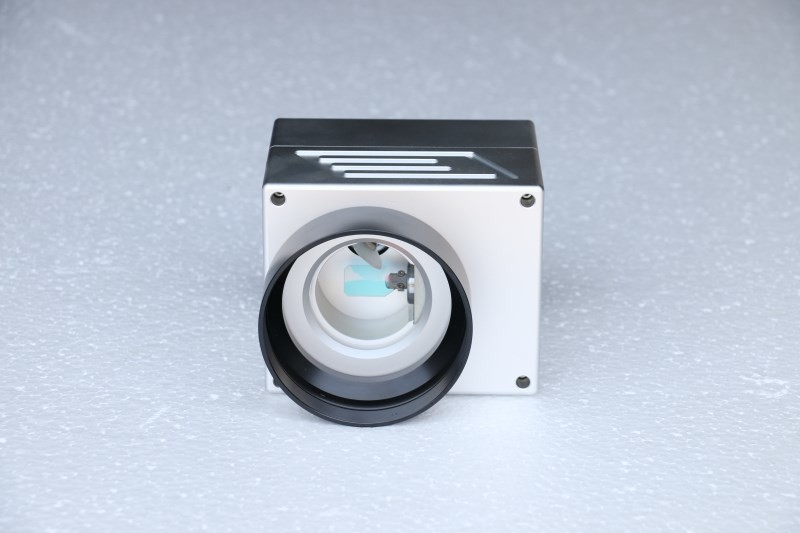

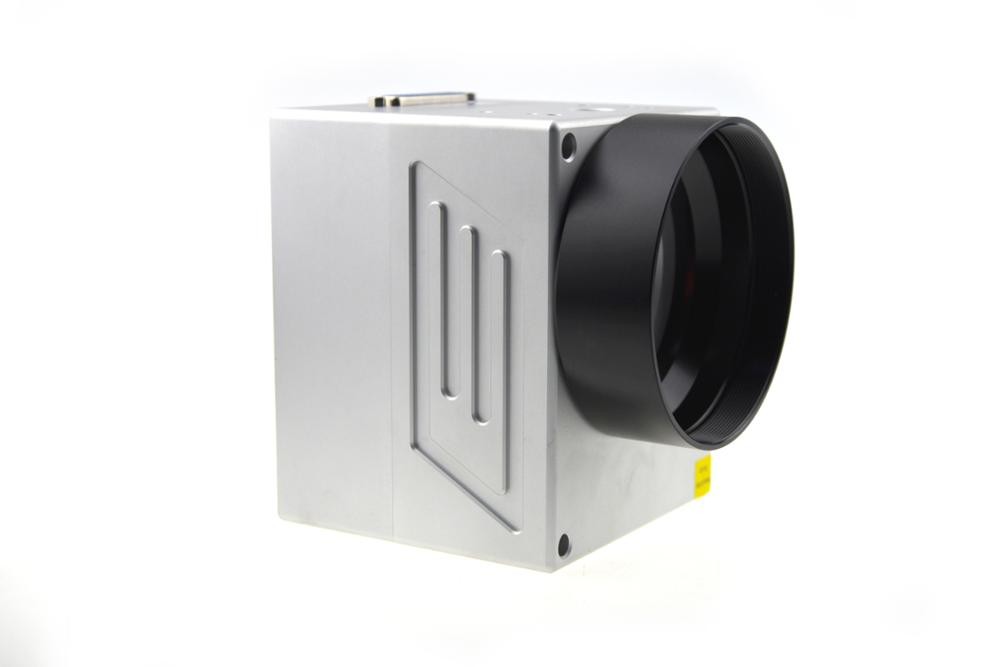

Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking 0

Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking 1

Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking 2



Technical Parameters:

1064nm Galvo Scanner/Galvanometer Scanner/ Scan Head for Fiber Laser Marking Machine

Model

E10

E12

E16

Aperture Size

10mm

12mm

16mm

Typical Scan Angle

±20°

±20°

±20°

Power Requirement

±15VDC

±15VDC

±15VDC

1% Full Scale

0.36ms

0.4ms

0.48ms

Marking Speed

3.5m/s

3m/s

2.5m/s

Positioning Speed

7m/s

6.5m/s

5.5m/s

Writing Speed

650cps

600cps

500cps

Repeatability

10μrad

10μrad

10μrad

Gain Drift

<80ppm/K

<80ppm/K

<80ppm/K

Offset Drift

<50μrad/K

<50μrad/K

<50μrad/K

Long-term Drift

0.3mrad

0.3mrad

0.3mrad

Operating Temperature

25℃±10℃

25℃±10℃

25℃±10℃

Digital Communication

XY2-100

XY2-100

XY2-100

Mirror Coatings

YAG/CO2/Silver

YAG/CO2/Silver

YAG/CO2/Silver

Weight

1.38kgs

1.52kgs

2.35kgs



Detail Pictures:Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking 3

Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking 4



Laser Scan Head Laser Machine Parts 10mm Input Aperture For Precision Marking 5
