Precitec Fiber Laser Cutting Head Laser Light Cutter 4kw 6kw For Metal Cutting

  • Precitec Fiber Laser Cutting Head Laser Light Cutter 4kw 6kw For Metal Cutting
  • Precitec Fiber Laser Cutting Head Laser Light Cutter 4kw 6kw For Metal Cutting
  • Precitec Fiber Laser Cutting Head Laser Light Cutter 4kw 6kw For Metal Cutting
Place of Origin China
Brand Name Riselaser
Certification ISO, CE
Model Number Lightcutter 4kw/6kw
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Precitec Max. Laser Power 6 KW (2D Version Only)
Collimating Focal Length 100 Mm Focus Lengths 125, 150, 200 Mm
Dimensions (WXD) 130 X 69 Mm Weight 4.0 Kg
High Light

Precitec Fiber laser cutting head

,

100mm Fiber laser cutting head

,

1090 nm laser Light Cutter
Leave a Message
Product Description

Cutthing head features

Flexible for 2D to 3D applications
The LightCutter 2.0 is the ideal solution for all laser cutting applications in the mid-power range up to 6 kW. Whether 2D, 2.5D or 3D - with its wide range of variants, you can always find the most efficient and economical configuration. It features high cutting quality for all sheet metal up to 25 mm thick - especially for laser cutting of mild steel, stainless steel and aluminium.





Specifications



Items Data
Laser Wavelength 1030 … 1090 nm
Laser Power max. 6 kw
Collimation focal length (fC) 100mm
Focusing focal length (fF) 150 mm and 200 mm (with VA)
NA specification 99,0% included energy at Ɵ no more than 120 mrad
Average Transmission > 97% @ 1030 - 1090 nm
Adjustment range – horizontal (3 mm)
– vertical (focal position)
Weight approx. 4,4 kg / approx. 5,0 kg

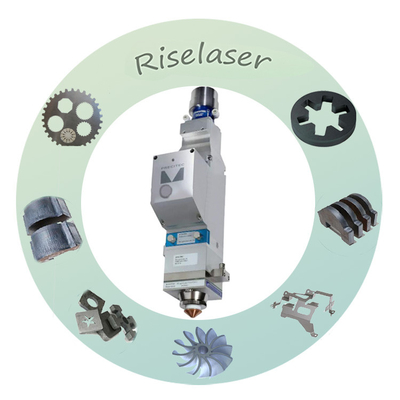

Precitec Fiber Laser Cutting Head Laser Light Cutter 4kw 6kw For Metal Cutting 0



Cutting head contrucitons

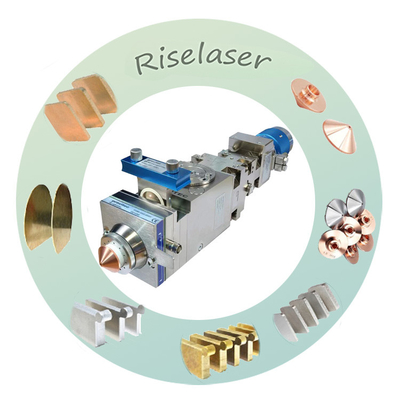

Precitec Fiber Laser Cutting Head Laser Light Cutter 4kw 6kw For Metal Cutting 1



Machine Packing

Precitec Fiber Laser Cutting Head Laser Light Cutter 4kw 6kw For Metal Cutting 2
