Portable Fiber Laser Engraving Machine for Portable Mini Metal Nameplate Mold Flange Coding

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-H30
Minimum Order Quantity 1 set
Price Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Portable Fiber Laser Engraving Machine

,

Mini Fiber Laser Engraving Machine

,

Handheld Fiber Laser Engraving Machine

Leave a Message
Product Description

20W 30W Handheld Smart Laser Marking Machine​
The H30 handheld inteligent laser machine is a portable, battery powered and fully autonomousmarking machine! Thanks to its powerful 24V rechargeable lithium battery power supply system, it canmaintain operation for 11-13 hours under normal use, with strong endurance and no cable drag,avoiding the embarrassment of sudden power failure during use. lt slight weight and versatility make itparticularly suitable for perfect marking on large, bulky, or difficult to remove work pieces


The H30 is powerful and reliable,with a marking head of only 1.1 kg. lt has ergonomic grip strengthmaking it comfortable to hold and easy to operate. With a rear USB interface, the software supportsmarking content such as text, patterns, OR codes, barcodes, serial numbers, and araphics, in additionthe H30 also has a dedicated trolley case that is convenient for stora ge and canbe carried to differentlocations. lt's currently one of the smallest rechargeable laser marking machines on the market !

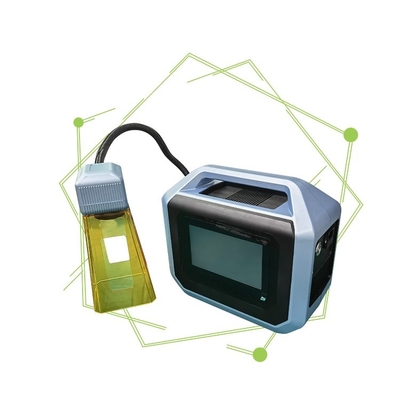

Portable Fiber Laser Engraving Machine for Portable Mini Metal Nameplate Mold Flange Coding 0

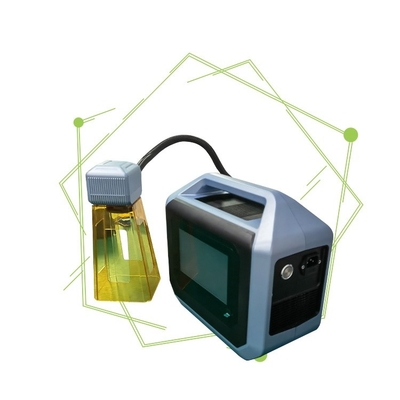

Portable Fiber Laser Engraving Machine for Portable Mini Metal Nameplate Mold Flange Coding 1

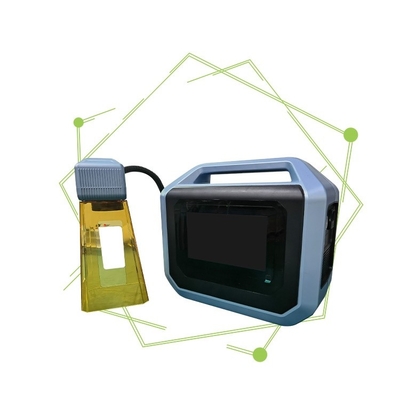

Portable Fiber Laser Engraving Machine for Portable Mini Metal Nameplate Mold Flange Coding 2

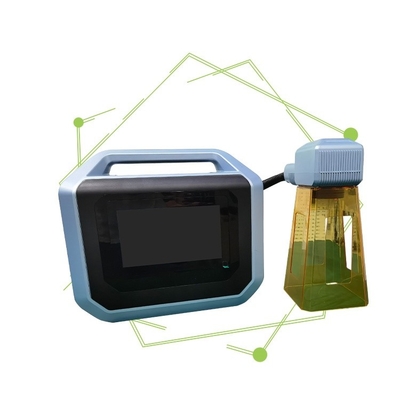

Portable Fiber Laser Engraving Machine for Portable Mini Metal Nameplate Mold Flange Coding 3

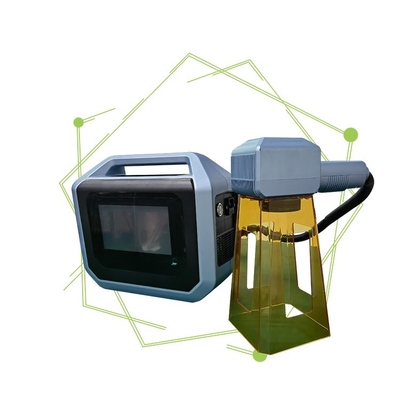

Portable Fiber Laser Engraving Machine for Portable Mini Metal Nameplate Mold Flange Coding 4

Parameters

Output power 20W/30W
Laser wavelength 1064nm
Marking speed ≤1200mm/s
Laser wavelength 1064mm
Cooling system Normal temperature air cooling
Marking range 110mm*110mm(or customized)
Positioning method Red light indication
Main control 7 inch touch controller
Focusing lens Focal length 183.5mm
Machine weight

Head: 1.1kg



Plug-in chassis: 4.5kg, G.W.: 7kg

Lithium-ion chassis: 6.2kg, G.W.: 9kg



Plug-in chassis: 5.5kg, G.W.: 8kg

Lithium-ion chassis: 7kg, G.W.: 10kg
