355nm Laser Etching Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3W UV Laser Marking Machine | Working Accuracy | 0.01mm |
|---|---|---|---|
| Control Software | EZCAD | Warranty | 1 Year |
| Laser Wavelength | 355nm | Marking Speed | 0-7000mm/s |
| Certificate | CE | Color | Silver,red |
| Highlight | 7000mm/s Laser Etching Machine,355nm Laser Etching Machine,EZCAD Laser Marking Machine |
||
Product Description

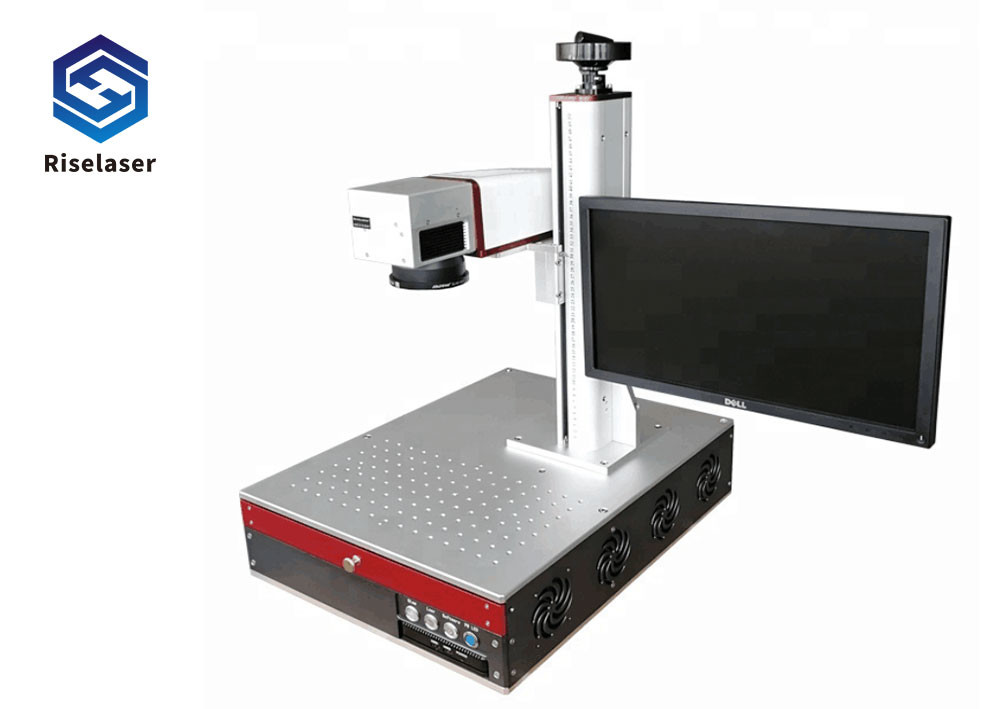

Table Top Laser Etching Machine UV Mini Laser Marking Machine
Product Description
RL-UV3 has a compact structure, saves space, and is very easy to install and debug. The built-in laser diode technology can avoid the influence of fiber jitter on the output laser. Ultraviolet light can be absorbed by most materials due to its short wavelength and easily absorbed, so it is widely used. In addition, the beam quality is excellent enough to ensure the stability and reliability of mass production.
Product Parameter (Specification)
| No | Parameter | Details |
| 1 | Model | RL-UV 3 |
| 2 | Laser wavelength | 355nm |
| 3 | Average power | > 3W@40kHz |
| 4 | Pulse Repetition Rate | 20kHz-200kHz |
| 5 | Pulse Width | ＜18ns@ 40kHz |
| 6 | Pulse to pulse stability | ＜3%rms |
| 7 | Beam-pointing Stability | 25μrad |
| 8 | Beam Roundness | ＞90% |
| 9 | Beam diameter | 0.7±0.1mm |
| 10 | Beam Divergence | ＜2mrad |
| 11 | Ambient temperature | 0-40℃ |
| 12 | Cooling | Air cooling |
| 13 | Power consumption | ＜800W |
Product Features
1. Cold processing: Zero processing heat affected zone, there will be no heat effect, and there is no problem of material burning.
2. High efficiency: fast marking speed, stable performance of the whole machine and low power consumption.
3. Portable: small size and light weight.
4. Simple operation: use special laser marking software, convenient data processing.
5. High precision: due to the extremely small focus of the ultraviolet laser, the marking is more precise and suitable for ultra-fine marking environments.
Applications
UV laser marking has a wide range of applications: PCB boards; silicon wafers; LCD liquid crystal, plastic buttons, electronic components, etc. Especially the marking effect of UV laser on glass is more advantageous than other lasers.
Certifications
Packaging & Shipping
FAQ
Q1. This is the first time I use this kind of machine, is it easy to operate?
YES, it is easy and safe to use. There are English manuals and guide videos that show how to use the machine. We can keep in touch for any help.
Q2. Can you recommend a MACHINE to me, thanks?
Yes, in order to recommend you a suitable machine, please tell us the max working area, materials to be processed and expected product results.
Q3. MOQ (Minimum Order Quantity)?
MOQ is 1 set.
