Glass Leather Rubber UV Laser Marking Machine Riselaser 3W 5W

  • Glass Leather Rubber UV Laser Marking Machine Riselaser 3W 5W
Place of Origin SHENZHEN
Brand Name Riselaser
Certification CE
Model Number RL-UV3/5
Minimum Order Quantity 1 SET
Price NEGOTIATION
Packaging Details Wooden Case
Delivery Time 5-9 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine 3W 5W Uv Laser Marking Machine Accuracy Precision: 0.02mm
Software Using EZCAD2.0 Machine Warranty 12 Month
Wavelength 355nm Key Factors UV Laser Marking
Speed 0-7000mm/s Certification CE
Applicable Material Plastic, Glass, Wood, Paper Weight Of The Machine 35.00 Kg
High Light

Rubber UV Laser Marking Machine

,

0.02mm UV Laser Marking Machine

,

Leather UV Laser Engraving Machine
Leave a Message
Product Description

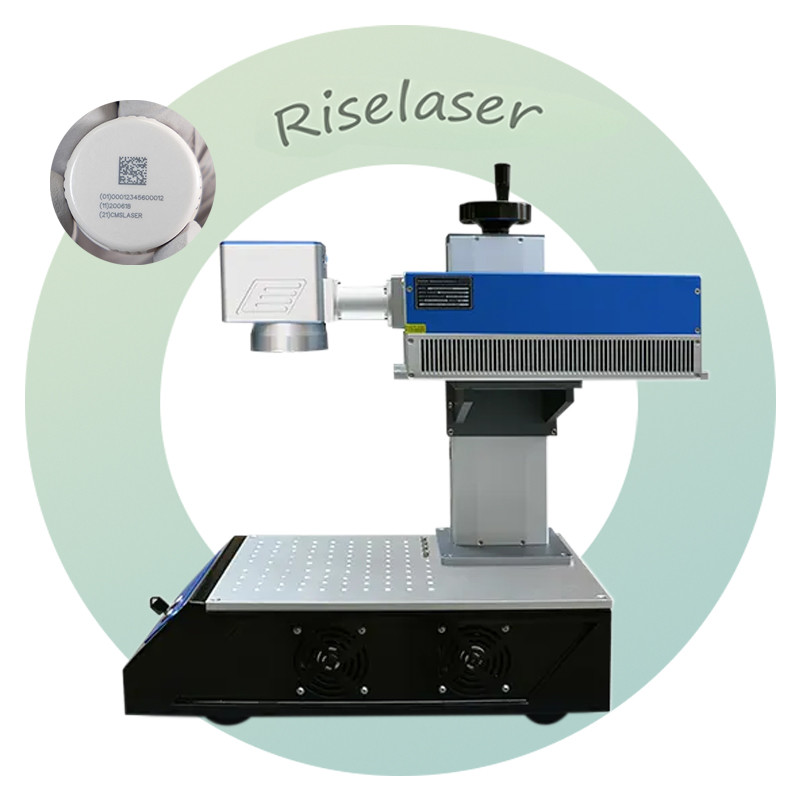

Riselaser 3W 5W Glass Lether Rubber Uv Laser Marking Machine



Machine Intro

Customers can select from three output wavelengths for the UV desktop air-cooled laser, including 355nm UV. The 355nm ultraviolet laser provides optional average output power ranging from 1-5W. The laser's repetition frequency can be adjusted within the 20KHz-200KHz range, and its laser beam quality has an M square factor of less than 1.2. The laser features a one-piece design, integrating the internal drive circuit board, and users can connect the external 12V power supply to obtain the laser output. The laser maintains stable mechanical performance without requiring adjustment to the manufacturing process, enabling it to operate reliably for extended periods.



Product Parameter (Specification)

Riselaser 3W 5W Glass Lether Rubber Uv Laser Marking Machine
Laser Machine Features Machine Body complete aluminium structure/stainless
Laser Type UV laser
Output Power ≥3W
Laser Wave 355um
Scanning System high precision double scanning system
Marking Speed ≤9000mm/s
Controller windows
Operation System windows system
Cooling System Air cooling
Laser Marking Parameters Focusing Lens focus distance 150mm(optional)
Marking Line Type dot-matrix,vector font can be printing
Min line Size 0.01mm
Repeated Positioning Accuracy 0.003mm
Marking Area 110mm×110mm(Optional)
Positioning red light positioning
Line Printing multi-line within marking size
Production Line Speed 0~230m/min (based on different materials)
File Format PLT
Barcode CODE39,CODE128,CODE126,QR,
Machine Parameters Power Supply 110-240W
Power Consumption 1100W
N.W 30KG



Glass Leather Rubber UV Laser Marking Machine Riselaser 3W 5W 0



Main Features

The UV laser is a cold light source, which means it does not generate heat, cause burning issues, or produce pollution or toxicity.
Due to its short wavelength, focus, and small spot size, the UV laser can achieve hyperfine marking.
Its excellent beam quality enables it to achieve precise marking.
The UV laser is applicable to a wide range of materials as most of them can absorb its light. Thus, it is widely used in the industry.
The UV laser is highly efficient, marking at high speeds, and its machine performance is stable. Additionally, it consumes less power.



Dimension:
Glass Leather Rubber UV Laser Marking Machine Riselaser 3W 5W 1



FAQ

Service Time 24 hours waiting for you
Fast Response 2 hours within our work time,12 hours get off work
Good Service We can supply you from design, polishing to coating
MOQ 1 piece, You can mix your order freely



Working samples

Glass Leather Rubber UV Laser Marking Machine Riselaser 3W 5W 2
