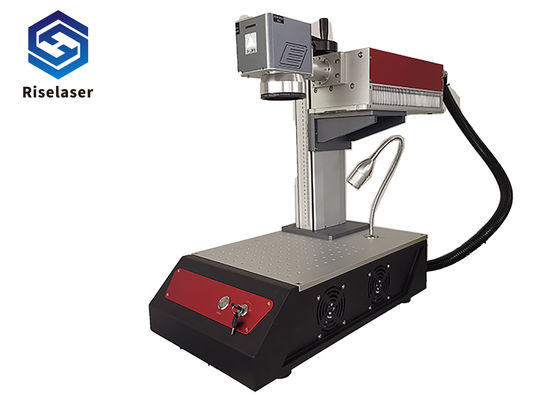

3w UV Laser Marking Machine For Glass Plastic Non Metal Material

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification CE, FDA
Model Number RL-UV3
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engraving Area 50 / 110 / 175 / 220 / 300mm Engraving Speed 7000-10000m/s
Warranty 1 Year Power Supply AC220V +10% / 50HZ Or 60HZ
Windows System Win XP / 7 / 8 / 10 (32 Bit , 64 Bit) Wavelength 355nm
High Light

3w UV Laser Marking Machine

,

ultraviolet UV Laser Marking Machine

,

355nm 30w fiber laser marking machine

Leave a Message
Product Description

3w UV Laser Marking Machine For Glass Plastic Non Metal Material





Mini uv laser marking machine 3w main features

  • Laser (light source): 355nm ultraviolet laser
  • Air-cooled device, small size, 20,000 hours maintenance-free (theoretical service life is 20,000 hours).
  • It requires water cooling, distilled water or pure water.
  • The focused spot is extremely small, the processing heat affected zone is small (cold light), and the heated area of the material is smaller. Not easy to be deformed by heat, ultra-fine marking, marking of special materials.
  • The use cost is low, the beam quality is better, the efficiency is high, the power consumption is low, and it is more energy-saving and environmentally friendly.
  • It can be applied to the high-end market, ultra-fine marking environment, cosmetics, medicine, LCD liquid crystal, electronic components, communication equipment, food and drug packaging, glass division, electronic components, metal jewelry marking.

Mini uv laser marking machine 3w Size

3w UV Laser Marking Machine For Glass Plastic Non Metal Material 0





Mini uv laser marking machine 3w specification



UV Laser Marking Machine
  Parameter Unit Description
Wavelength 354.7 nm
Average Output Power 2.0~~10.0 W @30kHz
Pulse Width <16 ns @30kHz
Pulse Repetition Rate 10-100 kHz
Spatial Mode TEMoo
M2 <1.2
Beam Diameter 2.0+/-0.2 mm 1m Measured at window
Beam Full Divergence Angle <0.5 mrad
Beam Circularity >0.9
Pulse-to-Pulse Stability <3 % RMS
Average Power Stability <5 % RMS/8hr
Beam-Pointing Drift <25 µrad/℃
Polarization Ratio >100:1
Polarization Orientation Horizontal
Operating Temp. & RH 10 to 35
<80

%

Storage Temp. & RH -20 to 65
<90

%


Electricity Requirement

Power Consumption

100-240
50/60
<800
VAC
Hz
W
Single phase
Warranty 12 months






Mini uv laser marking machine Samples



3w UV Laser Marking Machine For Glass Plastic Non Metal Material 1



Mini uv laser marking machine packing

3w UV Laser Marking Machine For Glass Plastic Non Metal Material 2



FAQ



Q1: What is packaging and will it protect the product?
A: We have 3 layers of packaging. The exterior uses a fumigation-free wooden box. In the middle of the machine, the machine is covered with foam to prevent the machine from shaking. For the inner layer, the machine is covered with a waterproof plastic film.



Q2: What is the delivery time?
A: Normally, the delivery time is within 5 working days after receiving the payment.



Q3: What payment terms can you accept?
Answer: We can make any payment, such as TT, LC, Western Union, Paypal, e-check, MasterCard, cash, etc.



Q4: How is the transportation method?
A: According to your actual address, we can ship by sea, air, truck or rail. We can also send the machine to your office according to your requirements.
