5W Separate Uv Laser Engraving Machine For Brittle Material

  • 5W Separate Uv Laser Engraving Machine For Brittle Material
  • 5W Separate Uv Laser Engraving Machine For Brittle Material
Place of Origin SHENZHEN
Brand Name Riselaser
Certification CE
Model Number RL-UV5
Minimum Order Quantity 1 SET
Price NEGOTIATION
Packaging Details Wooden Case
Delivery Time 5-9 working days
Payment Terms T/T, Western Union
Supply Ability 50 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 5W UV Laser Marking Machine Working Accuracy 0.01mm
Control Software EZCAD Warranty 1 Year
Laser Wavelength 355nm Marking Speed 0-7000mm/s
Certificate CE Color Silver,Blue
High Light

5W Uv Laser Engraving Machine

,

355nm Uv Laser Engraving Machine

,

5W uv laser engraver
Leave a Message
Product Description

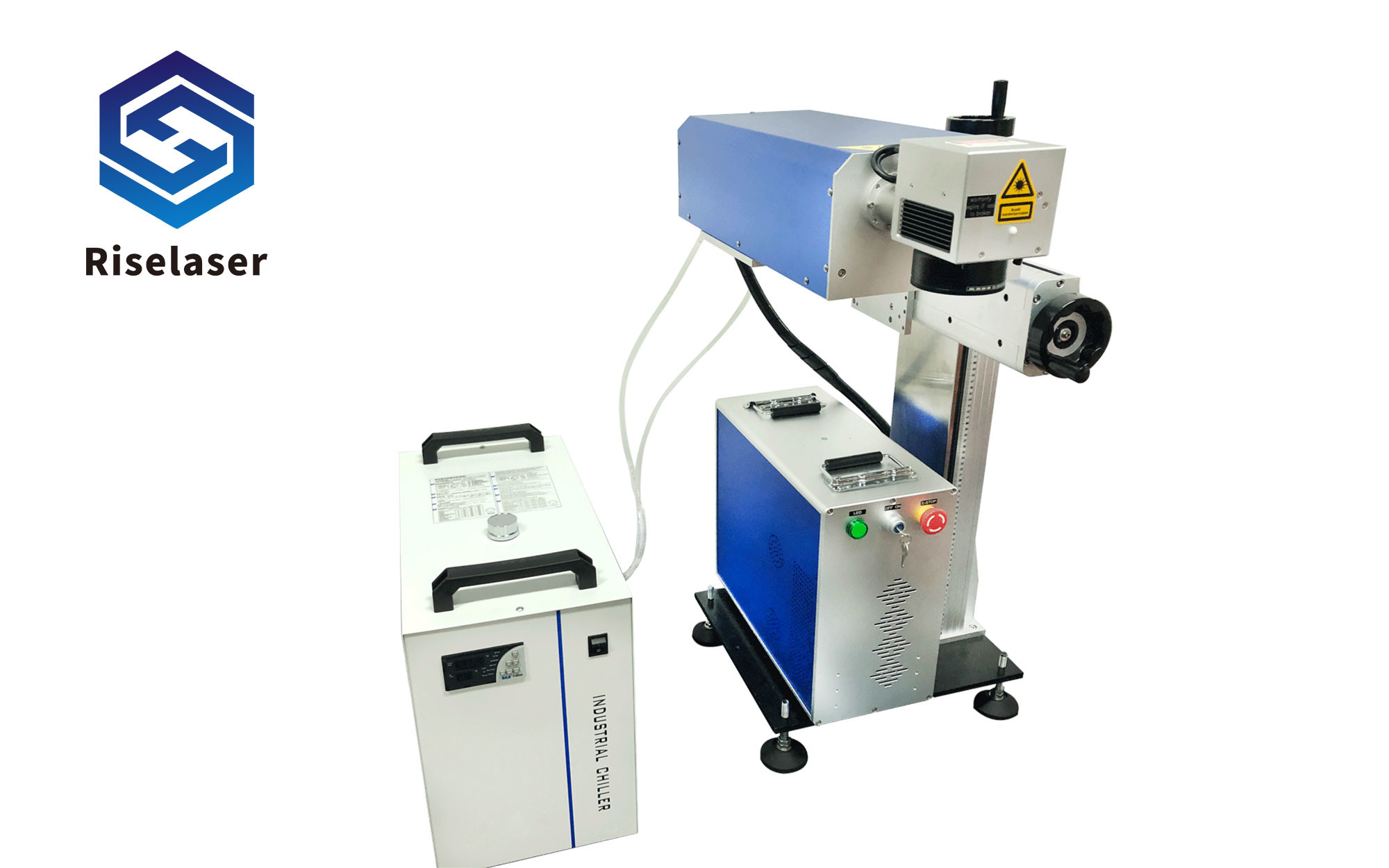

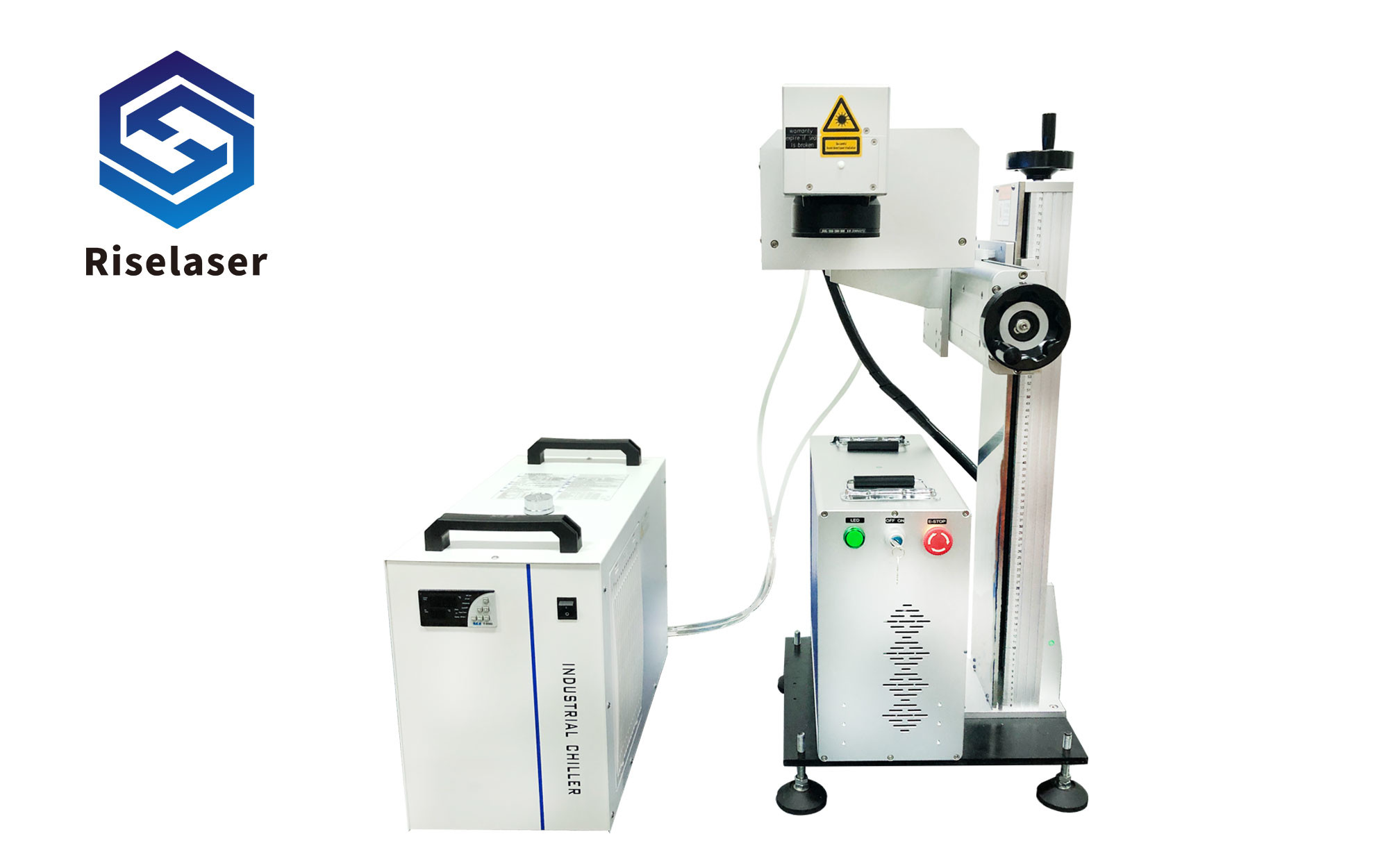

5W Separate Uv Laser Engraving Machine For Brittle Material



Product Features

1. Split and portable, occupy small space
2. Low power consumption
3. High power water chiller
4. Double red light focus, precise focus





Product Parameter











RL-UV3

RL-UV5

Wavelength

355nm

355nm

Output power

>3W@30KHz

>5W@40KHz

Maximum pulse energy

0.1mJ@30KHz

0.12mJ@40KHz

Pulse Repetition Frequency

1-150KHz

1-150KHz

Pulse duration

<15ns@30KHz

<18ns@40KHz

Average power stability

<3%

<3%

Spatial mode

TEM00 (M²< 1.5)

TEM00 (M²< 1.5)

Polarization ratio

>100:1 Horizontal

>100:1 Horizontal

1/e2 beam diameter at output

0.7mm

0.8mm

Beam circularity

>90%

>90%







Advantages

1. Cold processing marking: no thermal effect and material burning problem.

2. Good beam quality

3. Strong resistance to external temperature interference

4. Stable performance and fast marking speed





Applications



1. Laser Marking

2. Micro hole machining

3. Ceramic cutting

4. Thin film etching

5. Wafer cutting

5W Separate Uv Laser Engraving Machine For Brittle Material 0

5W Separate Uv Laser Engraving Machine For Brittle Material 1







Certifications

5W Separate Uv Laser Engraving Machine For Brittle Material 2

Packaging & Shipping

5W Separate Uv Laser Engraving Machine For Brittle Material 3



FAQ

Q1: I knew nothing about this machine, what kind of machine should I choose?
A1: Just tell us what you want to deal with, then we will give you suggestion and perfect solutions.
Q2: What should I do if I don’t know how to use it?
A2: We will send you a video and an English manual attached to the machine. If you still have some doubts, please do not hesitate to contact us.
Q3: If something goes wrong with this machine during warranty period, what should I do?
A3: We will supply free parts during warranty period if the machine had some problems.
