800W 200kHz 7000mm/s UV Laser Marking Machine With Keyboard

  • 800W 200kHz 7000mm/s UV Laser Marking Machine With Keyboard
Place of Origin SHENZHEN
Brand Name Riselaser
Certification ISO9001:2008
Model Number RL-UV3
Minimum Order Quantity 1 SET
Price NEGOTIATION
Packaging Details Wooden Case
Delivery Time 5-9 working days
Payment Terms T/T, Western Union
Supply Ability 20 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3W UV Laser Marking Machine Working Accuracy 0.01mm
Control Software EZCAD Warranty 1 Year
Laser Wavelength 355nm Marking Speed 0-7000mm/s
Certificate CE Color Silver,red
High Light

7000mm/s UV Laser Marking Machine

,

200kHz UV Laser Marking Machine

,

800W Portable Laser Marking Machine
Leave a Message
Product Description

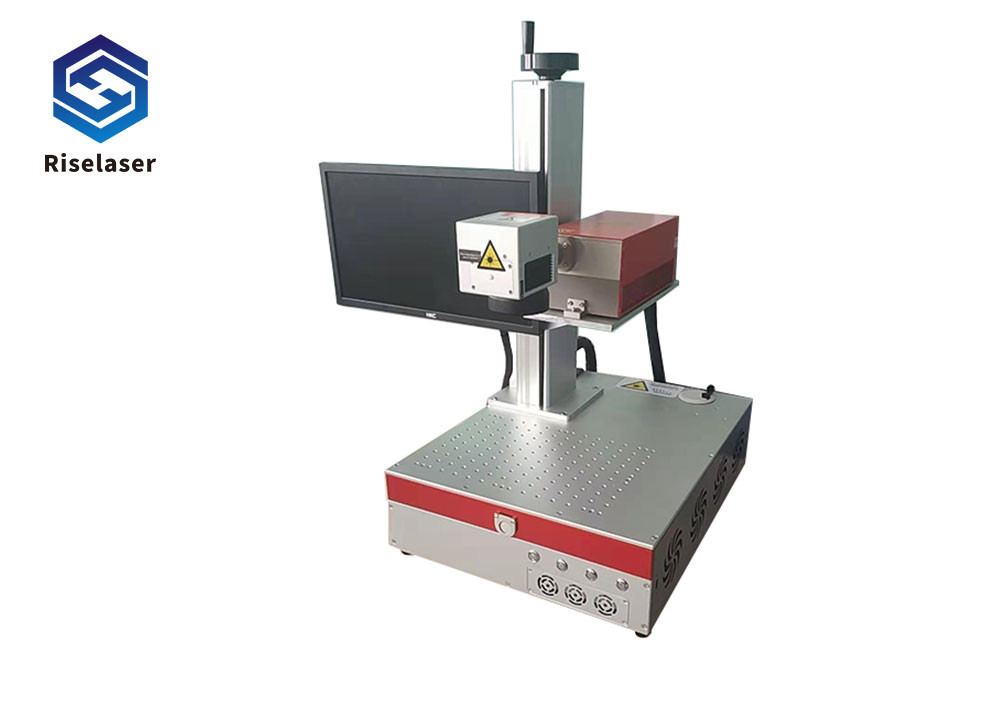

Portable Desktop UV Laser Marking Machine with Keyboard



Product Description

RL-UV3 has a compact structure and is extremely convenient for installation and debugging. The built-in laser diode technology is used to avoid the influence of fiber jitter on the output laser. In addition, the beam quality is excellent enough to ensure the stability and reliability of mass production.

Product Parameter (Specification)

No Parameter Details
1 Model RL-UV 3
2 Laser wavelength 355nm
3 Average power > 3W@40kHz
4 Pulse Repetition Rate 20kHz-200kHz
5 Pulse Width ＜18ns@ 40kHz
6 Pulse to pulse stability ＜3%rms
7 Beam-pointing Stability 25μrad
8 Beam Roundness ＞90%
9 Beam diameter 0.7±0.1mm
10 Beam Divergence ＜2mrad
11 Ambient temperature 0-40℃
12 Cooling Air cooling
13 Power consumption ＜800W

Product Features
1. Cold processing marking: Zero processing heat-affected zone, there will be no thermal effect and no material burning problem.

2. Fast marking speed and high efficiency; the whole machine has the advantages of stable performance and low power consumption.

3. Portable: small size and light weight.

4. Convenient Operation:Convenient data processing with dedicated laser marking software.

5. High processing accuracy: Due to the extremely small focus spot of the ultraviolet laser, marking is more refined, suitable for ultra-fine marking environment.



Applications

UV laser marking machine ink printing is pollution-free, so it has a wide range of applications: flexible PCB board marking and scribing; silicon wafer micro-hole and blind hole processing; LCD liquid crystal glass QR code, glassware surface drilling, marking on the metal surface, plastic buttons, electronic components, etc.

800W 200kHz 7000mm/s UV Laser Marking Machine With Keyboard 0

800W 200kHz 7000mm/s UV Laser Marking Machine With Keyboard 1



800W 200kHz 7000mm/s UV Laser Marking Machine With Keyboard 2



Certifications

800W 200kHz 7000mm/s UV Laser Marking Machine With Keyboard 3

Packaging & Shipping

800W 200kHz 7000mm/s UV Laser Marking Machine With Keyboard 4



FAQ

Service Time 24 hours waiting for you
Fast Response 2 hours within our work time,12 hours get off work
Warranty 1 year. Free parts replacement in normal operation
MOQ 1 piece, You can mix your order freely
