Precious Laser Cutting And Engraving Machine , Advertising Fiber Cutting Machine

Place of Origin Shenzhen
Brand Name Rise Laser
Certification ISO9001:2008
Model Number RL-5050
Minimum Order Quantity 1 unit
Price negotiation
Packaging Details Wooden Case
Delivery Time 7-15 days
Supply Ability 2000 units per month
Product Details
Product Name Precious Fiber Laser Cutter For Advertising Industry Application 5050 Laser Power 300w To 800w
Working Area 500*500mm Max Moving Speed 60m/min
Positioning Accuracy ± 0.01-0.03 Powe Supply 3×380V±10% 220V±10%
Package Wooden Case Warranty 1 Year
High Light

mini cnc laser cutter

,

small cnc laser cutting machine

Leave a Message
Product Description

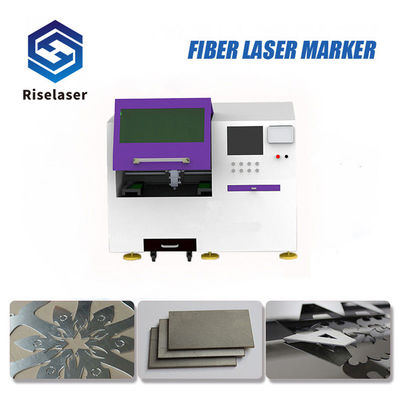

Precious Fiber Laser Cutter for Advertising Industry Application 5050



Precious metal precision laser cutting machine adopts Herolaser original double precious metal recycle system. Imported fiber laser source, high-profile cutting head, high precision rotary servo motors, with professional laser cutting control software and automatic following focalizing system, it can fully automatic adjust the focus position following the heights of bent cutting work piece to ensure the cutting quality.
Automatic feeding system and bangle,rings rotary cutting system can be optional.





Model Features
Original recycle system- full sealed double protection, cavity inner cut, recycle rate is up to 99.95%
High cutting precision, speed fast, narrow cutting seam, little heat-affected area, cutting surface smooth, no burrs.
10 years service life of fiber laser source.



1.Configuration

# Item Specification Brand Remark
1 Laser Source 800W Maxphotonics
2 linear motor
3 Optical grating resolution 0.5μm Spain



4

Driver   servotronix
5 Z axis Screw module group
6 Laser cutting head BT230
7 Precision Precious Laser Cutting And Engraving Machine , Advertising Fiber Cutting Machine 0linear guide rail   Hiwin
8 Marble 1800*1350*200 Shandong
9 Organ cover Standard
10 Machining material Standard

aviation aluminum-alloy





2.Parameters

Model RL5050
Working size 500×500(mm)
Max. Acceleration 1.2g







X AXIS

Max. Moving speed 60m/min
Route 500mm
Positioning accuracy ±0.01mm
Repeatition accuracy ±0.004mm







Y AXIS

Max. Moving speed 60m/min
Route 500mm
Positioning accuracy ±0.01mm
Repeatition accuracy ±0.004mm
Z AXIS Route 100mm



3. Working condition

1 Working temperature -10℃~45℃
2 Relativede Humidity <90% no condenser
3

Environment

Good ventilation, no vibration
4 Power supply 3×380V±10% 220V±10%
5 Power frequency

50Hz





4.Control system:

The use of professional PC industrial computer operation, graphical interface, easy to operate, professional cutting control software can freely design a variety of graphics and text, real-time processing, support CAD, CorelDraw and other professional mapping software.

. High-quality industrial computer control operation

. High efficient, easy to operate CNC cutting system

.  Z axis automatic tracking function



5.Applications display
Applied to various metal sheet cutting and punching and other kinds of laser processing, such as hardware, consumer electronics components, various instruments, sheet metal processing industrial cutting; precision cutting and drilling for various metal materials.
