Accurate Small Cnc Laser Cutting Machine , Mini Cnc Laser Cutter For Glasses

Place of Origin Shenzhen
Brand Name Rise Laser
Certification ISO9001:2008
Model Number RL-5050
Minimum Order Quantity 1 unit
Price negotiation
Packaging Details Wooden Case
Delivery Time 7-15 days
Supply Ability 2000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Fiber Laser Cutting Machine Laser Power 500w/800w
Working Area 500*500mm Max Moving Speed 60m/min
Positioning Accuracy ± 0.01-0.03 Powe Supply 3×380V±10% 220V±10%
Package Wooden Case Warranty 1 Year
High Light

fiber cutting machine


small cnc laser cutting machine

Leave a Message
Product Description

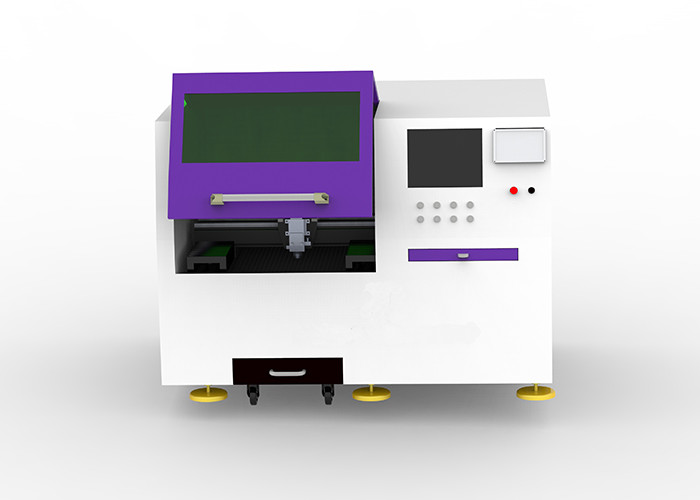

High Precision 800W Fiber Laser Cutting Machine Mini CNC Laser Cutter


Products Description:

RL5050 precision laser cutting machine is designed and made by RISE LASER. Adopted with leading laser technology for thin sheet metal application. The machine is combined with marble and Cypcut laser cutting system. With Integrated designing, dual gantry linear motor driving system, friendly interface and long term stable working.


Main Features:

1. Spare parts:Servo motor from France, reduction gear and guide rail,etc are imported with original packaging.
2. Accuracy:Its speed and accuracy are guaranteed by using gear grinding with high precision,imported guide rail and laser cutting head under strict assembly.
3. Cutting:The laser cutting head which is imported with original packaging coordinates with spare parts which have high speed and precision to bring superb cutting quality.
4. The laser generator can be made in China or imported according to request from customers.Both two types can be maintained freely.



1. Widely used in glasses, electronics, appliances and other precision machinery,hardware, microelectronics industry.

2.600 ° heat treatment and 24 hours with the furnace cooling, 8 meters gantry milling finishing, precision welding protection of carbon dioxide, to ensure the normal use for 20 years without deformation.

3. Rail installation with precision collimator test, the accuracy is less than 0.01mm.
4. Powerful grinding screw drive.
5. High precision, speed, cutting surface smooth.
6. Configure Yaskawa servo system inertia in driving high accuracy.
7. Fully enclosed protective cover.


Accurate Small Cnc Laser Cutting Machine , Mini Cnc Laser Cutter For Glasses 0


Technical Parameter:

Processing range ( L × W) 500mm * 500mm
Laser output 300W / 500W /800W/ 1000W/1500W (optional)
Dimensions 1700 * 1190 * 1850mm
Cutting material thickness 0.1-2mm (depending on material)
Repeat positioning accuracy ± 0.01mm / m
Maximum speed 40m / min
Maximum Acceleration 0.5G
Machine weight 800kg
Machine Operating temperature 0 ℃ -40 ℃
Transmission grinding precision screw drive



Application of 800W Fiber Laser Cutting Machine Mini CNC Laser Cutter:

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Application Industries: Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

Accurate Small Cnc Laser Cutting Machine , Mini Cnc Laser Cutter For Glasses 1


Cutting parameter:

Power(W) Material Thickness(mm) Cutting speed(m/min) Gas
800 Stainless steel 1 8-9 N2
2 5-6 N2
3 1.8-2 N2
4 1.2-1.3 N2
800 Carbon steel 1 8-10 O2
2 4-5 O2
3 2.8-3 O2
4 1.4-1.8 O2
5 1.2-1.5 O2
6 0.9-1.1 O2
8 0.6-0.7 O2
