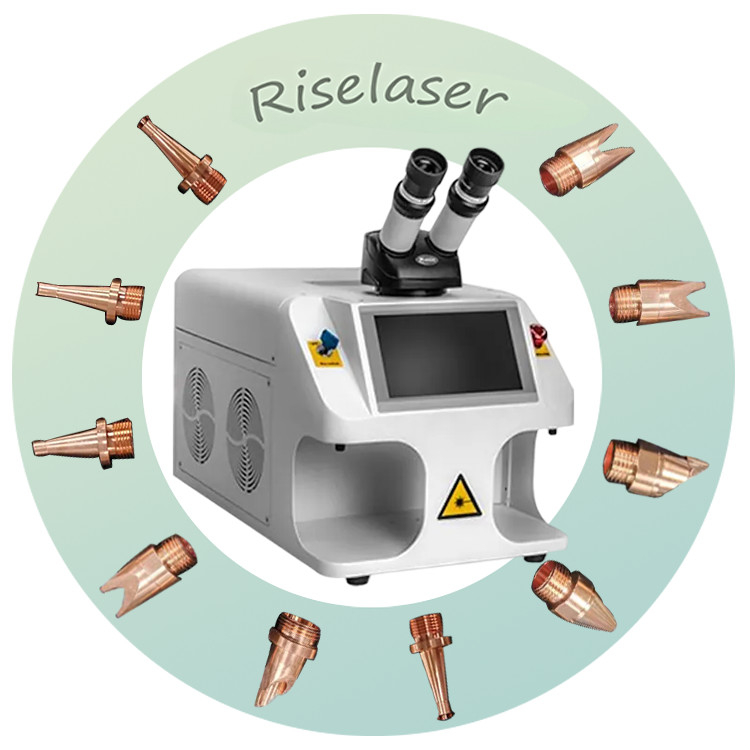

High Precision 60W Mini Spot Welder 40J 1064nm YAG Laser Touch Control

  • High Precision 60W Mini Spot Welder 40J 1064nm YAG Laser Touch Control
  • High Precision 60W Mini Spot Welder 40J 1064nm YAG Laser Touch Control
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-Y60
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Usage Metal Welding
Laser Source Brand MAX Weight 60 KG
Operating Mode Touch Control Laser Frequency 1.0~10.0Hz Continuously Adjustable
Aiming And Positioning CCD And Microscope Spot Diameter Adjusting Scope ±3.0mm
Maximum Laser Pulse Energy 40J
High Light

Jewelry Mini Spot Welder

,

1064nm YAG Laser Mini Spot Welder

,

Touch Control Laser Welding Machine
Leave a Message
Product Description

60W Mini Spot Welder YAG High Precision Laser Welding Machine MAX 24K Gold Silver Jewelry



Advantages

1.For the repair and manufacturing of jewelry, timepieces, and eyewear:

2. The process of welding can be applied to 14k gold.

3.Specifically designed for small jewelry stores, with a recommended daily usage of less than one hour.

4.Enjoy the option of customization: personalize your machine by adding your own logo or designing its appearance.

5.The entire machine is covered by a one-year warranty, along with online technical support available after purchase.

6.No minimum order quantity is required, and wholesale pricing is available. Please reach out to us for wholesale inquiries.

High Precision 60W Mini Spot Welder 40J 1064nm YAG Laser Touch Control 0High Precision 60W Mini Spot Welder 40J 1064nm YAG Laser Touch Control 1

High Precision 60W Mini Spot Welder 40J 1064nm YAG Laser Touch Control 2

Specification



Laser System
RL-Y60
Laser Type
1064nm YAG Laser
Nominal Laser Power
60W
Beam Diameter
0.5-3.0mm
Pulse Width
0.1-15ms
Frequency
1.0~10.0Hz Continuously Adjustable
Maximum Laser Pulse Energy
40J
Host Power Consumption
≤2.5KW
Cooling System
Build in Water Cooling
Aiming and Positioning
Microscope + CCD Camera System
Operating Mode
Touch Control
Pump Source
Single lamp
Display Touch Screen
10X high quality colorful CCD
Electrical Connection Values
AC 110V/220V ± 5%, 50HZ / 60HZ
Machine Dimension
RL-Y60: L51CM×W29.5CM×H42CM
Wooden Package Dimension
RL-Y60: L63CM*W52CM*H54CM
Machine Net Weight
35KG
Machine Gross Weight
40KG
Operating Environmental Temp
≤45℃
Humidity
< 90% non-condensing
Application
Welding and repairing all kinds of jewelry and accessories

FQA

1.How long is the warranty period?

Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.

2.How long is the cable?

Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.

3.How thick can 1500w-3000W be welded

1-8mm thick metal materials.

4.Is there a wire feeder?

We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.

5.Can aluminum and galvanized steel be welded?

Yes, it can.

6.Packaging

All our machines are packed in wooden boxes.

7.Language interface

Supports language customization, etc. You can also translate and insert to software.
