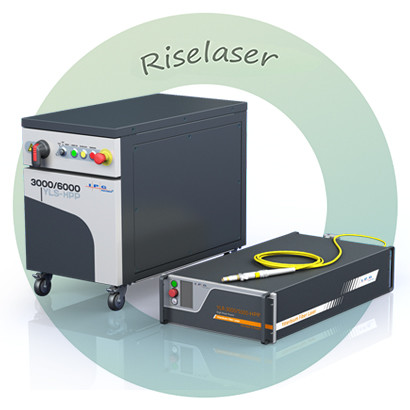

IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service

  • IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service
  • IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service
Place of Origin Germany
Brand Name IPG
Certification CE,ISO9001:2008
Model Number IPG YLR/YLR-U-K
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Carton Case
Delivery Time 7 Work Days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word Ipg Fiber Laser Source Central Wavelength Range, Nm 1070 ±5
Mode Of Operation CW Maximum Average Power*, KW 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 20, 25
Power Tunability, % 10-100 Core Diameters 20um/100um/50um
Output Fiber Core Diameter, μm 50, 100, 150, 200 Cooling Way Water Cooling
Application Laser Cutting And Welding Application 2 For 3D Printer
High Light

YLR YLS Optical Fiber Laser Source

,

IPG Optical Fiber Laser Source

,

YLR YLS Optical Laser Source
Leave a Message
Product Description

IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service



Optical fiber laser source IPG YLR fiber laser source with global after sales service



Why choose IPG optical fiber laser source



Continuous Wave (CW) Lasers
IPG offers a wide variety of continuous wave (CW) fiber lasers that can be integrated into laser systems, ranging in power from 10 W to tens of kilowatts. The main use of CW lasers is to keep the beam on for long periods of time for continuous processing. However, if desired, IPG CW lasers can also be modulated at frequencies from a few kHz to tens of kHz to provide pulsed laser processing in the millisecond to microsecond pulse duration range.

IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service 0



Optical Characteristics



Item data
Central Wavelength Range, nm 1070 ±5
Mode of Operation CW/ Modulated
Modulation Frequency, kHz 0-5
Maximum Average Power, kW 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 20, 25
Power Tunability, % 10-100
Power Stability, % ±2
Output Fiber Core Diameter***, μm 50, 100, 150, 200
Beam Parameter Product, mm × mrad <2.2 @ 50 μm, 2.0 typ.
<4.0 @ 100 μm, 3.3 typ.
<6.0 @ 150 μm, 5.0 typ.
<8.0 @ 200 μm, 6.0 typ.





General Characteristics

YLS-U Cabinet Dimensions (W×D×H), mm
 1-3 kW: 430 × 804 × 568
4-6 kW: 430 × 804 × 702
7-10 kW: 430 × 804 × 900
YLS-U Cabinet Weight, kg 1-3 kW: <140
4-6 kW: <200
7-10 kW: <250
YLS-CUT Cabinet Dimensions (W×D×H), mm 1-5 kW: 780 × 804 × 556
6-10 kW: 1005 × 804 × 556
12-25 kW: 1005 × 804 × 806
YLS-CUT Cabinet Weight, kg 150-440
Supply Voltage, 3-phase, VAC 400-480
Wall-plug Efficiency, % >40



Application

IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service 1

IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service 2



Applications

IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service 3



Success projects

IPG YLR YLS Optical Fiber Laser Source With Global After Sales Service 4
