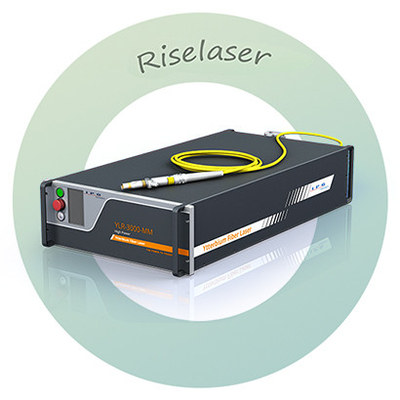

YLR IPG Fiber Laser Power Source For Laser Cutting And Laser Welding

  • YLR IPG Fiber Laser Power Source For Laser Cutting And Laser Welding
  • YLR IPG Fiber Laser Power Source For Laser Cutting And Laser Welding
Place of Origin Germany
Brand Name IPG
Certification CE,ISO9001:2008
Model Number IPG YLR/YLR-U-K
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Carton Case
Delivery Time 7 Work Days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word Ipg Fiber Laser Source Central Wavelength Range, Nm 1070 ±5
Mode Of Operation CW Modulation Frequency, KHz 0-5
Maximum Average Power*, KW 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 20, 25 Power Tunability, % 10-100
Power Stability**, % ±2 Output Fiber Core Diameter, μm 50, 100, 150, 200
Cooling Way Water Cooling 1-3 KW Weight <140
Application Laser Cutting And Welding Application 2 For 3D Printer
High Light

IPG Fiber Laser Power Source

,

YLR IPG Laser Source

,

YLR Fiber Laser Power Source
Leave a Message
Product Description

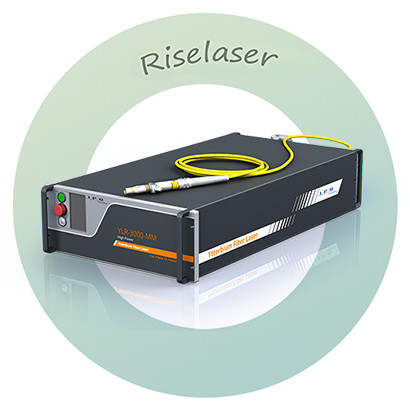

YLR IPG Fiber Laser Power Source For Laser Cutting And Laser Welding



YLR IPG fiber laser source for laser cutting and laser welding 1000w 2000w 3000w 4000w



Advantages of IPG Fiber Lasers


IPG fiber lasers are the most compact and energy efficient lasers on the market, with added benefits including:

almost maintenance free
Reliable operation even in the harshest industrial environments with extreme vibration, dirt, humidity and temperature changes
Flexible beam delivery supports easy production integration
Widest range of output powers, wavelengths and modes of operation available
High flexibility in selecting operating parameters.
Energy conversion efficiency 5-10 times higher than conventional CO2 lasers
45% to 50%+ electrical-to-optical conversion efficiency exceeds any alternative laser technology
This unrivaled combination of benefits results in maximum productivity and the fastest return on investment, making IPG fiber lasers the industry standard and the customer's choice for many material processing applications.

YLR IPG Fiber Laser Power Source For Laser Cutting And Laser Welding 0



Optical Characteristics



Item data
Central Wavelength Range, nm 1070 ±5
Mode of Operation CW/ Modulated
Modulation Frequency, kHz 0-5
Maximum Average Power, kW 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 20, 25
Power Tunability, % 10-100
Power Stability, % ±2
Output Fiber Core Diameter***, μm 50, 100, 150, 200
Beam Parameter Product, mm × mrad <2.2 @ 50 μm, 2.0 typ.
<4.0 @ 100 μm, 3.3 typ.
<6.0 @ 150 μm, 5.0 typ.
<8.0 @ 200 μm, 6.0 typ.





General Characteristics

YLS-U Cabinet Dimensions (W×D×H), mm
 1-3 kW: 430 × 804 × 568
4-6 kW: 430 × 804 × 702
7-10 kW: 430 × 804 × 900
YLS-U Cabinet Weight, kg 1-3 kW: <140
4-6 kW: <200
7-10 kW: <250
YLS-CUT Cabinet Dimensions (W×D×H), mm 1-5 kW: 780 × 804 × 556
6-10 kW: 1005 × 804 × 556
12-25 kW: 1005 × 804 × 806
YLS-CUT Cabinet Weight, kg 150-440
Supply Voltage, 3-phase, VAC 400-480
Wall-plug Efficiency, % >40



Application

YLR IPG Fiber Laser Power Source For Laser Cutting And Laser Welding 1

YLR IPG Fiber Laser Power Source For Laser Cutting And Laser Welding 2
