Riselaser spot laser welding machine 60w 100w jewellery laser soldering machine

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, ce
Model Number RL-Y60
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Supply Ability 100 SET/WEEK
Product Details
Machine Model Spot Laser Welding Machine Key Word Jewellery Laser Soldering Machine
Laser Power 30W 60W 80W 100W 200W Observation System 10X Microscope Or HD CCD
Pulse Energy 40J/60J/90J Peak Pulse Power 7.5kw
Power Supply 220VAC 10% / 50-60HZ Application Jewelry, Watch, Glasses, Dental Welding
Machine Weight 42kg Machine Fuction Gold/silver Soldering
Leave a Message
Product Description

Riselaser spot laser welding machine 60w 100w jewellery laser soldering machine





Machine Feature:feature
• Weld any workpiece with high precision/confidence
• Advanced cooling system
• Intuitive touch screen interface / very easy to operate
• Microscopic welds / easily weld small workpieces
• 10X Stereo Microscope / Close observation of workpieces is clear
• Custom welds/operate welds to your standards
• Openings in the weld chamber are larger than normal/bigger access allows you to work more freely
• Pulse shape settings allow configuring how the laser works on different types of metals/welds Works on any metal
• Superior, efficient component/cooler operation reduces stress on critical wear components and greatly reduces maintenance
• Efficient optics enable higher average power output with fewer joules/efficient running machine
• User friendly, touch screen control/set welding parameters is simple and quick

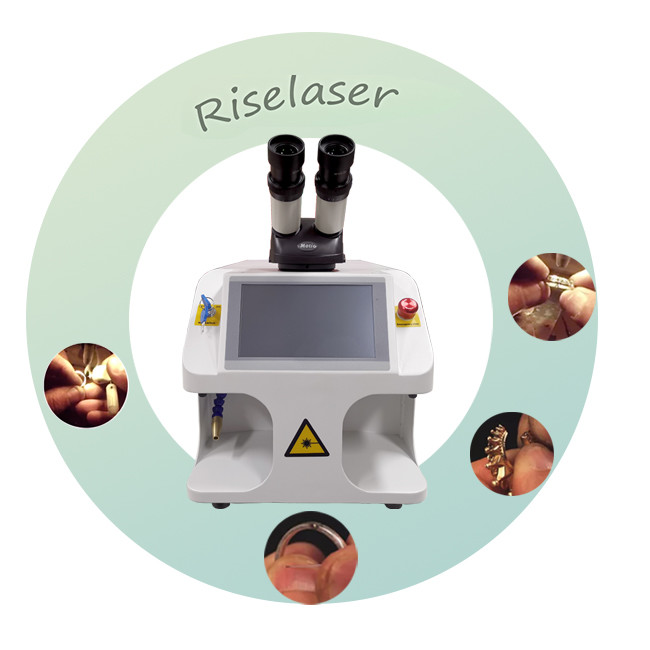

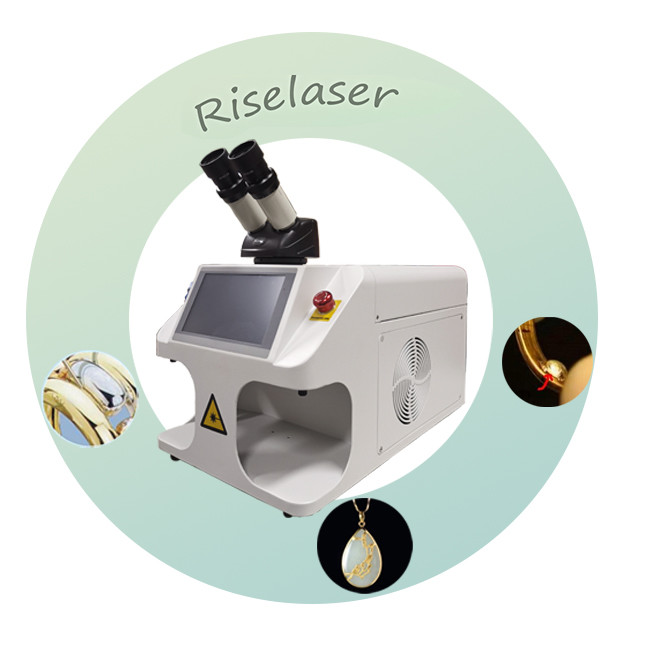

Riselaser spot laser welding machine 60w 100w jewellery laser soldering machine 0Riselaser spot laser welding machine 60w 100w jewellery laser soldering machine 1



Machine dimension of 60w

Riselaser spot laser welding machine 60w 100w jewellery laser soldering machine 2









What material the small jewelry laser welding machine works?



This welding application is great for precious metals, which is why most jewelers in Australia use jewelry laser welding machines.

All traditional jewelry metals can be laser welded:

all base metals
Krakin
Sterling silver
titanium
palladium
platinum
Platinum is one of the most difficult metals in history to machine and repair, and one of the easiest to laser weld. It is also possible to weld dissimilar metals together, such as gold to platinum and sterling silver to gold.



Operating system supported languages: Chinese, Turkish, Arabic, English, Korean

1. Observation system: The observation system of this jewelry spot welding machine consists of a microscope and a built-in high-definition CCD camera. Users can choose one or both of them as the observation method according to their needs. Both can clearly observe the welding position of the workpiece, which is convenient for welding.

2. Adjustment of the CCD cross cursor: If the light spot is not in the center of the cross cursor in a very clear position of the CCD camera system, you can change the position of the cross cursor by clicking the middle position of the four cross cursors.​​​ the sides of the screen so that the solder joint is in the center of the cursor

3. For welding operations, first ensure that the machine has been turned on normally, put the workpiece into the sight of the observation system, and then slowly move to the clearest position of the observation system.
Point the cursor to the desired welding position, gently step on the foot switch, the machine has laser output for welding.


4. Parameter adjustment, focusing, after the first welding, the welding effect of the solder joint does not meet the requirements, and the parameters need to be adjusted again. Focusing (-3.0-+3.0) makes the welding effect meet the requirements, and will not repeat the welding in the future. Needs to be readjusted.







Specification



Size(mm) L51CM×W29.5CM×H42CM
Net weight 28KG
Total power 2KW
Rated power 60W
Laser frequency 1.0~15.0HZ continuously adjustable
Pulse Width 0.1~10.0MS grade adjustable
Aiming and positioning Built-in camera system 7-inch screen and microscope
Light spot 0.15~2.0mm
Water injection Automatic pumping
cooling method Water cooling





Welding Samples

Riselaser spot laser welding machine 60w 100w jewellery laser soldering machine 3
