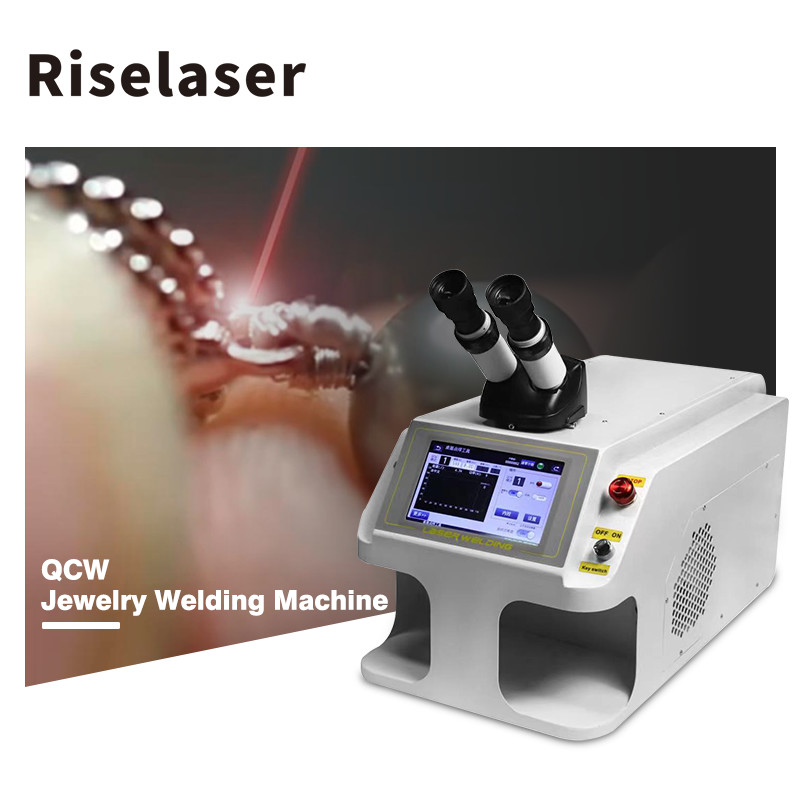

QCW Spot Laser Welding Machine With Fiber Laser For Jewelry Welding

  • QCW Spot Laser Welding Machine With Fiber Laser For Jewelry Welding
  • QCW Spot Laser Welding Machine With Fiber Laser For Jewelry Welding
  • QCW Spot Laser Welding Machine With Fiber Laser For Jewelry Welding
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-Q60/100
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machine Function Spot Laser Welding Machine Key Words QCW Fiber Laser
Operating Mode Touch Control Machine Dimension 55*30*43cm
Machine Weight 20KG Model Pulsed
Aiming And Positioning Microscope + HD Digital CCD Camera System Maximum Laser Pulse Energy 6J-10J
Applicaiton Welding Jewelry Electrical Connection Values AC220V ± 5%, 50HZ / 60HZ
High Light

QCW Spot Laser Welding Machine

,

Jewelry Spot Laser Welding Machine

,

QCW pulsed Jewelry Laser Welding Machine
Leave a Message
Product Description

QCW Spot Laser Welding Machine with fiber laser for Jewelry welding​





Product Main features

  • The first spot laser welding machine that using QCW pulsed laser
  • Unique air-cooled design, no need to add water to cool
  • Low energy consumption, no need to replace xenon lamps and crystal rods
  • Photoelectric conversion rate to 30%
  • No power attenuation within 3-5 years
  • Maintenance-free, basically no consumables
  • Service life of 100,000+ hours






Machine specification

Tech Data RL-Q60 RL-Q100
Laser Type QCW Fiber Laser
Material Customized
Laser Power ≥60w ≥100w
Pulse Energy 6J 10J
Frequency 50Hz
Pulse Width 0.5-50ms
Mode Pulse
Fluctuation ≤1.5%
Laser Spot 0.3-1.5mm
Cooling Air cooling
Power Consumption 300w 500w

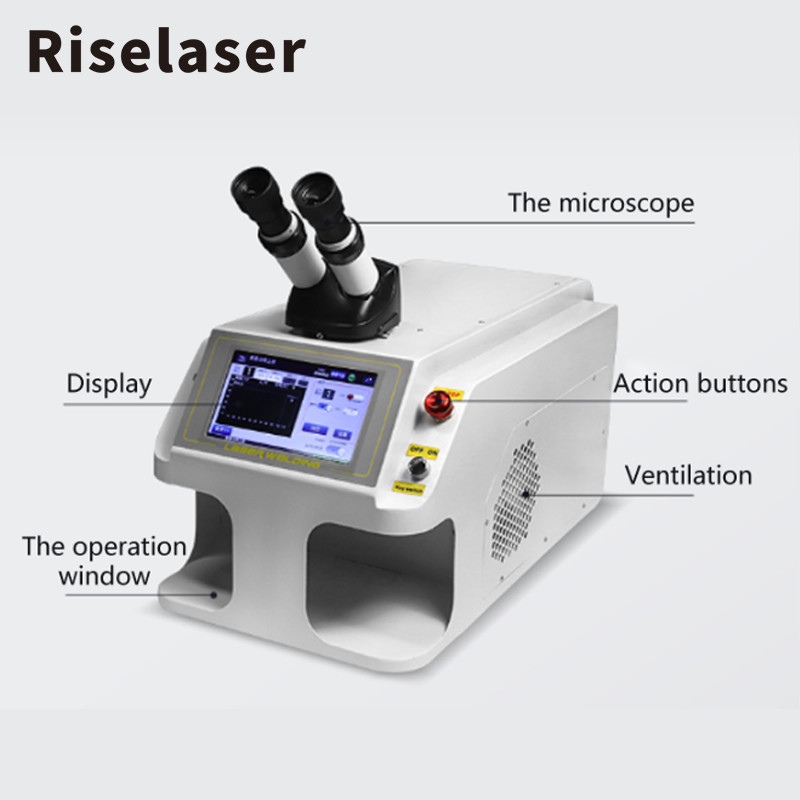

Main features of the machine



QCW series spot laser welding machine.
Instead of tranditional Xenon lamp and Crystal, this welder uses QCW pulsed fiber laser source with air cooling method. That's means no more need to maintace to replace the Xenon lamp, crystal or exchange the pure water. It's very convenient for jewelry repair, dental work and glasses welding.
