IPG Nanosecond Fiber Laser For Cutting Welding And Drilling

  • IPG Nanosecond Fiber Laser For Cutting Welding And Drilling
  • IPG Nanosecond Fiber Laser For Cutting Welding And Drilling
Place of Origin Shenzhen, China
Brand Name Raycus
Certification CE,ISO9001:2008
Model Number IPG YLS-U/CUT
Minimum Order Quantity 1 PCS
Price Negotiable
Packaging Details Carton Case
Delivery Time 7 Work Days
Payment Terms L/C, T/T, Western Union, D/P
Supply Ability 2000 units per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Word IPG Nanosecond Fiber Laser Central Wavelength Range, Nm 1070 ±5
Mode Of Operation CW/ Modulated Modulation Frequency, KHz 0-5
Maximum Average Power*, KW 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 20, 25 Power Tunability, % 10-100
Power Stability**, % ±2 Output Fiber Core Diameter, μm 50, 100, 150, 200
Cooling Way Water Cooling 1-3 KW Weight <140
High Light

IPG Technology Nanosecond Fiber Laser

,

ISO9001 Nanosecond Fiber Laser
Leave a Message
Product Description

IPG nanosecond fiber laser for cutting welding and drilling



The YLS series lasers were developed for demanding cutting applications. Available in the smallest form factor on the market, these lasers can be easily integrated into cutting machines. The laser is packaged in a hermetically sealed cabinet containing an internal dryer, allowing it to be used in the harshest production environments.
YLS-CUT and YLS-U incorporate the latest improvements in IPG technology in the design of diode modules, fiber optic modules, digital power supplies and digital control electronics, resulting in unparalleled reliability and improved control flexibility, stability and accuracy . The new control system allows for integrated control of the laser and process subsystems.

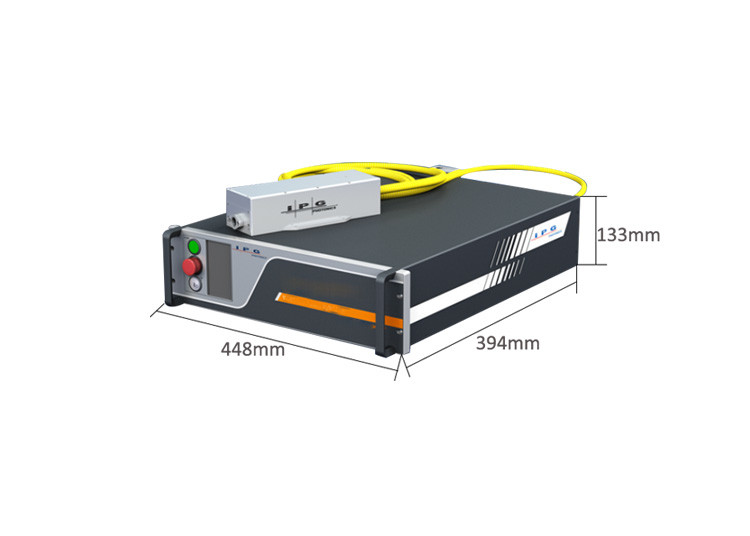

IPG Nanosecond Fiber Laser For Cutting Welding And Drilling 0



Optical Characteristics



Item data
Central Wavelength Range, nm 1070 ±5
Mode of Operation CW/ Modulated
Modulation Frequency, kHz 0-5
Maximum Average Power, kW 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 15, 20, 25
Power Tunability, % 10-100
Power Stability, % ±2
Output Fiber Core Diameter***, μm 50, 100, 150, 200
Beam Parameter Product, mm × mrad <2.2 @ 50 μm, 2.0 typ.
<4.0 @ 100 μm, 3.3 typ.
<6.0 @ 150 μm, 5.0 typ.
<8.0 @ 200 μm, 6.0 typ.





General Characteristics

YLS-U Cabinet Dimensions (W×D×H), mm
 1-3 kW: 430 × 804 × 568
4-6 kW: 430 × 804 × 702
7-10 kW: 430 × 804 × 900
YLS-U Cabinet Weight, kg 1-3 kW: <140
4-6 kW: <200
7-10 kW: <250
YLS-CUT Cabinet Dimensions (W×D×H), mm 1-5 kW: 780 × 804 × 556
6-10 kW: 1005 × 804 × 556
12-25 kW: 1005 × 804 × 806
YLS-CUT Cabinet Weight, kg 150-440
Supply Voltage, 3-phase, VAC 400-480
Wall-plug Efficiency, % >40



Application

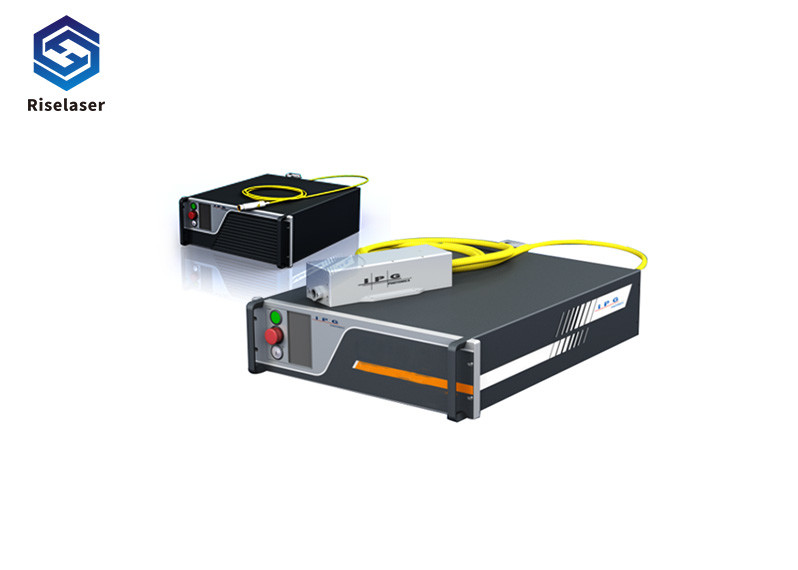

IPG Nanosecond Fiber Laser For Cutting Welding And Drilling 1

IPG Nanosecond Fiber Laser For Cutting Welding And Drilling 2
