MINI 200W Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Soldering

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE, FDA
Model Number RL-Y200
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Supply Ability 100 SET/WEEK
Product Details
Laser Source Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Pump Source Single Lamp
Laser Beam Diameter 0.15~2.0 Mm Machine Adjustable Beam Diameter ±3.0 Mm
Water Tank Capacity 13L (Distilled Water Or Pure Water) Pulse Width 0.1-20 Ms
High Light

200W Jewelry Laser Welding Machine

,

20ms Jewelry Laser Welding Machine

,

200W jewelry laser welder

Leave a Message
Product Description

MINI 200W Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Soldering

This welding machine is specially developed for laser welding of jewelry, mainly used for punching and spot welding of gold and silver jewelry. Laser spot welding is an important aspect of the application of laser processing technology. The spot welding process is heat conduction, laser radiation heats the surface of the workpiece, and the surface heat diffuses into the interior through heat conduction, and the workpiece is melted through control. The width, energy, peak power, and repetition frequency of the laser pulse that forms a specific molten pool. Because of its unique advantages, it is widely used in the production process of gold and silver jewelry and the welding of micro-small parts

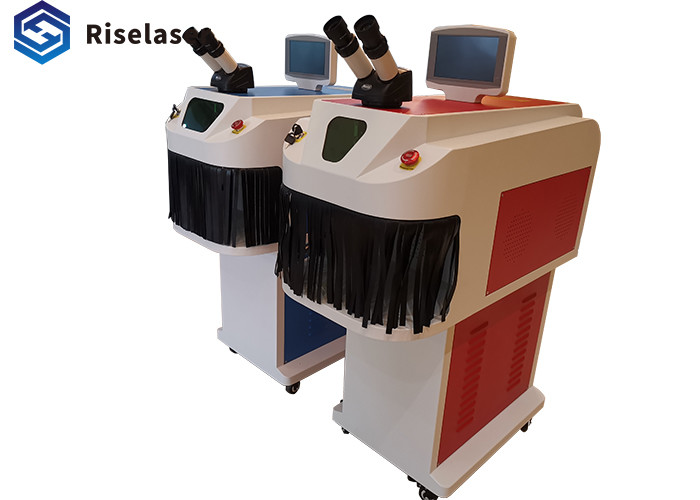

Jewelry laser welding machine for ring bangle bracelet platinum soldering Details
MINI 200W Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Soldering 0MINI 200W Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Soldering 1MINI 200W Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Soldering 2


Specification of jewelry laser soldering machine

Model Name
RL-Y200
Laser Type
1064nm
Laser Power
200W
Laser Engery
90J
Pulse Width
≤20ms
Pulse Frequency
≤30Hz
Positioning accuracy
+/-0.02mm
Size of Light Spot
0.2-2.0mm
Observing System
microscope



MINI 200W Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Soldering 3
Machine video


Samples
MINI 200W Jewelry Laser Welding Machine For Ring Bangle Bracelet Platinum Soldering 4

Application of 200W jewelry laser welding machine for ring bangle bracelet platinum

Jewelry laser spot welding machines are widely used in aviation, aerospace, sporting goods, jewelry, golf clubs, medical equipment, aluminum alloy dentures, instrumentation, electronics, machining, automotive and other industries, especially suitable for perforating gold and silver jewelry , Welding of spot welds, inlaid force plates and claw foot parts


How to operate the jewelry laser welding machine for ring bangle bracelet platinum
Operating system support languages: Chinese, Turkish, Arabic, English, Korean

1. Observation system: The observation system of this jewelry spot welding machine consists of a microscope and a built-in high-definition CCD camera. Users can choose one or two of them as the observation method according to their needs. Both can clearly observe the welding position of the workpiece, which is convenient for welding.

2. Adjustment of the CCD cross cursor: If the CCD camera system is in a very clear position and the light spot is not in the center of the cross cursor, you can change the position of the cross cursor by clicking the four middle positions.​​​ On both sides of the screen, make the solder joints in the center of the cursor

3. For welding operation, first ensure that the machine is turned on normally, put the workpiece into the sight range of the observation system, and then slowly move to the clearest position of the observation system.
Aim the cursor at the desired welding position, gently step on the foot switch, the machine has laser output for welding.


4. Parameter adjustment and focus adjustment. After the first welding, the welding effect of the solder joints does not meet the requirements, and the parameters need to be re-adjusted. Adjust the focal length (-3.0-+3.0), so that the welding effect can meet the requirements, and the welding will not be repeated later. Need to be adjusted again.
