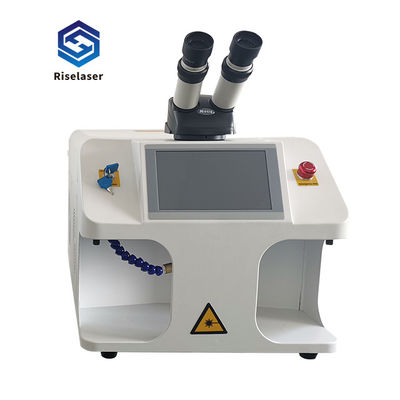

100W Power YAG Laser Spot Welding Machine for Various Application
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | YAG Laser Welding For Gold , Stainless Steel Repairing | Voltage | 110V/220V Optional |
|---|---|---|---|
| Warranty | 1 Year | Place Of Origin | Shenzhen, China (Mainland) |
| Brand Name | Riselaser | Dimensions | L*W*H : 510*295*395 Mm |
| Power(W) | 100W | Application | Jewelry Welding |
| Highlight | 60w laser beam welding machine,50HZ hand held laser welding machine |
||
Product Description
100W Laser Welding for Jewelry Repairing
Product Description
100w Laser Soldering Machine is specially designed for jewelry industries and electronics, which imported advanced technology and adopts high-quality accessories, the whole machine is more efficient, more durable, more convenient and environmental protection.
Features
One-button operation for automatic pumping,pwm continuously variable fans,touch screen integrated CCD display.
1. Small heat affected zone;
2. Does not lead to the product deformation welding the weld depth is big;
3. Welding firmly;
4. Melting fully,without trachoma,leave no trace repair;
5. Can work continuously 24 hour a day.
Technology Parameters
| Input Voltage | AC220±10% 50HZ |
| Laser Frequency | 1.0-10.0HZ Continuously Adjustable |
| Pulse Width | 0.1~10.0ms Grading Adjustable |
| Spot Adjustment Range | ±3mm |
| Laser Output Power | 100W |
| Aiming and Positioning | CCD and Microscope |
| Environment Temperature | ≤45℃ |
| Operation Method | Touch Control |
| Laser Wavelength | 1064nm |
| Installation Size of Display Touch Screen | 137*190mm |
| Size | L*W*H : 510*295*395 mm |
| Weight | About 40KG |
Applicable & Samples
Certifications
Customer Feedback
FAQ
Q1: Are you a factory or a trading company ?
A1: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q2: How was the machine guarantee?
A2: We offer you 12 months guarantee.
Q3: How can I use the machine, if I'm a new buyer?
A3: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q4: How do you control your quality?
A4: We'll test the machine before the shipment, and let it go through every corner to check the accuracy. Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days without stopping to ensure quality.
Q5: How can I know your machine is designed for my product?
A5: You can send us samples of your product and we test it on machine.
