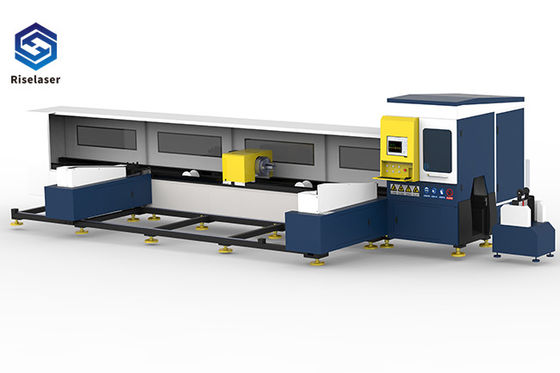

2000W Fiber Laser Cutting Equipment Gear / Rack Transmission For Round Tube
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Riselaser |
| Certification | CE / FDA |
| Model Number | RL-T3015-2000 |
| Minimum Order Quantity | 1 SET |
| Price | USD Per SET |
| Packaging Details | Wooden box with iron binding belt |
| Delivery Time | 20-30 Work Days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 2000 Units per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Fiber Laser Source | Cutting Area | Diameter 20-200mm |
|---|---|---|---|
| Cooling Mode | Water Cooling | Application | Applicable Material |
| Working Voltage | 380V/50Hz | Focus Method | Following And Automatic Adjust Focus |
| Transmission Method | Gear And Rack | Laser Power | 500W 1000W 2000W 4000W |
| Worktable Max Load | 1000kgs | X/Y Axis Positio | 0.05/1000mm |
| Cutting Speed | 0-60000mm/min | Class | Class 4 Laser |
| High Light | laser plate cutting machine,fiber laser cutting equipment |
||
Product Description
Fiber Laser Cutting Machine for Round Tube Cutting with 2000W Laser
Product Description:
| Laser Type | Fiber laser |
| Laser Brand | IPG / Maxphotonics |
| Laser Power | 500W (1000W / 2000W / 4000W optional) |
| Working area | 1500mmX3000mm 1300x2500mm Optional |
| Working Table | Fixed Working Table |
| Control System | PMAC full-closed loop servo control |
| Driving Mode | Double gear rack driving |
| Idle/Processing Speed | 72m/min / 36m/min |
| Positioning Accuracy | 0.05mm |
| Protection System | Enclosure protection |
| Laser Head | Precitec / Laser Mech |
| Power Supply | AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
| Total Power | 7KW~11KW |
| Floor Space | 5.6mX3.2m (fixed table) |
| Standard Collocation | Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc. |
Cutting Pipe Detail Specification:
| Cutting Length | 6000mm |
| Diameter | 20mm-200mm |
| Min remaining material | 250mm |
| X axis | 230mm |
| Y axis | 6500mm |
| Z axis | 175mm |
| Position accuracy | 0.05mm |
| Reposition accuracy | 0.03mm |
| Max moving speed for X axis | 40m/min |
| Max moving speed for Y axis | 500mm/s |
| Acceleration | 1 G |
| Size(L*W*H) | 12000*1800*2400mm |
| Weight | 3800kg |
Advantage and Features of RL-T3015-2000:
1) Advanced performance for different shape of tube
It can meet the demand of round tube, square tube and other profiled tube processing.
2) Different cutting shape
All kinds of graphics cutting can be done for the square tube.
3) Special shape cutting for round tube
Square hole, waist shaped hole made for round pipe.
4) Without no cutting slag
With special slag receiving process, guaranteeing no slag left inside of wall.
5) Specific fixture customized
Different requirement of fixture can be customized according to customer's demand.
6) Powerful computer system
With good nesting software and CNC system, it is simple and easy to learn for operators, improving materials utilization and reducing cost.
7) Clean cutting and environmentally friendly.
With advanced exhaust systems, it is easy and convenient to collect the waste materials during the cutting.
8) Customized design
Effective tube length can be customized from 100-6000mm.
9) With auto-loading and auto-unloading device
The material auto-loading and auto-unloading device can be integrated in the tubing machine, which improve the efficiency and reduce the workload greatly.
