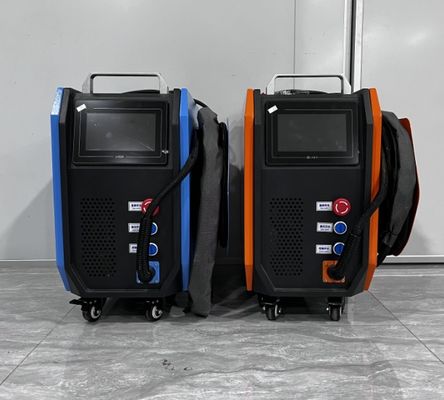

800W Air Cooling Handheld Laser Welding Machine with 1 Year Warranty and 1080+5 nm Wavelength
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 800W | Wavelength | 1080+5 Nm |
|---|---|---|---|
| Weight | 90 | Laser Source | Raycus MAX IPG Laser Source |
| Cooling Method | Air Cooling | Fiber Length | 10m |
| Welding Speed | 0-120 Mm/s | Applicable Thickness | <3.5mm(depending On The Material) |
| Wire Feeder Speed | 38~600mm/min | Max Output Power | 800w,1000w,1500w,2000w |
| Welding Thickness | 1-8mm (for 1500W-3000W) | Cable Length | 9 Meters (Raycus & MAX) |
| Application Material | Metal Stainless Steel Aluminum | Function | Stainless Steel Carbon Steel Aluminum Welding |
| Laser Power | 800W | ||
| Highlight | 1 Year Warranty Handheld Laser Welding Machine,1080+5 nm Wavelength Fiber Laser Welding Machine,90 Weight Laser Welder |
||
Product Description
Air Cooling Handheld Laser Welding Machine 800W Laser Welder
Specifications
| Type | Air Cooling Fiber Laser Welding Machine |
|---|---|
| Max. Output Power | 800w,1000w,1500w,2000w |
| Use | Metal Stainless Steel Laser Welder |
| Fiber length | 10m |
| Wavelength | 1070 |
| Welding speed | 0-120 mm/s |
| Application | Metal Stainless Steel Laser Welder |
| After-sales Service Provided | Online support |
| Applicable thickness | <3.5mm(depending on the material) |
| Wire feeder | Standard wire feeding speed 38~600mm/min |
| Application material | Metal Stainless Steel Aluminum |
| Function | Stainless Steel Carbon Steel Aluminum Welding |
Frequently Asked Questions
How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
How thick can 1500w-3000W be welded?
1-8mm thick metal materials.
Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address. We will send more detailed pictures to your email.
Can aluminum and galvanized steel be welded?
Yes, it can.
Packaging
All our machines are packed in wooden boxes.
Language interface
Supports language customization, etc. You can also translate and insert to software.
