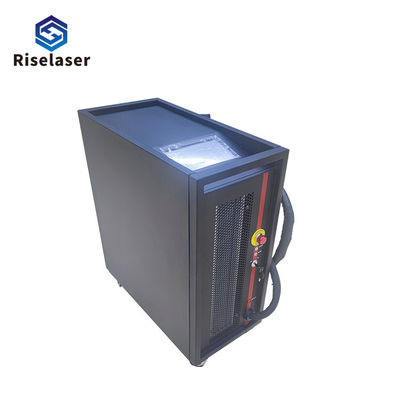

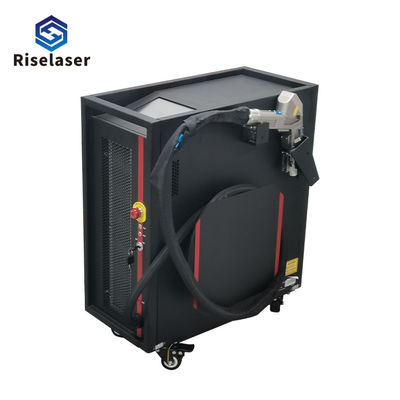

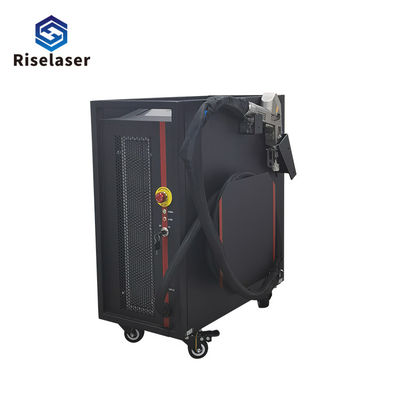

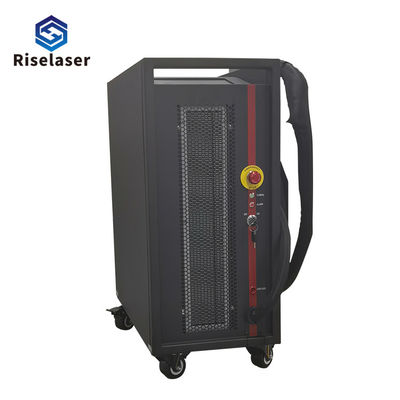

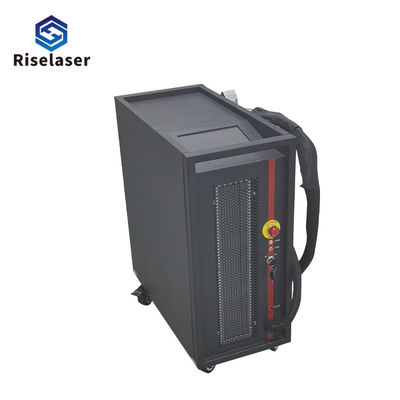

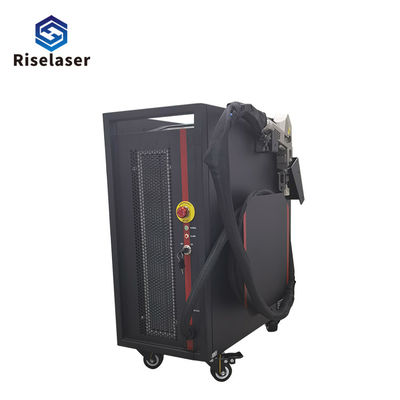

Handheld Laser Welding Machine with 3mm Welding Depth Raycus MAX IPG Laser Source and Online Support
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 2200W | Dimensions | 100*45*68cm |
|---|---|---|---|
| Focal Spot Diameter | 0.5mm | Single Pulse Energy | UP TO 2200W |
| Wavelength | 1070 | Weight | 42 KG |
| Laser Power | 1000W-2000W | Welding Depth | 3mm |
| Cooling Method | Air-Cooling | Input Power | 220V Single Phase, 24A |
| Wobble Frequency | 120HZ | Wobble Width | 5mm |
| Stainless Steel Depth | 5mm | Copper Depth | 2mm |
| Cable Length | 9 Meters | ||
| Highlight | 3mm Welding Depth Handheld Laser Welding Machine,Raycus MAX IPG Laser Source Laser Spot Welding Machine,Online Support Fiber Laser Welding Machine |
||
Product Description
Handheld Laser Welding Machine 1000/1500/2000W Air-cooling Laser Spot Welding Machine
Key Advantages
- Self-developed and highly reliable pump source for ultra-long service life
Applications
- Metal processing station
- Construction and piping
- Auto body application
- Aerospace & transportation
- Maintenance and repair
Technical Parameters
| Pump Power | Input power | Wobble frequency and width | Size | Weight |
|---|---|---|---|---|
| 2200W | 220V single phase, 24A | 120HZ, 5mm | 500*530*260mm³ | 42kg |
Welding Material Capabilities
| Welding material | Stainless steels | Galvanized sheet | Carbon steel | Aluminum | Brass | Copper |
|---|---|---|---|---|---|---|
| One-sided fusion depth | 5mm | 5mm | 5mm | 4mm | 3mm | 2mm |
| Double-sided dissolving depth | 10mm | 10mm | 10mm | 8mm | 6mm | 4mm |
Performance Features
| Power Stability | Plenty of power reserve at rated power output | |||
| Powerful Performance | Effective fusion depth 5mm for stainless steel, 2mm for copper | |||
| Intelligent Operation | Fully intelligent and simple operating system, easy to set up and operate | |||
| Wobble Welding | Wobble width up to 5mm, supports wide seam welding | |||
| Excellent welding seam | Sufficient pumping power and precise energy control for stable laser beam quality and narrowed heat-affected zone | |||
| Operator Safety | Multi-level sensors and interlocking safety devices | |||
Frequently Asked Questions
1. How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2. How long is the cable?
Different laser sources have different options. For example, the normal cable length of Raycus and Max is about 9 meters.
3. How thick can 1500w-3000W be welded?
1-8mm thick metal materials.
4. Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, please contact us with your email address for more detailed information.
5. Can aluminum and galvanized steel be welded?
Yes, it can.
6. Packaging
All our machines are packed in wooden boxes.
7. Language interface
Supports language customization. You can also translate and insert to software.
