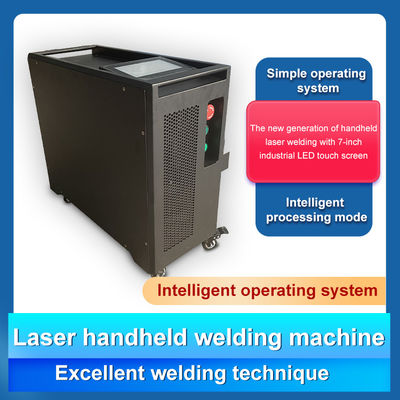

Portable Laser Welder with 7-inch Industrial LED Touch Screen 32 Sets Preset Parameters and 48 KG Weight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 1500W | Weight | 48 KG |
|---|---|---|---|
| Laser Type | Continuous Fiber Laser Welding Machine | Laser Power | 1000W 2000W 1500W 3000W (optional) |
| Laser Wavelength | 1064nm | Welding Mode | Hand-held Laser Welding Head |
| Single-sided Melting Depth | 5mm (Stainless, Carbon, Galvanized), 4mm (Aluminum), 3mm (Yellow), 2mm (Red) | Two Sides Melting Depth | 8mm (Stainless, Carbon, Galvanized), 6mm (Aluminum, Yellow), 3mm (Red) |
| Cable Length | 9 Meters | Welding Thickness | 1-8mm |
| Screen Type | 7-inch Industrial LED Touch Screen | Parameter Sets | 32 Sets |
| Training Time | 30 Minutes | Wire Feeder | Optional |
| Packaging | Wooden Boxes | ||
| Highlight | 7-inch Industrial LED Touch Screen Portable Laser Welder,32 Sets Preset Parameters Fiber Laser Welding Machine,48 KG Weight Handheld Laser Welding Machine |
||
Product Description
Portable Air Cooled Small Laser Welder Fiber Welding Machine
Key Advantages
- 7-inch industrial LED touch screen with intelligent operating system
- Simple operation mode - easy to learn with just 30 minutes of training
- 32 sets of preset and user-defined process parameters for different materials
- Consistent high-quality welding results even for beginners
- Reduces training and production costs
Welding Parameters
| Material | Stainless | Carbon | Galvanized | Aluminum | Yellow | Red |
|---|---|---|---|---|---|---|
| Single-sided melting depth | 5mm | 5mm | 5mm | 4mm | 3mm | 2mm |
| Two sides melting depth | 8mm | 8mm | 8mm | 6mm | 6mm | 3mm |
Product Images
Frequently Asked Questions
How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
How long is the cable?
Different laser sources have different options. For example, the normal cable length of Raycus and Max is about 9 meters.
How thick can 1500W-3000W be welded?
1-8mm thick metal materials.
Is there a wire feeder?
We have a wire feeder to choose from. Contact us with your email address for more detailed information.
Can aluminum and galvanized steel be welded?
Yes, it can.
What is the packaging?
All our machines are packed in wooden boxes.
What languages are supported?
Supports language customization. You can also translate and insert to software.
