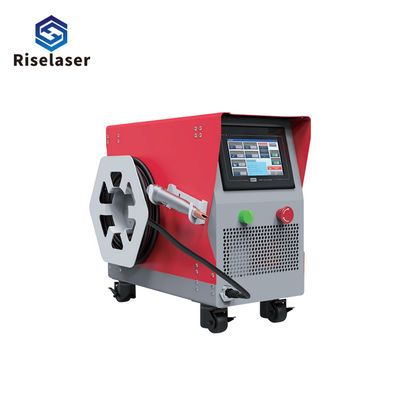

300W/700W/1000W/1500W Handheld Laser Welding Machine with 1080nm Wavelength and 1-300HZ Pulse Frequency
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Power | 300w/700w/1000w/1500w | Cooling Type | Air-Cooled |
|---|---|---|---|
| Laser Type | Fiber Laser | Weight | 32 KG |
| Welding Mode | Pulse | Laser Wavelength | 1080nm ±5nm |
| Pulse Frequency | 1-300HZ | Modulation Frequency | 1-5000HZ |
| Core Diameter | 100um(customisable) | Output Fibre Length | 5M10M |
| Average Power | 300W/500W | Peak Power | 1000W/1500W |
| Maximum Pulse Energy | 10J/10ms/15J/10ms | Exterior Dimensions | 547*300*473mm/547*300*533mm |
| Weights | 30kg/32kg | ||
| Highlight | 300W/700W/1000W/1500W Handheld Laser Welding Machine,1080nm Wavelength Handheld Laser Welding Machine,1-300HZ Pulse Frequency Handheld Laser Welding Machine |
||
Product Description
Riselaser New Fiber Handheld Laser Welding Machine for Metal Advertising Words 300w 700w Air Cooled Portable Spot Welders
Technical Specifications
| Product Model | RLW-FH-1030-QCW | RLW-FH-1570-QCW |
|---|---|---|
| Operating mode | Pulse | |
| Average power | 300W | 500W |
| Peak power | 1000W | 1500W |
| Laser wavelength(nm) | 1080nm ±5nm | |
| Pulse frequency(Hz) | 1-300HZ | |
| Modulation frequency(Hz) | 1-5000HZ | |
| Maximum single-point pulse energy(J) | 10J/10ms | 15J/10ms |
| Core diameter (of a fiber) | 100um(customisable) | |
| Output fibre length(M) | 5M10M | |
| Cooling method | Air cooling | |

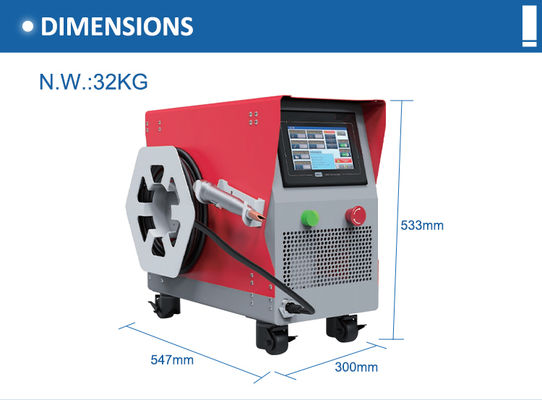

| Exterior Dimensions(mm) | 547*300*473mm | 547*300*533mm |
| Weights(KG) | 30kg | 32kg |
Frequently Asked Questions
How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
How thick can 1500w-3000W be welded?
1-8mm thick metal materials.
Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address. We will send more detailed pictures to your email.
Can aluminum and galvanized steel be welded?
Yes, it can.
Packaging
All our machines are packed in wooden boxes.
Language interface
Supports language customization, etc. You can also translate and insert to software.
