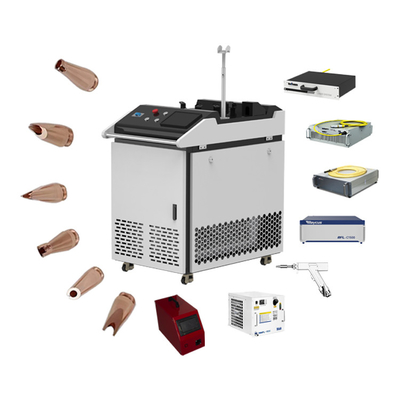

3000W Laser Welder Stainless Steel Handheld Fiber Laser Welding Machine For Welding Metal

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel Series | RL-FB | Output Power | 1000W/1500W/2000W/3000W |
---|---|---|---|
Laser Wavelength | 1080+5nm | Operating Mode | Continuous/Modulation |
Power Adjustment Range | 10~100% | Fiber Core Diameter | 50(25,100,200 Optional) |
Wire Feeder | Standard Wire Feeding Speed 38~600mm/min | Cooling Way | Water Cooling |
Highlight | 3000W Laser Welder,Stainless Steel Handheld Laser Welding Machine,Metal Handheld Laser Welding Machine |
Product Description
The handheld laser welding machine plays a crucial role in laser processing technology. It utilizes laser radiation to heat the workpiece surface, allowing the heat to diffuse inside through conduction. By controlling laser pulse width, energy, peak power, and repetition frequency, the laser creates a specific welding pool, melting and bonding the workpiece. Handheld laser welding machine unique advantages make it ideal for precise welding of micro and small parts, leading to successful applications in various industries. If you are interested in our products, please leave a message or contact us for your quotation.
Product Advantages
- High precision.High efficiency.High welding quality.
- Support customization: make your own logo/design the appearance of the machine.
- The whole machine is guaranteed for one year, and online technical support after-sales.
- Smooth and beautiful welds, Small heat affected area, High welding speed with beautiful weld seam, Widely applied for the industry.
Parameter
Laser Power | 1000W | 1500W | 2000W | 3000W |
Cooling Mode | Water Cooling | |||
Cable length | Fiber cable length 10m, Operable cable length 8m | |||
Wobble width | Adjustable 20-100mm | |||
Protection Gas | compressed gas Pressure 5-10L/min | |||
User Interface | For Laser Control: Power,Frequency, Frequency, Spot width | |||
Language | Chinese-English | |||
Safty |
The machine comes with error alarm function, emergency stop, chiller alarm. | |||
Class 4 laser equipment, Machine with CE, FDA certificate. | ||||
Power Requirement | 220±10% V AC, 50/60Hz | |||
Operating Ambient Temperature(℃) | 10~40℃ | |||
Humidity (%) | 90 | |||

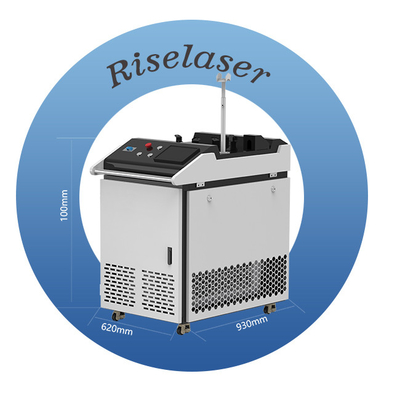

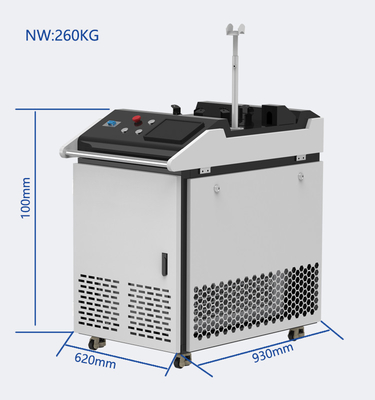

Dimensions(W×H×D) | 93*62*100 |
