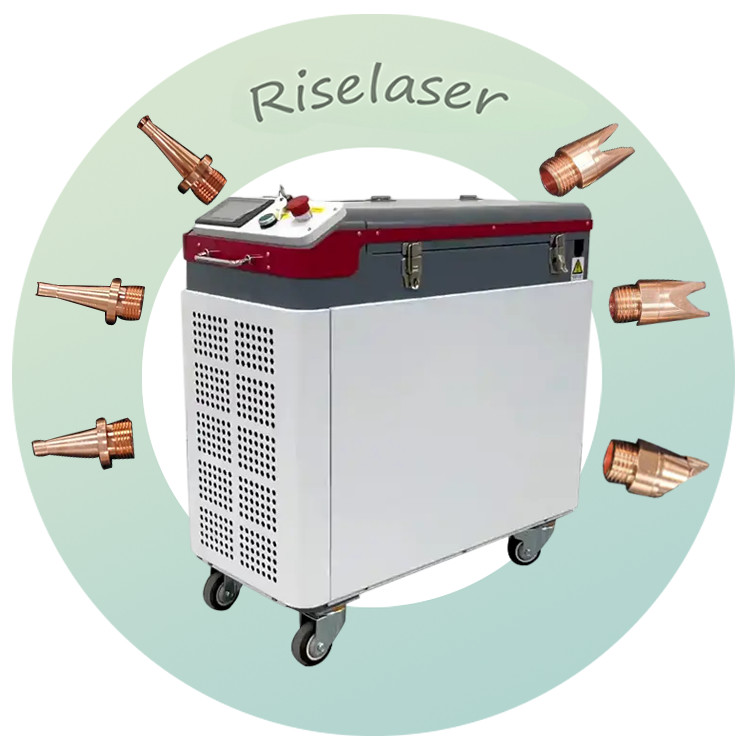

100w Air Cooling Portable Laser Metal Cleaner For Stainless Steel

  • 100w Air Cooling Portable Laser Metal Cleaner For Stainless Steel
  • 100w Air Cooling Portable Laser Metal Cleaner For Stainless Steel
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-CGY
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 200W, 100W, 300W Applicable Material Aluminum, Metal
Laser Type Fiber Laser Weight 45 KG
Warranty 1 Year Function Metal Rust Surface Laser Cleaning
Material Metal Rust Oxide Painting Coating Cooling Method Air Cooling
High Light

100w portable laser metal cleaner

,

air cooling portable laser metal cleaner

,

100w portable fiber laser cleaner
Leave a Message
Product Description



Laser Cleaning Machine With a range of exceptional features, this product stands out among the rest.

  1. No-touch cleaning: Utilizing advanced laser technology, our system offers a non-contact cleaning process. It effortlessly removes dirt and impurities from surfaces without any risk of damage, ensuring a pristine result.

  2. Precision cleaning: Equipped with precise control, our Laser Cleaning System allows for meticulous cleaning of even the tiniest areas, delivering flawless outcomes.

  3. No consumables, safe, and environmentally friendly: Say goodbye to consumables and embrace an eco-conscious cleaning solution. Our system is not only safe for users but also contributes to a greener environment.

  4. Easy to use: Designed with user-friendliness in mind, our Laser Cleaning System requires minimal effort to operate. Streamlined controls and clear instructions ensure a hassle-free experience.

  5. Ergonomic design: Comfort matters, and our system boasts an ergonomic design, providing a comfortable grip and ease of handling during cleaning tasks.

  6. High cleaning efficiency: Experience unparalleled cleaning speed and efficiency with our Laser Cleaning System. It swiftly tackles cleaning tasks, saving you valuable time and effort.

  7. Stable laser cleaning system: Built and tested for stability, our system guarantees long-lasting, reliable performance, reducing maintenance needs and ensuring uninterrupted cleaning operations.

  8. Optional mobile battery module: For enhanced versatility, we offer an optional mobile battery module. Now, you can clean without being tied to a power source, offering you greater freedom in your cleaning endeavors.

100w Air Cooling Portable Laser Metal Cleaner For Stainless Steel 0100w Air Cooling Portable Laser Metal Cleaner For Stainless Steel 1

parameter



Operating environment
Supply voltage Single-phase 220V±10%, 50/60Hz AC
Overall power consumption ≤800W
Operating ambient temperature 5℃～40℃
Ambient humidity ≤80%
Optical parameters
Laser average power ≥100W
Power instability ＜5%
Laser working mode Pulse
Pulse width 2-500ns adjustable
Maximum single pulse energy 1.5mJ
Power adjustment range (%) 0-100 (gradually adjustable)
Frequency adjustment range (kHz) 1-4000 (gradually adjustable)
Fiber length 3m
Cooling method Air cooling
Cleaning head parameters
Scanning range (length*width)

0-100mm, continuously adjustable;

Dual axis supports 8 scanning modes;
Scanning frequency The highest is not lower than 300Hz
Field lens focal length (mm) 160mm (210mm/254mm/330mm/420mm optional)
Depth of focus About 5mm
Mechanical parameters
Machine size (length, width and height) About 770mm*375mm*800mm
Dimensions after packaging (length, width and height) About 870mm*480mm*960mm
Machine weight About 45KG
Packaged weight About 85KG
Cleaning head weight ＜1.8Kg
Operation method Handheld/Automated

FAQ

1.How long is the warranty period? Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.

2.How long is the cable? Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.

3.How thick can 1500w-3000W be welded 1-8mm thick metal materials.

4.Is there a wire feeder? We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.

5.Can aluminum and galvanized steel be welded? Yes, it can.

6.Packaging All our machines are packed in wooden boxes.

7.Language interface Supports language customization, etc. You can also translate and insert to software.
