Mini 20w Fiber Laser Marking Engraving Machine For Metal Aluminum
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Guangdong, China | Marking Area | 150mm*150mm |
|---|---|---|---|
| Laser Source | IPG Raycus Max JPT | Working Accuracy | 0.01mm |
| Cooling Mode | Air Cooling | Laser Power | 20W /30w/ 50w(Optional) |
| Applicable Material | Metal Materials | ||
| High Light | 20w Fiber Laser Marking Engraving Machine,Portable Fiber Laser Marking Engraving Machine,Jewelry Ring Fiber Laser Engraving |
||
Product Description

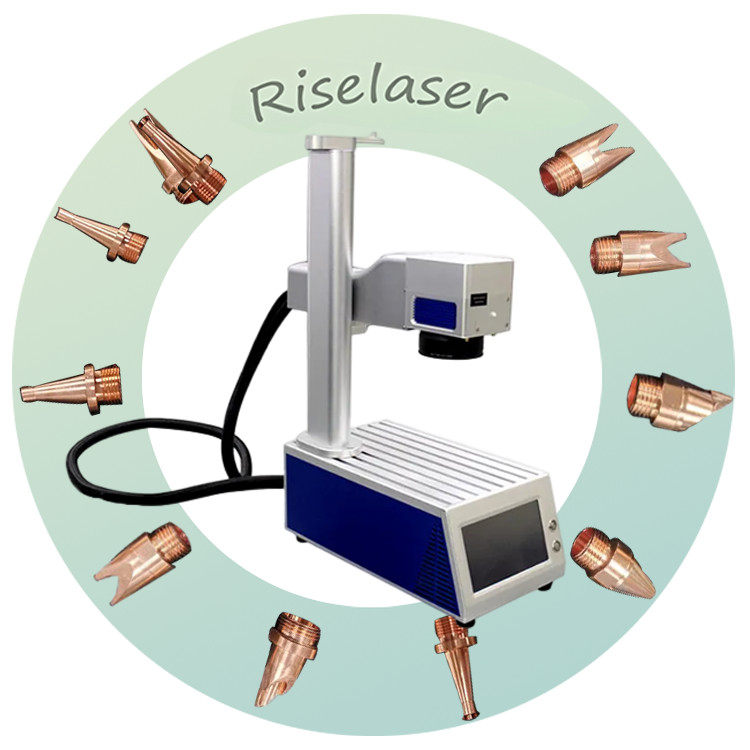

Portable Mini 20w Fiber Laser Marking Engraving Machine For Metal Aluminum Jewelry Ring
This device offers a cost-effective solution without compromising on performance. With its built-in control system, there's no need for an additional computer, making it incredibly compact and portable. The machine's detachable and foldable design adds to its convenience and ease of transportation. Despite its small size, the Bevel Machine delivers exceptional marking performance comparable to desktop computers, meeting the demands of most common laser marking applications effortlessly. Experience the power of efficiency and convenience with our Bevel Machine.
Product Parameters
| Output Power | 18.5/20W |
| Beam quality M2 | ≤1.4 |
| Pulse repetition frequency | 27-60 kHz |
| Laser wavelength | 1064±5 nm |
| Output power stability | ＜3% |
| Design life | About 100,000 working hours(not service life) |
| Marking range | 100~150mm(range optional) |
| Engraving depth | ≤1mm (depending on power and time) |
| Engraving speed | ≤10000mm/s |
| Repeatability | ±0.002 |
| Minimum marker line width | 0. 1mm |
| Minimum character height | 0.15mm |
| Cooling method | Built-in air cooling |
| System power | 500W/220V/50Hz (can be connected to 110V) |
| Temperature humidity | 0~40°, 30% RH 85%, need to install air conditioner when using beyond the range |
| Oil mist condensation | Not allowed |
| Support system | Windows operating system |
FAQ
1: Are you a factory or a trading company ?
We are a manufacturer established in 2015, located in Shenzhen. Committed to providing the majority of users with economic, high-quality laser equipment and we provide perfect OEM and after-sale service. Welcome to visit our factory.
2: How was the machine guarantee?
We will provide 1 year warranty, and will supply free parts during the machine warranty period if the machine has some problems. If there is a problem with the machine, you can send it back to us to reissue a new machine/parts for you.Thus, any problems, just feel free to let us know, we will provide you with best solutions.
3: How can I use the machine, if I'm a new buyer?
We will provide English(or other languages) manual and video for the machine you bought.The software is easy to learn with teaching video, also we provide online training services for free. If you still need our help, please contact us any time via voice all or video call both are available.
4: How do you control your quality?
Quality is priority. The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before shipping out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
5: How can I know your machine is designed for my product?
You can send samples to us for marking to check the quality, we can help you to do sample testing. Free sample marking service is provided.
