1080nm Fiber Portable Laser Welder Welding Cutting Cleaning 3 In 1

  • 1080nm Fiber Portable Laser Welder Welding Cutting Cleaning 3 In 1
  • 1080nm Fiber Portable Laser Welder Welding Cutting Cleaning 3 In 1
Place of Origin Shenzhen, China
Brand Name Rise laser
Certification ISO, ce
Model Number RL-FA
Minimum Order Quantity 1 set of this Machine
Price Negotiable
Packaging Details Wooden case
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 units/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Riselaser Weight (KG) 160
Laser Type 1080nm Fiber Laser Laser Power 1000/1500W
Cooling System Water Cooling Laser Source GW 25um Core Diameter Fiber Laser
Welding Thickness 0.5-3mm Welding Gap Requirements ≤1.2mm
Operating Voltage 220±10% V AC, 50/60Hz Fiber Length Standard 10m, The Longest Customized Length15m
Speed Range Of Welder 0~120 Mm/s Focal Spot Diameter 0.5mm
High Light

1080nm Portable Laser Welder

,

Water Cooling Hand Laser Welder

,

Double Wobble Head Laser Handheld Welder
Leave a Message
Product Description

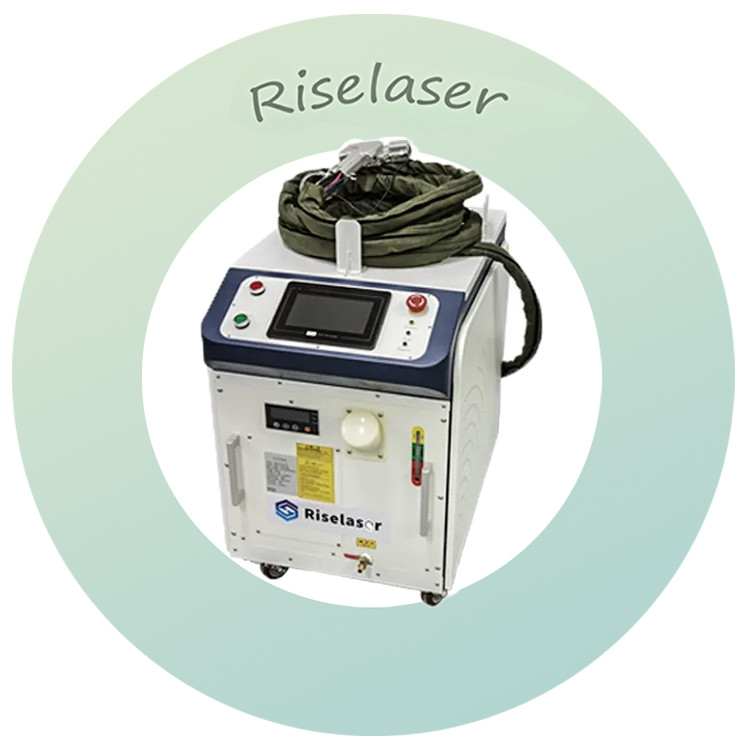

1080nm Fiber Portable Laser Welder Welding Cutting Cleaning 3 In 1



Riselaser 3 in 1 Handheld Fiber Laser Welding Cutting Cleaning Machine Metal Stainless Welder



Advantages

1. 3 modes: welding, cleaning, cutting, the cleaning effect is good and very stable.
2. Riselaser double wobble head has multiple welding modes:point, line, circle, triangle, ellipse,
semi-circle,eight-character.

3. Welding head with touch screen to adjust parameters.
4. 2KW can weld 6mm thick stainless steel and carbon steel without adding welding wire.
5. Support customization:make your own logo/design the appearance of the machine.
6. The whole machine is guaranteed for one year, and online technical support after-sales.
7. No MOQ request,Wholesale price.Please contact us for wholesale price.



Essential details

Laser System RL-F1500 RL-F2000
Laser Type 1080nm Fiber Laser
Laser Power 1500W 2000W
Cooling System Water Cooling
Way of working Continuous / Modulation
Laser source MAX/Raycus/BWT
Laser head Dual Axis
Speed range of welder 0~120 mm/s
Focal Spot Diameter 0.5mm
Ambient temperature range 10~40℃
Environmental humidity range <70% without condensation
Welding thickness 0.5-3mm
Welding gap requirements ≤1.2mm
Operating Voltage 220±10% V AC, 50/60Hz
Machine Dimensions 745*516*710mm
Packing Weight 160kg with auto wire feeder
Fiber length Standard 10m, the longest customized length15m



Welding penetration parameters

Material Output power (W) Maximum penetration (mm)
Stainless steel 1500 0.5-4
Stainless steel 2000 0.5-6
Carbon steel 1500 0.5-4
Carbon steel 2000 0.5-6
Aluminum alloy 1500 0.5-3
Aluminum alloy 2000 0.5-4.5
Galvanized sheet 1500 0.5-3
Galvanized sheet 2000 0.5-4.5



1080nm Fiber Portable Laser Welder Welding Cutting Cleaning 3 In 1 01080nm Fiber Portable Laser Welder Welding Cutting Cleaning 3 In 1 1

FAG

1.How long is the warranty period?

Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.

2.How long is the cable?

Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.

3.How thick can 1500w-3000W be welded

1-8mm thick metal materials.

4.Is there a wire feeder?

We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.

5.Can aluminum and galvanized steel be welded?

Yes, it can.

6.Packaging

All our machines are packed in wooden boxes.

7.Language interface

Supports language customization, etc. You can also translate and insert to software.
