Portable 20W / 30W Metal Plastic Mini Laser Marking Machine
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Riselaser Technology |
| Certification | ISO, CE |
| Model Number | RL-20PL |
| Minimum Order Quantity | 1 Pcs |
| Price | Negotiable With Riselaser Technology |
| Packaging Details | PLYWOOD BOX |
| Delivery Time | 5-9 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 Pcs/Week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Name | Mini Portable Marking Laser Machine | Main Usage | Metal Fiber Laser Marking |
|---|---|---|---|
| Marking Area | 100*100mm (optional 150*150mm) | Laser Source Brand Brand | MAX Or Raycus 20W, 30W |
| Machine Size | 390.00 X210.00 X615.00 Mm | Repetition Accuracy | ± 0. 002 |
| Software | EZCAD2.0 | Main Power | 500W / 220V / 50Hz (110V Optional) |
| Marking Depth | ≤ 1 Mm (depending On Power And Time) | Cooling Method | Air Cooling |
| Highlight | 20W Mini Laser Marking Machine,30W Mini Laser Marking Machine,MAX Fiber Laser Marking Machine |
||
Product Description

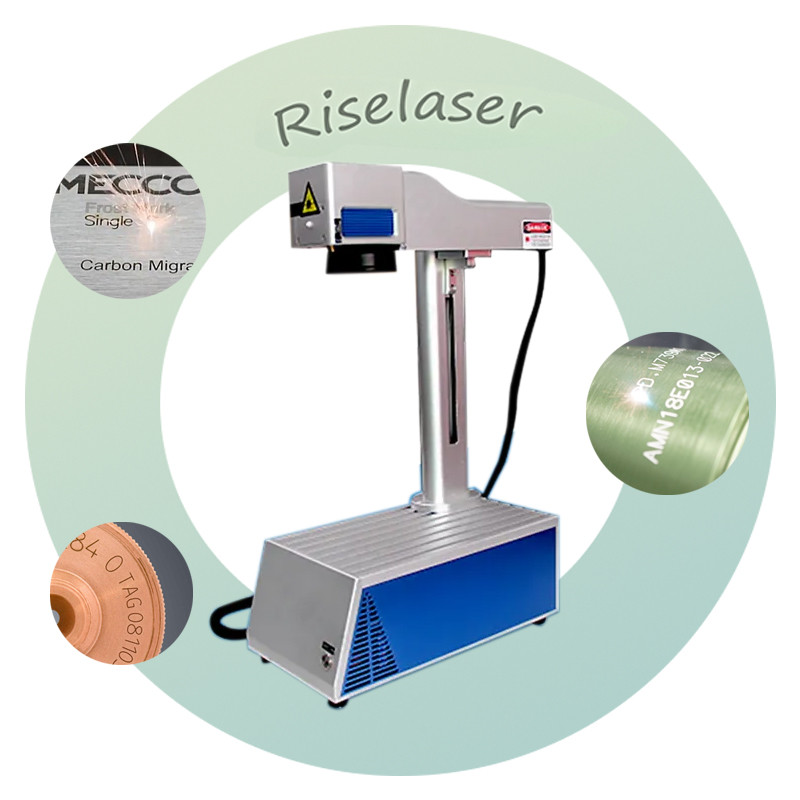

Portable 20W / 30W Metal Plastic Mini Fiber Laser Marking Machine 20w Fiber Laser Marking Machine
PRODUCT INTRO
Riselaser's RL-P series mini laser marking machine is designed as an economical desktop fiber laser marking equipment, catering to the need for simple, compact, flexible, and convenient equipment. This model offers cost-effectiveness, high performance (note that the computer is not included, and the user needs to configure their own computer to use it), and a small and portable design. It can easily fulfill most standard laser marking applications.
The RL-P series products use a 1064nm wavelength fiber laser source, which is suitable for various metal materials such as iron, copper, aluminum, gold, silver, as well as some non-metal materials such as PC, ABS, PVC, and PC+ABS.
MACHINE DIMENSION
DEVICE SPECIFICATION
| Model series | Mini Fiber laser marking machine | ||
| Model | RL-20P | RL-30P | |
| Laser parameters | Laser source | MFP-20X/20QS | MFP-30X/30QS |
| Output power | 18.5W/20W | 30W | |
| Beam quality M² | ≤1.4 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | 30-60 kHz | |
| Laser wavelength | 1064±5 | ||
| Output power stability | <3% | ||
| Design life | About 100,000 working hours (non-service life) | ||
| Optical properties | Marking range | 100~150mm (range optional) | |
| Engraving depth | ≤1mm (depending on power and time) | ||
| Engraving speed | ≤10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Mininum line width | 0. 1mm | ||
| Minimum character height | 0.15mm | ||
| Use environment | Cooling method | Built-in air cooling | |
| System power supply | 500W / 220V / 50Hz (110V can be connected) | ||
| Temperature, humidity | 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
| Other parameters | Operating system | Windows operating system | |
| File format | All fonts/types of WINDOWS operating system font library (standard USB input) | ||
| Dimensions | 390X210X615 mm | ||
| Packing size | 680X5500X270 mm | ||
| Total Weight | About 20kg | ||
MACHINE ADVANTAGES
1. 100% portable
● The whole machine weighs only about 20KG,it's small,compact and light,it is very convenient to carry;
● The column and beam path can be disassembled and packed at will,it's easy to install and easy to store;
● The position of the column can be adjusted freely on the marking table,which can be flexible and changeable.
2. Cost-effective
● Affordable and economical models with performance comparable to desktop computers and higher cost performance;
● Integrated design,firm structure,stable performance,convenient after-sales;
● Desktop operation,small footprint,not limited by space.
3. High-quality light source
● Using advanced fiber laser,the output beam quality is good,the reliability is high;
● No consumables and maintenance-free,working life is about 100,000 hours;
● It can be flexibly applied to metallic materials and some non-metallic materials.
