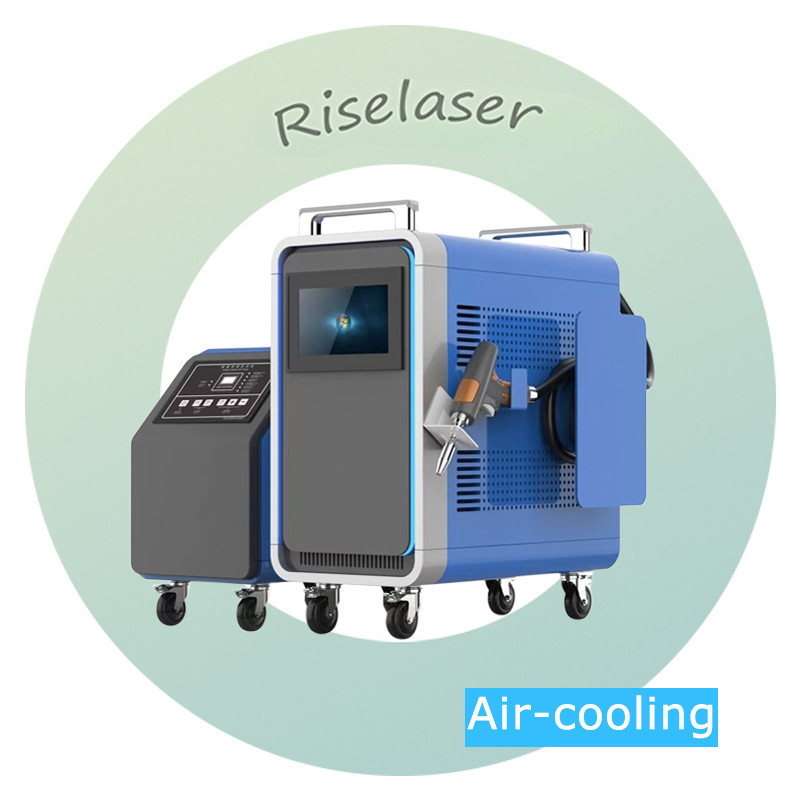

Riselaser Air Cooling 800W / 1200W Fiber Laser Welding Machine For Stainless Steel

  • Riselaser Air Cooling 800W / 1200W Fiber Laser Welding Machine For Stainless Steel
  • Riselaser Air Cooling 800W / 1200W Fiber Laser Welding Machine For Stainless Steel
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-A800/1200W
Minimum Order Quantity 1 Pcs
Price Negotiable With Supplier
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 pcs/Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Welding Machine Name Fiber Laser Welding Machine Laser Source Power 800W / 1200W
Welding Head Type Qilin/WSX/etc. Cooling Way Air-Cooling
Welding Speed 0~120 Mm/s Metal Welding Thickness 0.5-3mm
Working Temp 10-40℃ Working Voltage 220±20%V AC 50/60Hz
High Light

800W Fiber Laser Welding Machine

,

1200W Fiber Laser Welding Machine

,

RECI Handheld Laser Welding Machine
Leave a Message
Product Description

Riselaser Air-Cooling 800W / 1200W Fiber Laser Welding Machine For Stainless Steel



Fiber Laser Welding Machine 800W 1200w Air-Cooling  Features:



The welding speed is significantly faster, with a speed range of 2 to 10 times faster than traditional welding techniques.
It boasts a simple operation that requires no special training.
The welding seam is smooth and visually pleasing, eliminating the need for polishing.
There is no deformation or visible welding scar, ensuring a securely welded finished product.
Laser welding requires fewer consumables and has a longer service life.
The device is designed to be safer and more environmentally friendly.



Laser Welding Machine 1000w Specifications



NO.
Item
Parameter
Unit
1
Machine Name
Laser Welding Machine 800w 1200w


　
2
Machine Type
RL-A800/1200


　
3
Power of the Laser
800/1200
W
4
Wavelength of the Laser
1068.00
nm
5
Fiber Diameter
50.00
μm
6
Cord Length
10.0
m
7
Working Modes of Laser
Continuous / Modulation


　
8
Galvanometer Width
0.5-6.0
mm
9
Scanning Speed
≤8000.0
mm/s
10
Welding Speed
0-120
mm/s
11
Cooling Method

 Air Cooling




　
12
Working Environment
15 - 40
℃
(Temperature)
13
Humidity range of working environment
＜ 70% non-condensing


　
14
Material thickness
≤5.00
mm
15
Gap requirements
≤0.50
mm





Air Cooling Laser Welding Machine 800W1200w  Details



Fiber-optic laser
800W / 1200W RECI/Raycus/Max laser, two-year warranty.

This laser system boasts superior beam quality, exceptional power stability, and unwavering system stability.

With a core diameter of 20μm, it achieves greater electro-optical conversion efficiency.

Riselaser Air Cooling 800W / 1200W Fiber Laser Welding Machine For Stainless Steel 0



Double swing welding head
Customizable 2mm, 2.5mm, 3mm welding channel width
Special welding nozzle, can realize any part and fillet welding
Infrared positioning, more accurate welding position



Dual temperature chiller
Intelligent temperature control, compressor cooling
LED screen, temperature can be displayed at any time
Simple operation, stable performance, energy saving and high efficiency



Riselaser Air Cooling 800W / 1200W Fiber Laser Welding Machine For Stainless Steel 1







Machine Application

The hand-held laser welding machine employs cutting-edge fiber laser technology and boasts a specially crafted welding head that addresses the gap in hand-held welding within the laser equipment industry. Its key features include its user-friendly interface, the ability to produce visually appealing welding seams, quick welding speeds, and its non-consumable nature. When it comes to welding metal materials like plates, iron plates, and galvanized plates, it serves as an exceptional replacement for traditional methods like argon arc welding and electric welding.

Riselaser Air Cooling 800W / 1200W Fiber Laser Welding Machine For Stainless Steel 2
