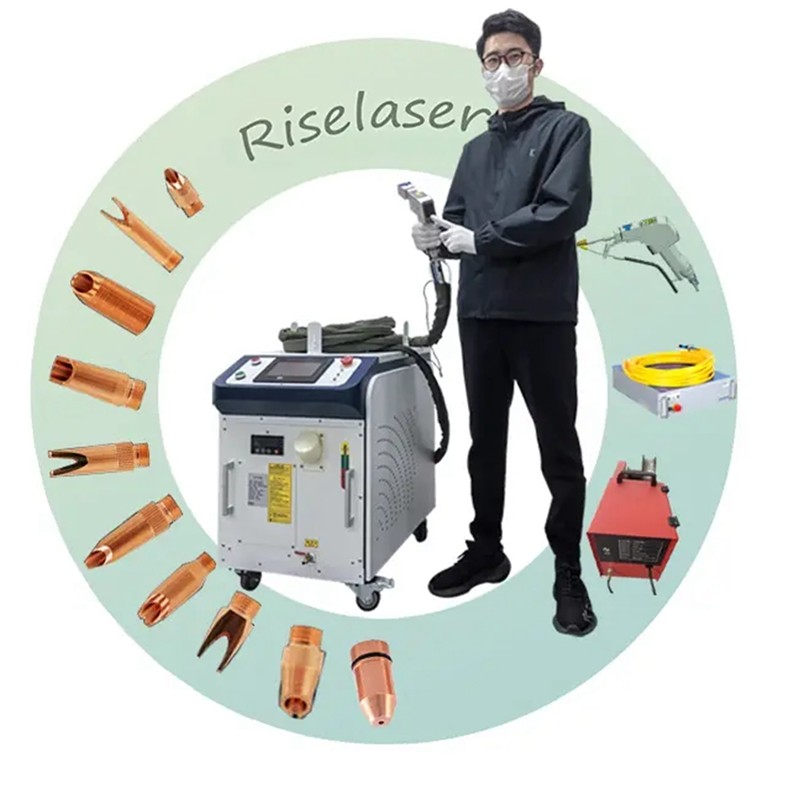

1500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder

  • 1500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder
  • 1500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Function 3 In 1 Hand Held Welding Cutting Cleaning Machine Key Words Laser Welding Cutting Cleaning Machine
3 In 1 Welding, Cleaning, Cutting Laser GW CW Fiber Laser Or Raycus/ Max
Fiber Laser Power 1500w Or 2000W Product Weight 120KG
Optional Machine Auto Wire Feeding Machine Packing Weight 160KG
Cooling Built-in Water Cooling Chiller Fiber Wire 10M Long
Power Single Phase Electrical Supply 220±10% V AC, 50/60Hz
High Light

1.5kw Laser Cutting Welding Machine

,

2kw Handheld Welding Machine

,

1500w Laser Welder Cutter
Leave a Message
Product Description

1500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder



3 In 1 Laser Cutting Welding Cleaning Machine 1500w 2000w Handheld Welding Machine



Product Features
1. Designed with compact machine body and handheld welding head, this laser welding machine is convenient to use and makes the welding process more flexible.
2. With the function of automatic laser welding, this machine has fast welding speed.
3. Mini fiber laser welding machine adopting simple control panel, this laser welding machine is easy to learn and simple to operate. No certificate is needed to operate it for beginners.
4. The finished welding seam is smooth and almost doesn't need any further polishing process.



Specification

Laser Beam 3 In 1 Laser Cutting Welding Cleaning Machine 1500w 2000w Handheld Welding Machine
Cooling Built-in Industrial water cooling Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 0.75kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas Pressure 5-10L/min
User Interface For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty Class 4 laser equipment,Machine with CE,FDA certificate.
The machine comes with error alarm function,emergency stop,chiller alarm.
Power Requirement 220±10% V AC, 50/60Hz
Operating Ambient Temperature(℃) 10~40℃
Humidity (%) 90
Dimensions(W×H×D) 98*54*69cm
Weight 120kg





3 in 1 laser welding machine Description
The range of application includes welding and shaping diverse sheet metal components, such as billboards, commercial kitchen equipment, stoves, carts, dining cars, doors and windows, frames, metal furniture, lampshades, power boxes, fire boxes, pipes, and more.1500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder 0







Laser Welding head

6 different light spot modes (O, ●, 8, ◎, -, △)
Spot size can adjust from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device

1500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder 1





1500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder 21500w 2000w Laser Cutting Welding Machine 3 In 1 Handheld Welder 3



Performance

  1. 3 in 1 double pendulum laser welding head, integrates welding, cleaning and cutting, easy to use and easy to change between  different modes
  2. Adopt to long-life fiber laser, higher photoelectric conversion efficiency, lower maintenance cost and simple operation for sure
  3. Compact design and built-in water cooling save floor space and ensure maximum mobility
  4. 1500W and 2000W are available to meet different welding depth and efficiency requirements
  5. Full penetration welding 3mm S/S or high speed welding 1mm S/S
  6. Standard water-cooled welding gun supports shielding gas; optional swing welding gun can realize 4mm spot welding, wider welding seam or rough edge
  7. Good finish, good finish, can be welded repeatedly, it is recommended to polish slightly after welding, but it is not necessary if argon gas is used for welding S/S
  8. Classic nozzle set for 3 to more different applications
