Portable 20w Fiber Laser Marking Machine Metal Engraving Machine

  • Portable 20w Fiber Laser Marking Machine Metal Engraving Machine
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-20H
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Usage Laser Marking Laser Max 20W
Beam M22 ≤1.4 Pulse Repetition Frequency 27-60 KHz
Wavelength 1064±5 Power Stability ＜3.0%
High Light

20w Fiber Laser Marking Machine

,

Fiber Laser Marking Machine

,

20w Metal Laser Engraving Machine
Leave a Message
Product Description

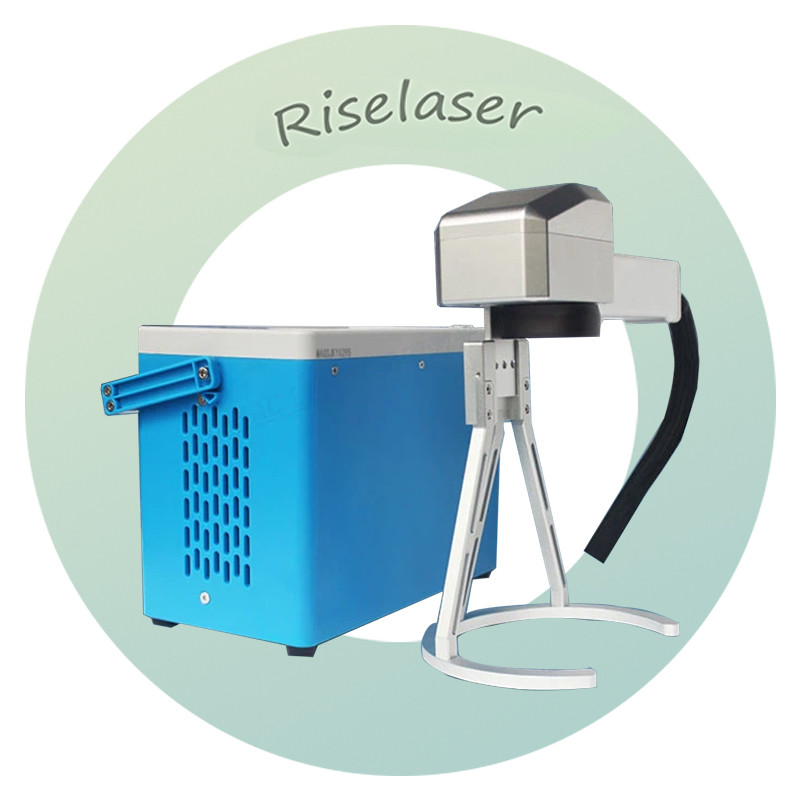

Portable 20w Fiber Laser Marking Machine Metal Engraving Machine



Metal Marking 20w Mini Portable Fiber Laser Marking Machine



This Q8 20W laser marking machine is a portable, battery-powered, fully autonomous marking machine!

Due to its powerful 24V rechargeable lithium battery power supply system, it can actually maintain 6-8 hours of work when

 normally, with strong endurance and no cable drag, avoiding the embarrassment of sudden power failure during use.

Its light weight and multi-functionality make it especially suitable for perfect marking on large, heavy or difficult workpieces.



Q8 is definitely powerful, sturdy and reliable. The weight of this [ortable laser marking machine is 6 kg, and the marking head is only 1.25 kg.

It has an ergonomic grip, comfortable to hold and easy to operate. Rear USB interface, software support: text, pattern,

two-dimensional code, barcode, serial number, graphics and other marking content. In addition, Q8 also has a special box

that is convenient for storage and can be carried to different locations. It is one of the smallest rechargeable laser

marking machines on the market!



Details of Q8 riselaser fiber laser marking machine

Portable 20w Fiber Laser Marking Machine Metal Engraving Machine 0



Specification of laser marking machine 20w



Model Q8 handheld portable fiber marking machine









Laser parameters

 Laser Source Max 20W
Output power 20W
Beam quality M22 ≤1.4
Pulse repetition frequency 27-60 kHz
Laser wavelength 1064±5
Output power stability ＜3%
Design life About 100,000 working hours (non-lifetime)







Optical properties

 Marking range 80mm
Engraving depth ≤1mm (depending on power and time)
Engraving speed ≤10000mm/s
Repeat accuracy ±0.002
Minimum marking line width 0. 1mm
Minimum character height 0.15mm



Use environment

 Battery life It can work for 6-8 hours under normal use
cooling method Built-in air cooling
System power supply 500W / 100-240V / 50/60Hz





Other parameters

 Operating system linux operating system
File format The software supports text, pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input)
Dimensions Control chassis: 250X135X195 mm Marking head: 250X120X260 mm
Total Weight Machine 6kg, marking head 1.25kg





​Application showing

Portable 20w Fiber Laser Marking Machine Metal Engraving Machine 1





Diversified marking content, support language customization
Rear USB interface, software support: text, pattern, QR code, barcode, serial number, graphics and other marking content, support operating system language customization



Video display for your reference of this Q8 handheld marking machine



customized LOGO available
The boot page of the operating system and the LOGO in the upper left corner can be customized
