Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder

  • Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder
  • Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder
  • Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Hand Held Welding Machine Key Words 2 Stainless Steel Welding
3 In 1 Function Welding, Cleaning And Cutting Machie Features Air Cooling+ Water Recycle
Laser Type Continues Laser Source Laser Power 1000w/1500w
Machine Dimension 67*30*55CM Machine Weight 35KG
Laser Head SUP/QILIN/OSPRI Fiber Wire Length 6M/10M
Power Single Phase Electrical Supply 220±10% V AC, 50/60Hz
High Light

1000w Handheld Laser Welding Machine

,

AC220V Hand Held Laser Welding Machine

,

1500w Laser Welding Machine Handheld
Leave a Message
Product Description

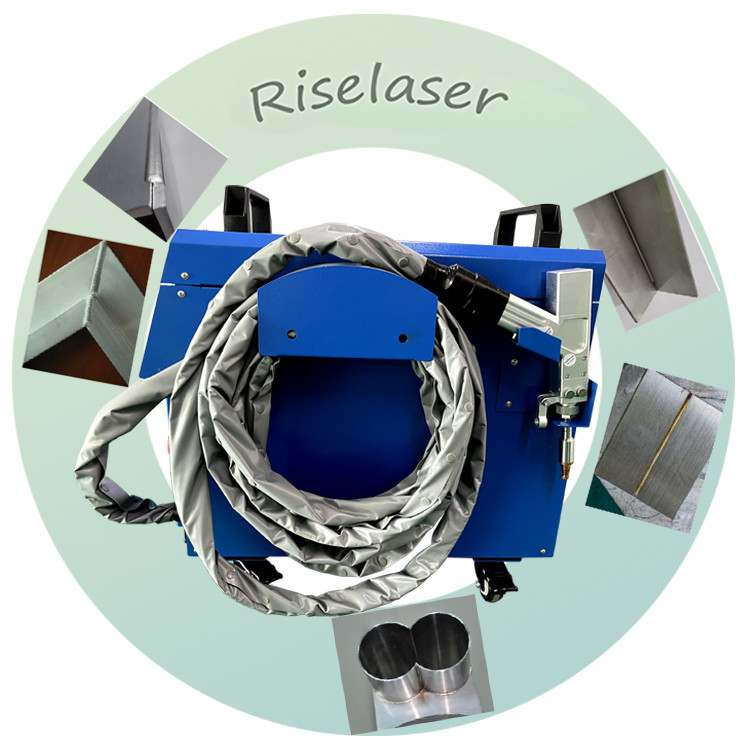

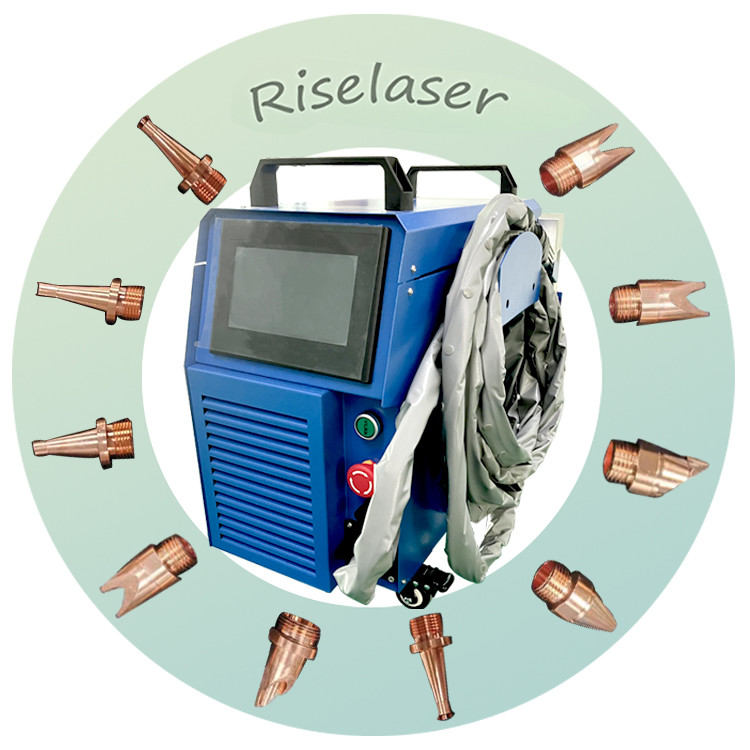

Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder



Air Cooling Laser hand held welding machine 1000w 1500w with wire feeder for stainless steel welding



Riselaser's high-performance laser welding machine adopts a new air-cooled technology platform architecture and active refrigerant type heat dissipation. The welding machine is easy to carry, the volume is about 1/4 of the traditional water-cooled laser welding machine, and the weight is about 1/3 of the traditional water-cooled laser welding machine. The body of the machine is light - just take it with you, connect it to a power source, and the machine is ready to weld!



Compared with traditional welding machines, novice welders don't need much time to get familiar with the machine, just a few hours is enough to get started. The machine presets multiple sets of welding parameters, which can be quickly switched according to the type and thickness of the material. This enables novice welders to get to work quickly and achieve high-quality results.



Machine Main Specification



Laser System RL-F1000
Laser Type 1080nm Fiber Laser
Nominal Laser Power 1000W
Cooling System Air Cooling
Way of working Continuous
Speed range of welder 0~120 mm/s
Focal Spot Diameter 0.5mm
Ambient temperature range -20℃~45 ℃
Environmental humidity range <70% without condensation
Welding thickness 0.5-3mm
Welding gap requirements ≤1.2mm
Operating Voltage AC 220V
Machine Dimensions 67*30*55CM
Net Weight 35kg
Fiber length 6m





Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder 0

Main features of the machine:

  • 1 year warranty
  • Built-in controller color display
  • QBH handheld welding torch
  • Lightweight and compact design for easy portability
  • Maximum welding speed 5m/min
  • Weld width 0-5mm
  • Wire feeder is ready
  • low power consumption
  • Small size

Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder 1Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder 2



Application of Air cooling 1000w hand held welding machine


Fiber laser welding industry: mainly used in aviation, machinery, electronics, electrical appliances, hardware, automobiles, etc.

Air cooling 1000w hand held welding machines are also popular in auto parts: hydraulic ejectors, filters, sensors, solenoid valves, etc.

Kitchen and bathroom appliances: 1000w laser welding machine is used for kettles, faucets, hooks, sinks, range hoods, etc.

Air cooling 1000w hand held welding machine is used in energy, lighting and building materials industries: such as welding of heat-conducting plates for solar water heaters.

Welding materials: laser welding stainless steel, iron, copper, aluminum, zinc and some alloy materials, the thicker the material, the greater the required laser power

Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder 3Air Cooling Handheld Laser Welding Machine 1000w 1500w With Wire Feeder 4
