MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w

  • MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w
  • MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w
  • MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500/1000/2000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Handheld Welding Machine Key Words 2 Manual Laser Welding Machine
3 In 1 Function Welding, Cleaning And Cutting Laser Type GW CW Fiber Laser Or Raycus/ Max
Laser Power 1500w Machine Weight 160KG
With Auto Wire Feeding System Packing Weight 180KG
Cooling System Built-in Water Chiller Fiber Wire Length 10M-15M
Machine Size 745*516*710mm Electrical Supply 220±10% V AC, 50/60Hz
High Light

GW Fiber Small Laser Welding Machine

,

1500w Small Laser Welding Machine

,

CW Fiber Laser Welding Machine
Leave a Message
Product Description

MAX laser source small laser welding machine with touch screen laser head 1500w 2000w



Introduction

The hand-held metal laser welding machine is equipped with the oscillating welding torch exclusively developed by Riselaser, which greatly improves the strength and quality of welding joints and obtains better weld formability. The handheld laser welding machine can perform spot welding, straight seam welding, lap welding, girth welding and any orbital welding. The machine is also equipped with an automatic wire feeder. Compared with traditional argon arc welding, the efficiency is increased by more than 60%.






Specification

Laser Beam 1500watt GW Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling Built-in Industrial Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 0.75kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas Pressure 5-10L/min
User Interface For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty Class 4 laser equipment,Machine with CE,FDA certificate.
The machine comes with error alarm function,emergency stop,chiller alarm.
Power Requirement 220±10% V AC, 50/60Hz
Operating Ambient Temperature(℃) 10~40℃
Humidity (%) 90
Dimensions(W×H×D) 745*516*710mm
Weight 160kg

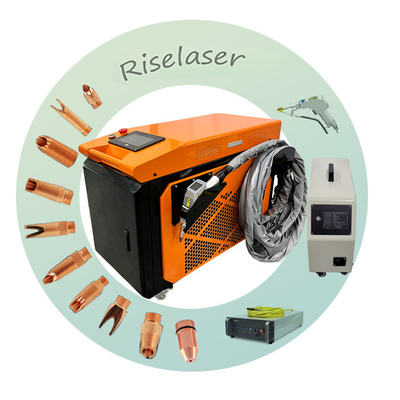

Main components of this machine

MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w 0MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w 1



Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm



Support welding methods

MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w 2

Laser head

With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device

MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w 3



Water cooling device
Built-in industrial chiller, no external chiller required
Built-in water temperature alarm function, safe production
Dual temperature dual control













Packing details

MAX Laser Source Small Laser Welding Machine With Touch Screen Laser Head 1500w 2000w 4



Why Choose us

Replacing the old hot-melt welding system with a hand-held welding torch not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes it possible for laser welding to work outdoors. The welding capacity has been expanded from small and light workpieces to large and heavy ones that are difficult to move Objects, such as stainless steel silos, stainless steel spiral ducts, chimney pipes, and automotive steel pig feeders, have almost no size restrictions, which indicates that traditional electric welding, argon welding, arc welding, etc. will eventually be replaced by fiber laser welding.


The handheld laser welding machine has the advantages of simple operation, beautiful weld seam, fast welding speed, and no consumables. It can be used for welding various metal plates and pipes: such as stainless steel plate, iron plate, galvanized plate and CS plate, aluminum plate, brass plate and other metal plates and pipes.
