1500w 2000w Handheld Laser Welding Machine With Raycus / Max Laser Source

  • 1500w 2000w Handheld Laser Welding Machine With Raycus / Max Laser Source
  • 1500w 2000w Handheld Laser Welding Machine With Raycus / Max Laser Source
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500/RL-F2000
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Laser Welding Machine Key Words 2 Handheld Laser Welding Machine
Main Feature Maximum To 8mm Metal Welding Laser Type Raycus/ Max/BWT
Laser Power 1000w/1500w/2000W Machine Weight 160KG
With Auto Wire Feeding System Packing Weight 200KG
Cooling System Built-in Water Chiller+air Cooling Fiber Wire Length 10M/15m
Power Single Phase/three Phase Electrical Supply 380/220±10% V AC, 50/60Hz
Machine Size 93*62*100cm
High Light

Max handheld laser welding machine

,

Raycus handheld laser welding machine

,

1500w handheld laser welding machine
Leave a Message
Product Description

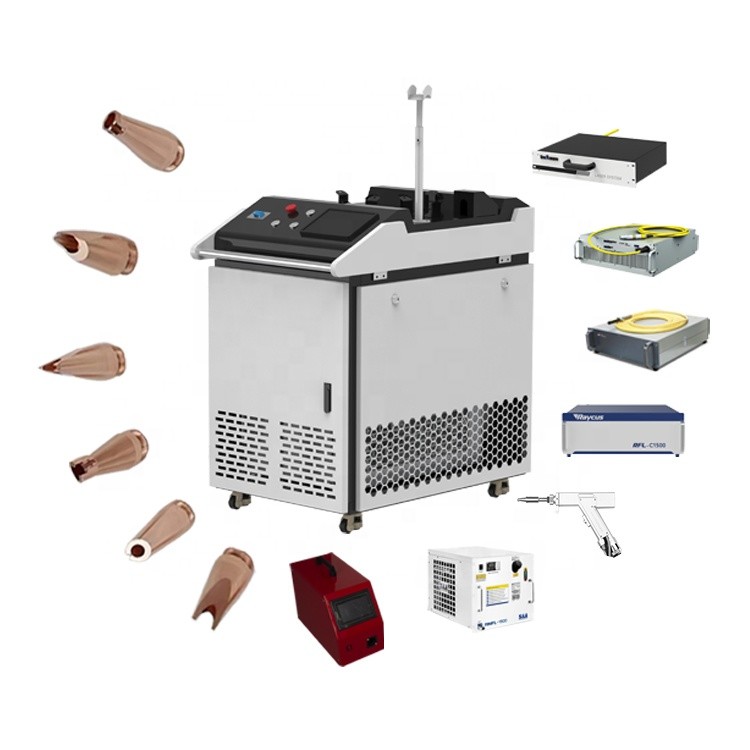

1500w 2000w handheld laser welding machine with Raycus/Max laser source



Specification

Laser Beam 2000w 1500w 1000w Max Raycus BWT
Cooling Built-in Industrial Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 1.25kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas Pressure 5-10L/min
User Interface For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty Class 4 laser equipment,Machine with CE,FDA certificate.
The machine comes with error alarm function,emergency stop,chiller alarm.
Power Requirement 220±10% V AC, 50/60Hz
Operating Ambient Temperature(℃) 10~40℃
Humidity (%) 90
Dimensions(W×H×D) 93*62*100cm
Weight 160kg







Working samples

1500w 2000w Handheld Laser Welding Machine With Raycus / Max Laser Source 0



Machine details

1500w 2000w Handheld Laser Welding Machine With Raycus / Max Laser Source 1



Machine main features

9 kinds of welding modes, a variety of welding nozzles, to meet different welding needs; With safety induction function, laser will be emitted after touching the metal, and the light will be automatically locked when it is removed; Spiral shaking function, the weld width can be adjusted, and the welding ability is significantly improved.



High-quality water chiller: dual temperature and dual control, circulating water circuit, can quickly cool the internal pipeline cavity of the welding head, and cool the laser at the same time.



Flexible welding laser head: 360° no dead angle micro welding
After the laser beam is focused, a small spot can be obtained, which can be precisely positioned, and is suitable for automatic mass production of micro-sized workpieces. It is mainly used for welding thin-walled materials and precision parts, and can realize spot welding, stitch welding, tailor welding, sealing welding, etc. High aspect ratio, small weld width and low thermal influence

1500w 2000w Handheld Laser Welding Machine With Raycus / Max Laser Source 2
