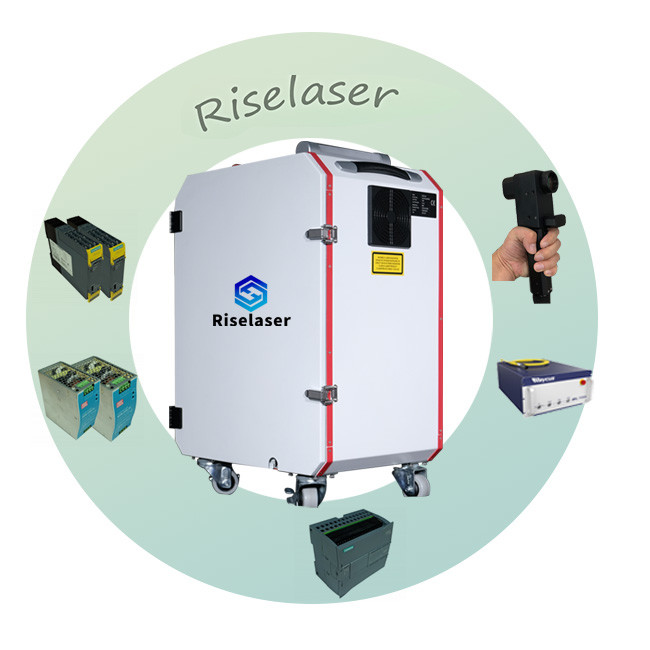

Air Cooling Laser Cleaning Rust Machine 200w 100w MOPA Pulsed Fiber Laser
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Laser Cleaning Rust Machine | Laser Power | MOPA Fiber Laser |
|---|---|---|---|
| Available Power | 100w 200w 300w | Cooling Method | Air Cooling |
| Application | Rust Paint Oil Dust Remove | Fiber Cable Length | 3 / 5 M |
| Operation | Manual/auto | Control Method | Control Panel |
| Machine Size | 411*538*685mm | Machine Weight | 80KG |
| Maximum Single Pulse Energy (mJ) | 1 | ||
| High Light | CNC controller Laser Cleaning Rust Machine,MOPA Laser Cleaning Rust Machine,200w Laser cleaning machine |
||
Product Description
Laser Cleaning Rust Machine To Replace Sandblasting Machine 200w 100w Pulsed Fiber Laser
What is a laser cleaning machine?
Laser cleaning machine is an environmentally friendly electric cleaning tool that uses a hand-held laser cleaning gun or CNC controller for surface treatment. The laser welding machine is used for instantaneous high temperature ablation of the surface of the object by the laser beam to remove surface materials such as rust, coating, paint, oil, oxide, grease, resin, glue, dust, stain, residue, etc. Laser cleaning machine is also known as laser cleaning machine, laser rust remover, laser rust remover, laser paint remover, laser paint remover, laser coating remover, laser deaerator, laser degreasing machine, laser decontamination machine, Laser descaling machine.
Detail specification
| Main technical parameters of laser cleaning system | |
| parameter name | parameter value |
| Laser type | Pulsed fiber laser source |
| Maximum output power (W) | 200/100 |
| Center wavelength (nm) | 10641064 |
| Fiber Beam Quality M2 | less than 1.8 |
| Power adjustment range (%) | 10-100 |
| Output power instability (%) | less than 5 |
| Laser pulse frequency (kHz) | 20-2000 |
| Pulse length (ns) | 10, 30, 60, 240 for optional |
| Maximum single pulse energy (mJ) | 1 |
| Conductive fiber length (m) | 3 or 4 |
| Laser protection class | 4 |
| cooling method |
Air cooling |
Laser rust removal gun
The biggest advantage of our laser rust removal gun is: light weight, comfortable hand feeling and stable use
Laser rust removal gun brand: Riselaser
Cable length: 3/5m
Cleaning head weight ≈ 0.9kg,
This handheld laser rust removal gun is highly versatile, adopts high-quality precision optical components, and the beam quality emitted by the gun is excellent and stable.
Laser rust removal, cool shape, ergonomic design, comfortable grip.
In order to make the laser rust remover work more efficiently, our development team has developed a double protection lens design to make it have better dust-proof performance.
Straight point, making cleaning easier for cleaners
The adjustment method is simple and fast, and the structure design is compact
Reliable safety performance, using contact light to improve safety protection level
Machine diameter of 200W model

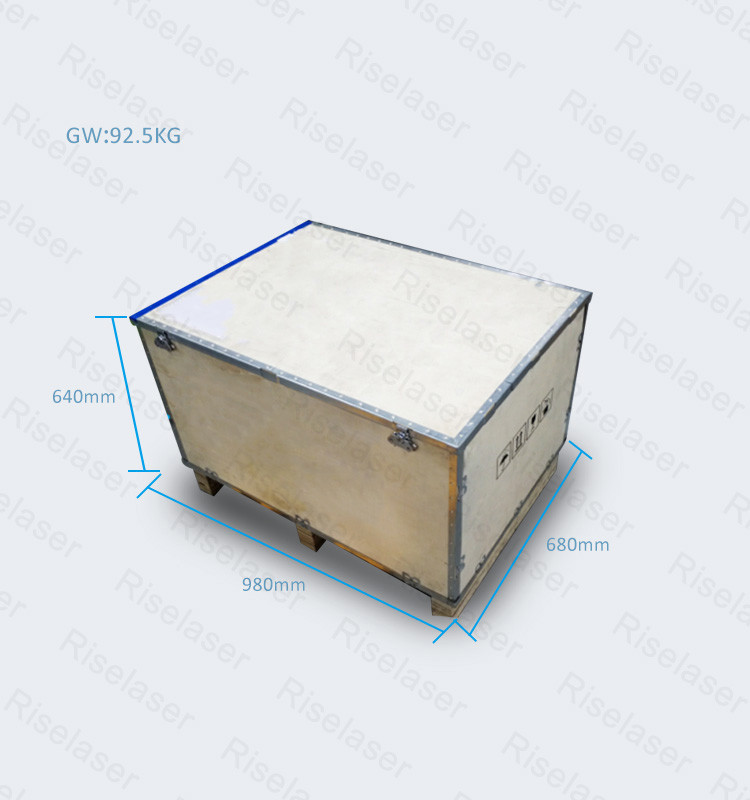

Machine package
Which type laser machine we are supply
We will provide you cheap fiber laser cleaning machines in 2022 with 50W, 100W, 200W, 300W, 1000W pulsed lasers with 1000W 1500W, 2000W or 3000W laser power and expert cleaning services to suit your custom cleaning plans, projects and ideas .
