Small Backpack Laser Cleaning Machine Air Cooling For Rust Removal Paint Removal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Type | Laser Cleaning Rust Machine | Laser Power | Pulsed Fiber Laser50w 100w |
|---|---|---|---|
| Cooling Method | Air Cooling | Application | Laser Rust Removal, Paint Removal |
| Main Feature | Backpack Portable | Fiber Cable Length | 3 / 5 M |
| Laser Souce Brand | Customized MAX | Control Method | Control Panel + Indicator Lamp |
| Machine Size | 411*538*685mm | Machine Weight | 8Kg/12.5kg |
| High Light | 0.8 mJ backpack laser cleaning machine,Rust Removal backpack laser cleaning machine,laser cleaning machine for rust removal |
||
Product Description

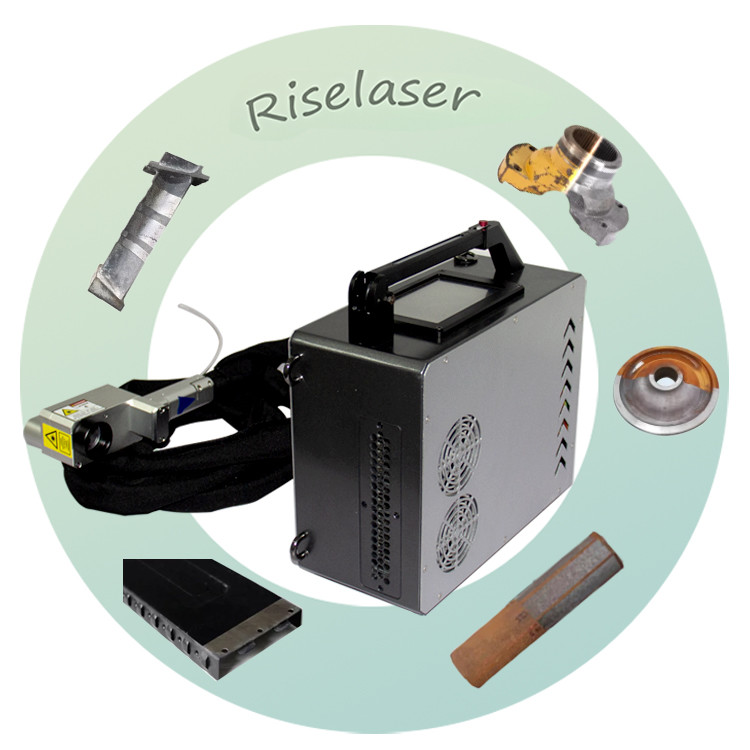

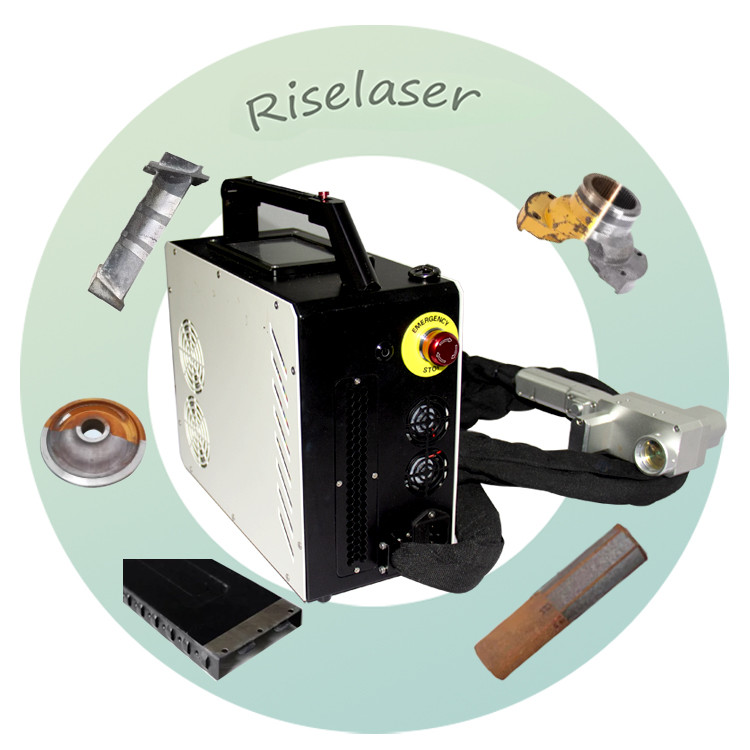

Handheld Laser Rust Removal Machine Backpack Laser Cleaning 50w 100w
The handheld RL-C50/100 mini is an air-cooled pulsed laser system for high performance, industrial grade, fast, precise and incredibly efficient laser cleaning.
The ultra-compact enclosure is designed as a professional-grade laser cleaning and finishing system for small areas that require delicate cleaning, paint stripping, and other finishing operations.
Special metal housings are interchangeable to meet customer needs and can be easily installed on any production line or robotic arm.
Machine specifications
| Model | RL-C100 mini | RL-C50 mini |
| Laser source | 100w pulsed fiber laser | 50w pulsed fiber laser |
| Laser Power | 100W | 50W |
| Fiber cable length | 3 M | 3 M |
| Laser Wavelength | 1064nm | 1064nm |
| Pulse Energy | 1mJ | 0.8 mJ |
| Pulse frequency | 20-400KHz | 45-170KHz |
| Cooling | Air cooling | Air cooling |
| Dimension | 38*15.2*28cm | 31.8*28.5*12.7cm |
| Weight | 12.5Kg | 8Kg |
| Beam width | 10-100mm | 10-100mm |
| Optional | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage |
Single Phase AC 220V,50/60HZ |
Single Phase AC 220V, 50/60HZ |
Machine dimension:
Features and advantages:
Microprocessor controlled, the system is instantly ready when the key is turned on.
The touch screen allows you to choose from a variety of pre-designed cleaning modes.
No computer required.
Heavy-duty industrial design is based on years of experience manufacturing handheld lasers for marking and engraving applications. Delivered in a rugged metal enclosure for quiet environments.
Shipping
About our cleaning machine packing and shipping, firstly our workers will make sure your fiber laser cleaning machine is well tested and clean before packing, then add stretch film and spare parts for the whole machine for sweet protection, and finally we will make export Standard strong plywood case package according to your needs.
transportation:
We will provide various shipping methods.
1 by sea
2 by plane
3 By train
4 By truck
