3 In 1 1500w Continuous Welding Machine Handheld Laser Welding Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Key Words | Continuous Welding Machine | Key Words 2 | Handheld Laser Welding Machine |
|---|---|---|---|
| 3 In 1 Function | Laser Welding, Cleaning And Cutting | Laser Type | CW Fiber Laser Or Raycus/ Max/BWT |
| Laser Power | 1500w/2000W | Machine Weight | 160KG |
| With | 3 In 1 Laser Head | Packing Weight | 180KG |
| Cooling System | Built-in Water Chiller | Fiber Wire Length | 10M |
| Machine Size | 745*516*710mm | Electrical Supply | 220±10% V AC, 50/60Hz |
| High Light | 220VAC Handheld Laser Welding Machine,Continuous Handheld Laser Welding Machine,1500w Continuous welding machine |
||
Product Description

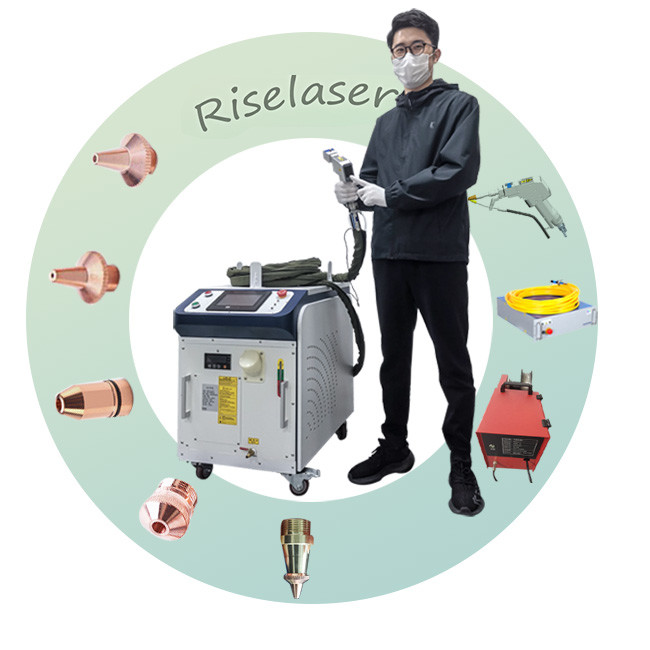

3 In 1 1500w Continuous welding machine Handheld Laser Welding Machine
Introduction
Laser source: 1500W/2000W Raycus/Max/BWT laser source;
Laser wavelength: 1080±1nm;
Cable length: 10 meters;
Welding speed: 0-120mm/sec;
Welding thickness: 0.5-5mm;
Cooling method: water cooling;
Gas assist: nitrogen/argon;
Visual positioning: red light
Advantages of hand-held laser welding machine: simple operation, reduce labor costs; small indirect radiation; fast speed, efficiency is 3-8 times that of argon arc welding
Product details: Raycus/Max/BWT laser source, high stability, lower equipment cost; hand-held welding torch, light and flexible; built-in water cooling design to avoid wire entanglement; simple operation; 10 meters of optical cable; including automatic wire feeder and transformer
The machine integrates three functions of welding, cleaning and cutting.
The laser head is currently the only tip on the market with a touch screen, making switching between functions easy and fast.
Specification
| Laser Beam | 1500watt GW Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm |
| Cooling | Built-in Industrial Chiller(Purified water or distilled water) |
| Cable length | Fiber cable lenght 10m, Operable cable length 8m |
| Cleaning head | 0.75kg cleaning head |
| Wobble width | Adjustable 20-100mm |
| Protection Gas | compressed gas Pressure 5-10L/min |
| User Interface | For Laser Control:Power,Frequency, Frequency,Spot width |
| Language | Chinese-English |
| Safty | Class 4 laser equipment,Machine with CE,FDA certificate. |
| The machine comes with error alarm function,emergency stop,chiller alarm. | |
| Power Requirement | 220±10% V AC, 50/60Hz |
| Operating Ambient Temperature(℃) | 10~40℃ |
| Humidity (%) | 90 |
| Dimensions(W×H×D) | 745*516*710mm |
| Weight | 160kg |
Main components of this machine
Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm
Support welding methods
Laser head
With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device
Water cooling device
Built-in industrial chiller, no external chiller required
Built-in water temperature alarm function, safe production
Dual temperature dual control
Application
Wide range of applications: 2000W handheld laser welding machine is widely used in complex and irregular welding processes in cabinets and kitchens, stair lifts, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel furniture, metal sheet metal and other industries
Machine Video
Shipping and services
Service: The whole machine is guaranteed for 1 year, and the laser source is guaranteed for 2 years. Lifetime online technical support. Value-added air express service that supports FedEx/DHL/UPS. Please contact us for the latest additional air freight charges.
