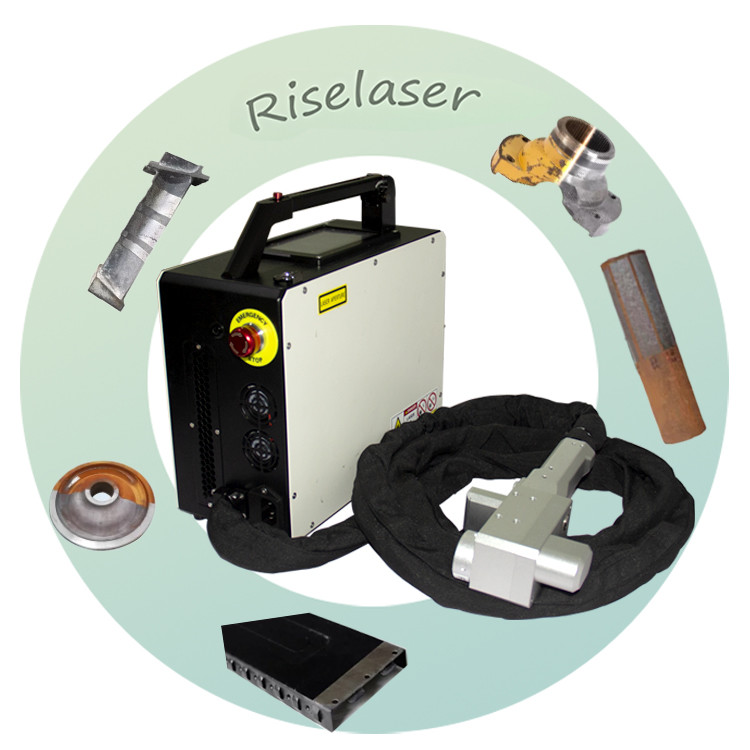

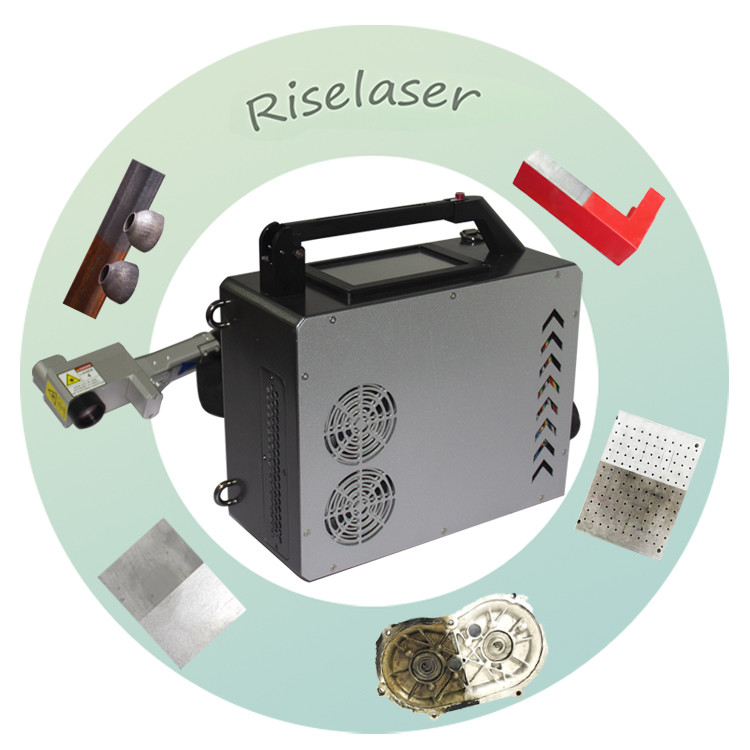

Backpack Portable Handheld Laser Cleaner 50w 100w With Wobble Laser Cleaning Head

Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-C50/100 mini
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Type Portable Handheld Laser Cleaner Laser Power Pulsed 50w 100w
Cooling Method Air Cooling Application Rust Remove/paint Remove
Main Feature Mini Size, Backpack Fiber Cable Length 3 / 5 M
Operation Manual/auto Control Method Control Panel + Indicator Lamp
Machine Size 411*538*685mm Machine Weight 8Kg/12.5kg
High Light

Backpack handheld laser cleaner

,

1064nm handheld laser cleaner

,

Wobble Head backpack laser cleaning machine

Leave a Message
Product Description



Portable Handheld Laser Cleaner
The advantages of pulsed handheld laser cleaning machine:

Non-contact 360° cleaning, no space and location constraints, no consumables.
Will not damage the substrate. It has a good cleaning effect on substrates with high precision requirements such as molds.
Better control of heat input prevents overheating or micro-melting of the substrate.
The cleaning surface has high cleanliness and no pollution, and can be used directly without secondary treatment.
The red light focusing is easy to operate, and the cleaning is repeated automatically.
The life of the laser source is 100,000+ hours, and it can work continuously for 24 hours.
The single-pulse light energy is strong, and the cleaning efficiency is high.
Remote update, wireless control, trolley-type integrated injection molding chassis design.







Machine specifications



Model RL-C100 mini RL-C50 mini
Laser source 100w pulsed fiber laser 50w pulsed fiber laser
Laser Power 100W 50W
Fiber cable length 3 M 3 M
Laser Wavelength 1064nm 1064nm
Pulse Energy 1mJ 0.8 mJ
Pulse frequency 20-400KHz 45-170KHz
Cooling Air cooling Air cooling
Dimension 38*15.2*28cm 31.8*28.5*12.7cm
Weight 12.5Kg 8Kg
Beam width 10-100mm 10-100mm
Optional Manual Manual
Temperature 5-40 ℃ 5-40 ℃
Voltage

Single Phase

AC 220V,50/60HZ

Single Phase

AC 220V, 50/60HZ























































Backpack Portable Handheld Laser Cleaner 50w 100w With Wobble Laser Cleaning Head 0



Machine dimension:

Backpack Portable Handheld Laser Cleaner 50w 100w With Wobble Laser Cleaning Head 1

Features:

1. Laser cleaning has no grinding, non-contact, no thermal effect and suitable for various materials, etc.

2. Rapid, clean and accurate cleaning;

3. No damage to substrate;

4. High cleaning precision, strong control ability;

5. Can be used for a long time, low operating costs;

6. Light to carry on shoulder for outside high position cleaning work;

7. Environmentally friendly, no pollution

Backpack Portable Handheld Laser Cleaner 50w 100w With Wobble Laser Cleaning Head 2



How to choose your laser?

When you have high requirements on precision, or when you need to strictly control the heating of the substrate, or when you have high requirements on surface roughness and non-destructiveness, please choose a 100W 100W pulsed laser cleaning machine;

And this machine with small size is very suitable to do flexible cleaning works.


For some large steel structures, such as pipes, etc., due to the large size and fast heat dissipation, the requirements are not high, and the cleaning speed is required to be fast. Please choose a 1000W, 1500W or 2000W continuous laser cleaning machine.
