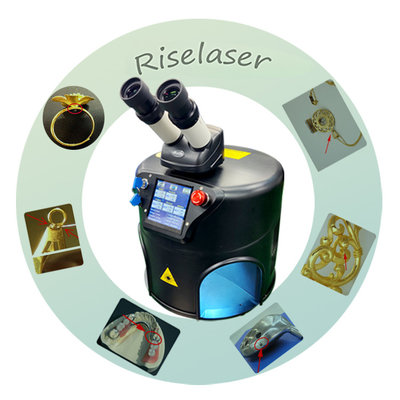

YAG micro laser welding machine for gold silver dental welding with high pulse energy

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMachine Function | Micro Laser Welding Machine | Key Words | Laser Machine For Gold |
---|---|---|---|
Aiming And Positioning | Microscope + HD Digital CCD Camera System | Operating Mode | Touch Screen Control |
Pulse Width | 0.1-10ms | Maximum Laser Pulse Energy | 40J |
Pump Source | Xenon Lamp | Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ |
Wooden Package Dimension | 40x45x48CM | Machine Dimension | Ø295mm X H282mm |
Machine Weight | 13.5kg | Packing Weight | 22.5kg |
YAG micro laser welding machine for gold silver dental welding with high pulse energy
Main features of the machine
1. This is the smallest and lightest spot welding machine in the world, weighing only 13.5KG, which completely breaks through your user's imagination of spot welding machines.
2. The machine is equipped with a digital screen. Different from the previous spot welding machine, the magic box will not flash the screen when it emits light, which makes the operator's eyes feel more comfortable, observe more carefully, and will not feel tired even if it is used for a long time.
3. The single-pulse energy reaches 40J, which is suitable for jewelry, watches, dentistry, and glasses repair. The repair effect is fast and firm.
4. The machine is equipped with a high-definition 10x magnifying microscope, and adopts the well-known brand Motec, which displays high-definition and does not hurt the eyes.
5. Easy to use for both novice and expert
6, the machine starts quickly, 10 seconds to start quickly.
7. Support different color customization.
Machine specification
Model | Magic Box | |
Laser Type | 1064nm YAG Laser | |
Beam Diameter | 0.2-2.0mm | |
Pulse Width | 0.1-10ms | |
Frequency | 1.0~10.0Hz Continuously Adjustable | |
Maximum Laser Pulse Energy | 40J | |
Host Power Consumption | ≤1.5KW | |
Cooling System | Convective air cooling | |
Pump Source | Xenon lamp | |
Aiming and Positioning | Microscope + HD digital CCD camera system | |
Operating Mode | Touch Control | |
Display Touch Screen | 10X high quality colorful Digital CCD | |
Operating Language | English, Chinese | |
Electrical Connection Values | AC220V ± 5%, 50HZ / 60HZ | |
Machine Dimension | Ø295mm x H282mm | |
Wooden Package Dimension | 40x45x48CM | |
Machine Net Weight | 13.5KG | |
Operating Environmental Temperature | ≤45℃ | |
Humidity | < 90% non-condensing | |
Application | Welding and repairing all kinds of jewelry and metal parts |
Machine characteristics
Machine size
Application
Jewelry laser welder widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

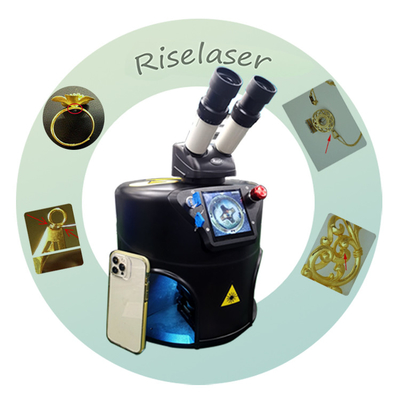

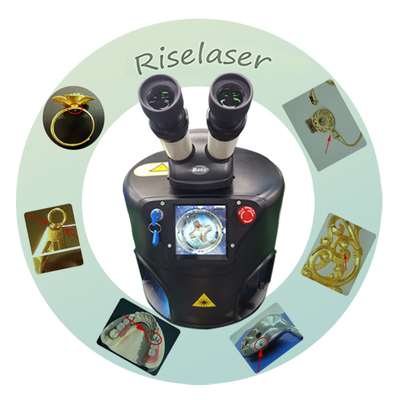

More photo from different angle
Machine operation display
FAQ
Q1. How to choose the right machine?
Tell us your material and detail requirements through text, pictures or video.
We will recommend you the right model at a reasonable price.
Q2. How is the delivery time?
For standard machine, delivery time is 3-7 days after payment.
For non-standard machines, the delivery time is 7-15 days after payment.
Q3. How to install and use?
We have instruction manuals, operation manuals and training videos inside the machine.
We can also provide online training for free.
Q4. What should I do if I encounter problems during operation?
You can send us the error message by mail and we can help us solve it by mail.
Telephone or video communication.
Q5. If we want to learn how to operate the machine, can you provide it?
We can. We can provide online training via video. We also offer free training
Courses of our company.
Q6. Do you provide door-to-door service if we need it?
Yes. If you need, we can provide door-to-door service. But require customers to pay for transportation, hotel, food and $60-100/day.
