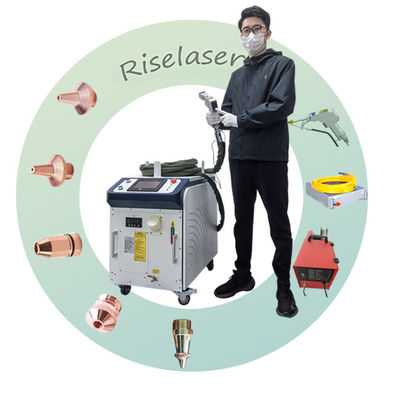

3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine

  • 3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine
  • 3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine
  • 3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Handheld Welding Machine Key Words 2 Manual Laser Welding Machine
3 In 1 Function Welding, Cleaning And Cutting Laser Type GW CW Fiber Laser Or Raycus/ Max
Laser Power 1500w Machine Weight 160KG
With Auto Wire Feeding System Packing Weight 180KG
Cooling System Built-in Water Chiller Fiber Wire Length 10M-15M
Machine Size 745*516*710mm Electrical Supply 220±10% V AC, 50/60Hz
High Light

1500w manual laser welding machine

,

GW CW manual laser welding machine

,

compact handheld welding machine
Leave a Message
Product Description

3 in 1 1500w manual laser welding machine handheld welding machine



Introduction
This compact and flexible MINI RL-Y1500 portable handheld laser welding machine is independently developed by Riselaser. The machine integrates three functions, including welding, washing machine and cutting functions. Adopt integrated structure, built-in integrated control system, laser system and cooling system. Easy to carry, good welding effect, many cleaning methods, simple and convenient to cut.
The laser head equipped with this computer is the only gun head with a touch screen on the market, which integrates three functions. Switching between functions is easy and fast.


Simple to operate and ready to use. . The hand-held laser welding machine adopts an ergonomically designed hand-held laser welding head, and a welding head with a control screen is optional, which is more convenient and practical.



Specification

Laser Beam 1500watt GW Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling Built-in Industrial Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 0.75kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas Pressure 5-10L/min
User Interface For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty Class 4 laser equipment,Machine with CE,FDA certificate.
The machine comes with error alarm function,emergency stop,chiller alarm.
Power Requirement 220±10% V AC, 50/60Hz
Operating Ambient Temperature(℃) 10~40℃
Humidity (%) 90
Dimensions(W×H×D) 745*516*710mm
Weight 160kg




3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine 0



Main components of this machine

3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine 1

Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm



Support welding methods

3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine 2

Laser head

With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device

3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine 3



Water cooling device
Built-in industrial chiller, no external chiller required
Built-in water temperature alarm function, safe production
Dual temperature dual control



3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine 4









Packing details

3 In 1 1500w Manual Laser Welding Machine Handheld Welding Machine 5





Machine Video
