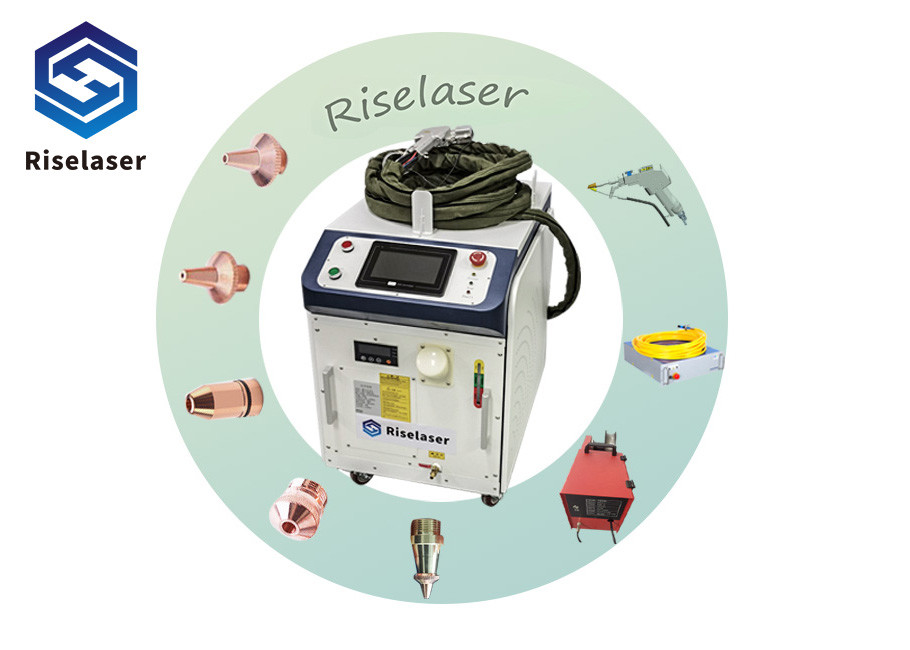

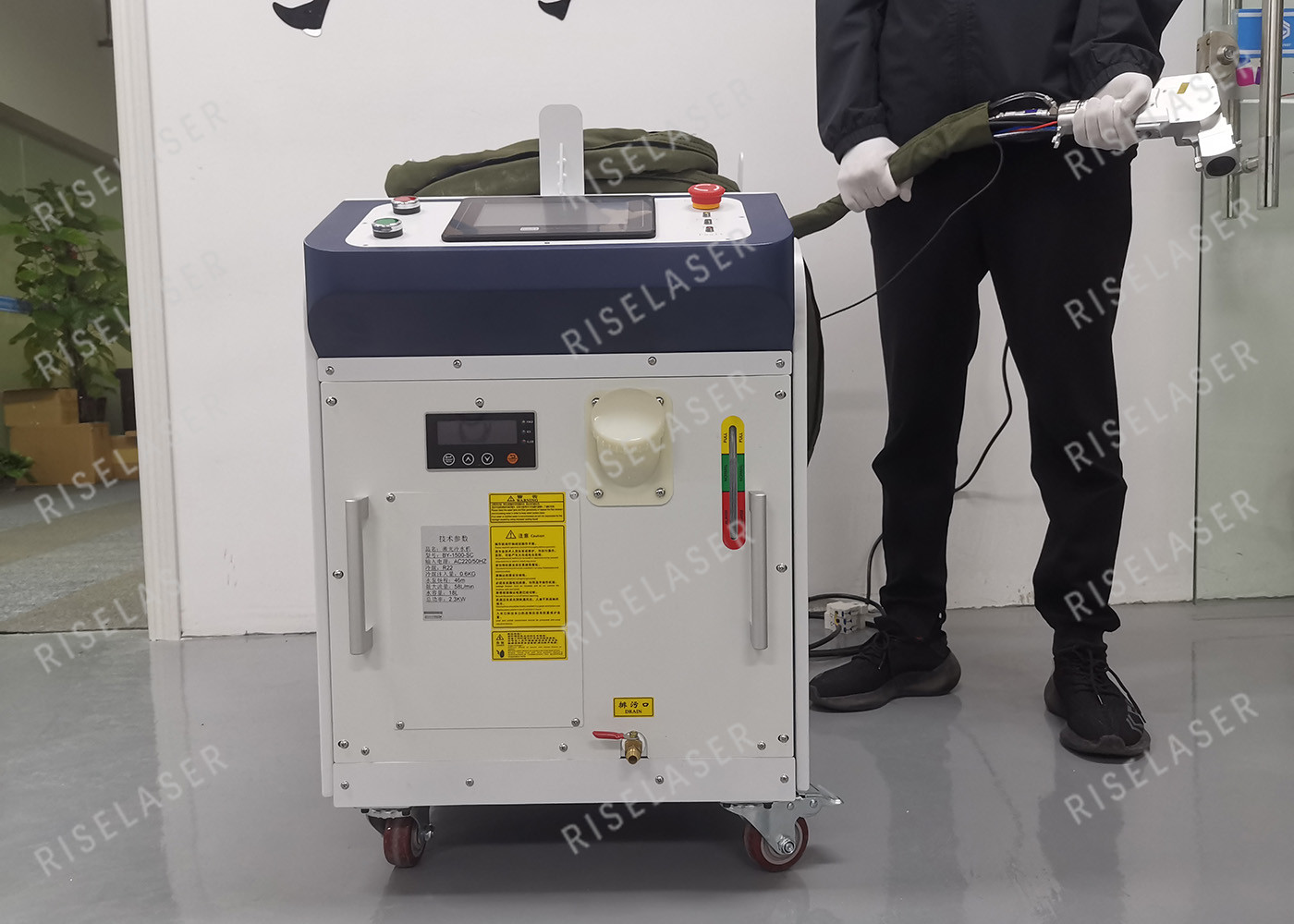

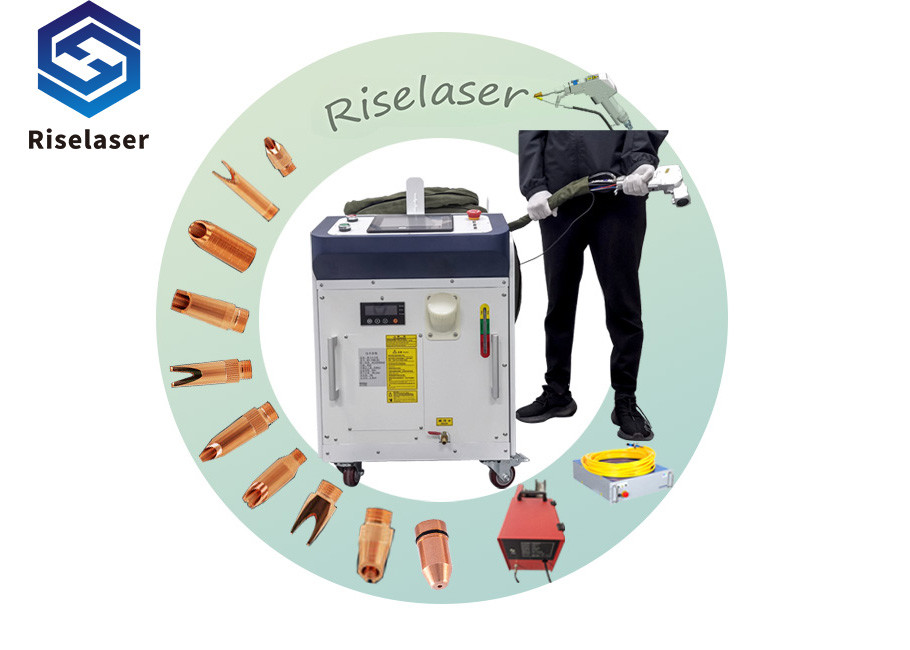

Handheld 1500W Laser Welding Machine With Cleaning Cutting Function

  • Handheld 1500W Laser Welding Machine With Cleaning Cutting Function
  • Handheld 1500W Laser Welding Machine With Cleaning Cutting Function
  • Handheld 1500W Laser Welding Machine With Cleaning Cutting Function
  • Handheld 1500W Laser Welding Machine With Cleaning Cutting Function
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words 1500W Laser Welding Machine Key Words 2 Handheld 1500W Laser Welding Machine
Function Welding, Cleaning And Cutting Laser Type GW CW Fiber Laser Or Raycus/ Max
Laser Power 1500w Machine Weight 160KG
Cooling System Built-in Water Chiller Fiber Wire Length 10M-15M
Machine Size 745*516*710mm Electrical Supply 220±10% V AC, 50/60Hz
High Light

compact flexible Laser Welding Machine

,

1500W Laser Welding Machine

,

Cleaning Cutting Handheld Laser Welding Machine
Leave a Message
Product Description

Handheld 1500W Laser Welding Machine With Function Of Cleaning And Cutting



Interduction
The compact and flexible MINI RL-Y1500 portable handheld laser welding machine has been deeply loved by customers since its development. It has an integrated structure with built-in integrated control system, laser system and cooling system. Easy to carry, good welding effect, many cleaning modes, good cutting effect.
Simple to operate, ready to use. . The hand-held laser welding machine adopts an ergonomically designed hand-held laser welding head, and the welding head with a control screen is optional, which is more convenient and practical.





Specification

Laser Beam 1500watt GW Continuous Wave Fiber Laser,Emission Wavelength 1080±5nm
Cooling Built-in Industrial Chiller(Purified water or distilled water)
Cable length Fiber cable lenght 10m, Operable cable length 8m
Cleaning head 0.75kg cleaning head
Wobble width Adjustable 20-100mm
Protection Gas compressed gas Pressure 5-10L/min
User Interface For Laser Control:Power,Frequency, Frequency,Spot width
Language Chinese-English
Safty Class 4 laser equipment,Machine with CE,FDA certificate.
The machine comes with error alarm function,emergency stop,chiller alarm.
Power Requirement 220±10% V AC, 50/60Hz
Operating Ambient Temperature(℃) 10~40℃
Humidity (%) 90
Dimensions(W×H×D) 745*516*710mm
Weight 160kg




Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 0



Main components of this machine

Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 1

Automatic wire feeder
Automatic wire feeder for seam welding less than 1.6mm
adjustable speed
Wire coil weight less than 15kg
Wire diameter 0.8, 1.0, 1.2, 1.6mm, aluminum 1.2mm



Support welding methods

Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 2

Laser head

With 6 light spot modes (O, ●, 8, ◎, -, △)
The spot size can be adjusted from 0.2-5mm,
Simple operation, fingertip digital selection and adjustment
Can significantly improve welding efficiency.
Can be equipped with automatic wire feeding device

Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 3



Water cooling device
Built-in industrial chiller, no external chiller required
Built-in water temperature alarm function, safe production
Dual temperature dual control



Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 4







Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 5Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 6



Packing details

Handheld 1500W Laser Welding Machine With Cleaning Cutting Function 7





Machine Video
