60kg Small Size To Replace TIG Welding Portable Laser Welding Machine 1500W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Small Size, Light Weight | Key Words | Stainless Steel Laser Welding Machine |
|---|---|---|---|
| Key Words 2 | Air Cooling | Water Tank Capacity | CW Fiber Laser |
| Laser Power | 1000w 1500w | Laser Source | RECI/GW |
| Machine Weight | 60KG | Cooling System | Air Cooling System |
| Fib1500Wer Wire Length | 10M-15M | Place Of Origin | Shenzhen, China |
| Highlight | 1500W Portable Laser Welding Machine,Air Cooling Portable Laser Welder,1500Watt Laser Welding Machine Portable |
||
Product Description

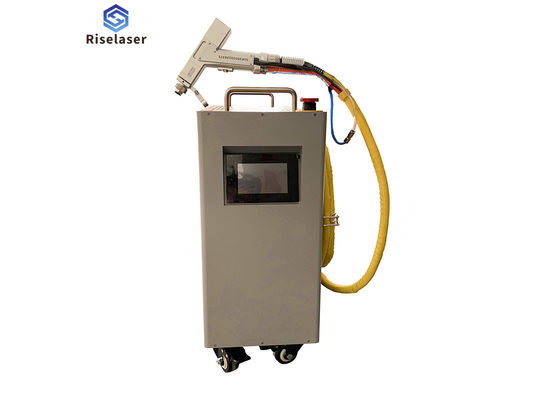

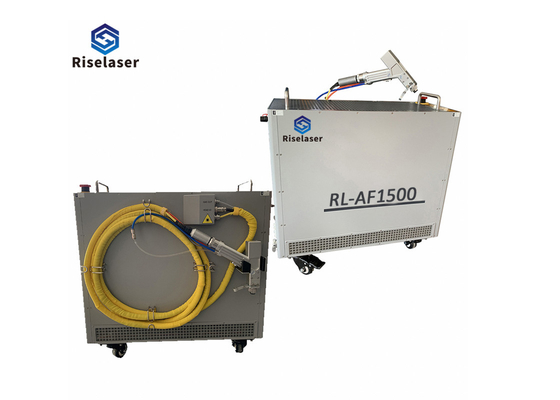

60kg small size to replace TIG welding portable laser welding machine 1500W
1500 W fiber laser power
Maintenance-free all-solid-state fiber lasers from RECI for high reliability in industrial environments
Excellent laser stability ensures stable power over the entire output range of 150-1500 W
Machine technical data
| Model | Air Cooling MINI RL-F1500 | ||
| Optical characteristics | Output power(W) | ≥1500 | |
| Laser type | Continues Fiber Laser | ||
| Output power adjustment range(%) | 10~100 | ||
| Wavelength(nm) | 1080±3 | ||
| Output power instability | <3% | ||
| Indicates red light power(mW) | >0.5 | ||
| Output Interface | QBH | ||
| Output fiber core diameter(μm) | 20,30 or 50 | ||
| Output fiber label length | Standard: 5m/Optional: 10m | ||
| Electrical characteristics | Working Voltage | 220V±10%,50/60Hz | |
| Maximum power consumption(W) | <6000 | ||
| Control method | Display screen/host computer | ||
| Other characteristics | Machine dimension (with handle (W×H×L))(mm) | 347.5×667×720 | |
| Machine Weight(kg) | <65 | ||
| Working temperature range(℃) | 5~40 | ||
| Working humidity range(％) | <70 | ||
| Cooling method | Air Cooling | ||
| Storage temperature(℃) | -10~60 |
||
Compact Handheld Welding Gun
Ergonomically designed, lightweight, the most comfortable and easy-to-use laser torch, and customizable tip branding
Dual-safety illuminated buttons and welded-component contact sensors increase operator safety
Various types of replaceable nozzles, suitable for different welding requirements
5m pipeline bag (optional 10m)
Compatible with all types of wire feeders
Machine Dimension
Welding samples
