RL-P Laser Marking Machine 20w Laser Printer Marking Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Shenzhen, China | Key Words | Laser Marking Machine 20w |
|---|---|---|---|
| Application | Laser Printer Marking Machine | Marking Area | 100~150mm (range Optional) |
| Output Power Stability | < 3% | Machine Weight (KG) | 20kg |
| Repetition Accuracy | ± 0. 002 | Control Software | EZCAD Software |
| System power supply | 500W / 220V / 50Hz (110V Can Be Connected) | Marking Depth | ≤ 1 Mm (depending On Power And Time) |
| High Light | Laser Printer Marking Machine 20w,1064nm Wavelength Laser Marking Machine |
||
Product Description

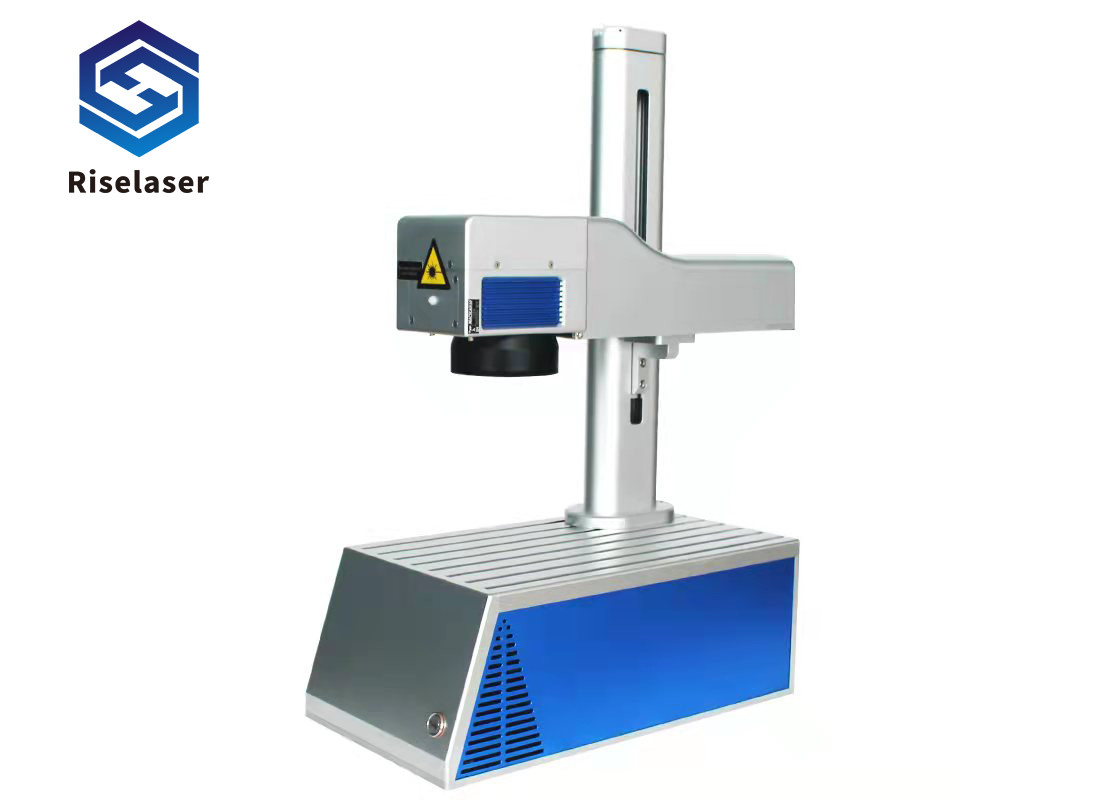

RL-P laser marking machine 20w laser printer marking machine
PRODUCT DESCRIPTION
The RL-P series products use a 1064nm wavelength fiber laser, which is suitable for various metal materials such as iron, copper, aluminum, gold, silver, and some non-metal materials such as PC, ABS, PVC, and PC+ABS. It is widely used in 3C, auto parts, electronic components, integrated circuits (PC), electrical appliances, precision equipment, hardware products, building materials, clocks and watches, jewelry, craft gifts and other industries. .
PRODUCT SIZE
Machine Installation
DEVICE SPECIFICATION
| Model series | Intelligent laser marking machine | ||
| Model | RL-20P | RL-30P | |
| Laser parameters | Laser source model | MFP-20X/20QS | MFP-30X/30QS |
| Output power | 18.5W/20W | 30W | |
| Beam quality M² | ≤1.4 | ≤1.4 | |
| Pulse repetition frequency | 27-60 kHz | 30-60 kHz | |
| Laser wavelength | 1064±5 | ||
| Output power stability | <3% | ||
| Design life | About 100,000 working hours (non-service life) | ||
| Optical properties | Marking range | 100~150mm (range optional) | |
| Engraving depth | ≤1mm (depending on power and time) | ||
| Engraving speed | ≤10000mm/s | ||
| Repeat accuracy | ±0.002 | ||
| Mininum line width | 0. 1mm | ||
| Minimum character height | 0.15mm | ||
| Use environment | Cooling method | Built-in air cooling | |
| System power supply | 500W / 220V / 50Hz (110V can be connected) | ||
| Temperature, humidity | 0~40°, 30%≤RH≤85%, air conditioner should be installed when used outside the range | ||
| Oil mist, condensation | Not allowed | ||
| Other parameters | Operating system | Windows operating system | |
| File format | All fonts/types of WINDOWS operating system font library (standard USB input) | ||
| Dimensions | 390X210X615 mm | ||
| Packing size | 680X5500X270 mm | ||
| Total Weight | About 20kg | ||
LASER PRINCIPLE
The marking is directly hit on the surface with the help of a strong pulsed laser beam to produce extremely deep,high-contrast
markings on the surface,achieving permanent markings with uniform viewing angles,and corrosion resistance
Machine features
1. AFFORDABLE ECONOMICAL MODEL, HIGH COST PERFORMANCE
Desktop optical fiber laser marking equipment,a special product
specially developed for the needs of simple,compact,flexible and
convenient equipment.
2. SMALL AND FLEXIBLE, DIVERSIFIED APPLICATIONS
The whole machine weighs only about 20KG, it's small,
compact and light model and very convenient to carry, it can
be switched to any use scene at any time.
3. COMPACTAND STURDY STRUCTURE, ONE YEAR WARRANTY
One-piece integrated design,novel style,compact and firm structure,
stable performance and guaranteed,we promise the
whole machine warranty for one year.
4. COLUMN BEAM PATH CAN BE FLEXIBLY DISASSEMBLED
The beam path and the column can be flexibly disassembled,
The marking position can be arranged as you want, the storage is more convenient;the disassembly and assembly are simple,it only need to
loosen the screws to disassemble and assemble .
