Air Cooled GW Laser Source Mini Laser Welding Machine 60KG Only Replace TIG MIG Welding

  • Air Cooled GW Laser Source Mini Laser Welding Machine 60KG Only Replace TIG MIG Welding
  • Air Cooled GW Laser Source Mini Laser Welding Machine 60KG Only Replace TIG MIG Welding
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, CE
Model Number RL-F1500 Air Cooling
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 5-9 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 SET/WEEK

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Small Size, Light Weight Key Words Mini Laser Welding Machine
Key Words 2 Air Cooling Mini Laser Welding Machine Machine Air-cooled Handheld Portable Metal Laser Welding Machine
Laser Power 1500w Laser Source GW CW 2000W
Place Of Origin Shenzhen, China Machine Weight 60KG
Cooling System Air Cooling System Machine Size 650x300x570 [mm] (L*W*H)
Highlight

Air Cooled Mini Laser Welding Machine

,

1500w GW Laser Welding Machine
Leave a Message
Product Description

Air-cooled GW laser source mini laser welding machine 60KG only replace TIG MIG welding


Maintenance-free all-solid-state fiber lasers from Riselaser for high reliability in industrial environments
Excellent laser stability ensures stable power over the entire output range of 150-1500 W
Select the storage mode to achieve up to 2500 W peak power for greater welding power.

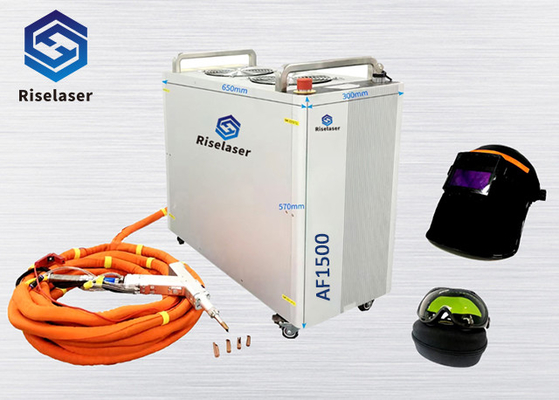

Machin size

Air Cooled GW Laser Source Mini Laser Welding Machine 60KG Only Replace TIG MIG Welding 0



Compact Handheld Welding Gun

Air Cooled GW Laser Source Mini Laser Welding Machine 60KG Only Replace TIG MIG Welding 1
Ergonomically designed, lightweight, the most comfortable and easy-to-use laser torch with built-in swing function

Dual-safety illuminated buttons and welded-component contact sensors increase operator safety
Various types of replaceable nozzles, suitable for different welding requirements
10m pipeline bag (optional 15m)
Compatible with all types of wire feeders

Air Cooled GW Laser Source Mini Laser Welding Machine 60KG Only Replace TIG MIG Welding 2


Built-in swing welding for increased productivity
Simple operation, real-time control of welding frequency and width, swing width up to 5mm
Forms beautiful welds with high tolerance to workpiece assembly gaps



Machine specification

Electrical and Environmental Requirements 　
Input voltage 220VAC/50Hz/60Hz, ＜18A
Protective gas Argon, Nitrogen, Ar+CO2 mix
Storage ambient temperature -20-60℃
Working ambient temperature range 0~50℃
Working environment humidity range ≤95%
　
Mechanical Specifications 　
size 650x300x570 [mm] (L*W*H)
weight 62kg
　
Process application 　
Portable Laser Welding Handheld Laser Welding 　
Intelligent Laser WeldingPrecision Laser Welding 　





Material range
Material Type Thickness Thickness of single-sided welding Thickness of Double-sided welding
Stainless steel ≤4mm ≤10mm
carbon steel ≤4mm ≤10mm
aluminum ≤4mm ≤10mm
copper ≤1mm ≤2mm
