High Power 10000W Sheet Metal Fiber Laser Cutting Machine 200m/min

  • High Power 10000W Sheet Metal Fiber Laser Cutting Machine 200m/min
Place of Origin Shenzhen, China
Brand Name Riselaser
Certification ISO, ce
Model Number RL-24040
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details PLYWOOD BOX
Delivery Time 2-3 MONTHS
Payment Terms L/C, T/T
Supply Ability 10 SETS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Large Size Laser Cutting Machine Working Area 6000mm*2500mm
Graphic Format Supported AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP Control Software Cypcut
Laser Power 3000w/ 4000w/ 6000w/ 8000w/ 10000w/ 12000w Liner Guider System Taiwan HIWIN
Function Cutting Metal Materials Operation System WINDOWS 7 And Above
High Light

10000W Sheet Metal Fiber Laser Cutting Machine

,

200m/min Metal Fiber Laser Cutting Machine

,

10000W Sheet Fiber Laser Cutting Machine
Leave a Message
Product Description

Machine features

  1. Optional HT250 casting bed, impact resistance, good shock absorption, high temperature resistance, etc.
  2. 10,000 class watt heavy-duty structure is option, with high cost performance
  3. Large enclosure, full protection design, exchange of work tables, sectional extraction(optional professional dust collector);
  4. No laser working gas, super flexible light guide effect, optical fiber transmission

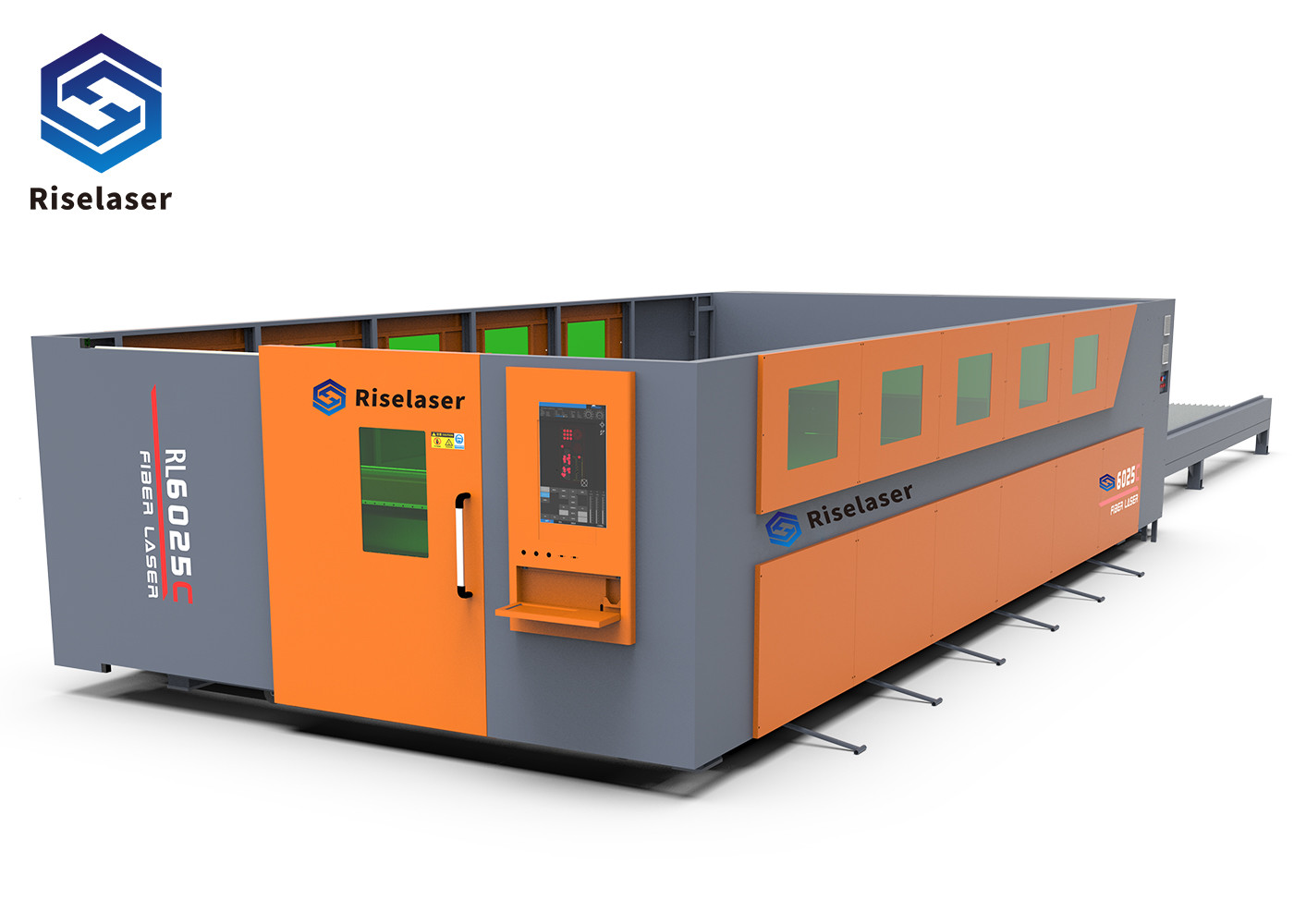

High Power 10000W Sheet Metal Fiber Laser Cutting Machine 200m/min 0

Key specificaitons

Poitioning speed 90~200m/min
Acceleration speed 1~4G
Positioning accuracy ± 0.03mm
Repeat position accuracy ± 0.025mm





Application areas

Aerospace, automotive ships, machinery manufacturing, elevator manufacturing, hardware, decoration, metal external processing services and other manufacturing industries.



Suitable for processing materials

Suitable for carbon steel, stainless steel, aluminum alloy, copper and other non-ferrous metals.






Cutting Machine Samples

High Power 10000W Sheet Metal Fiber Laser Cutting Machine 200m/min 1
