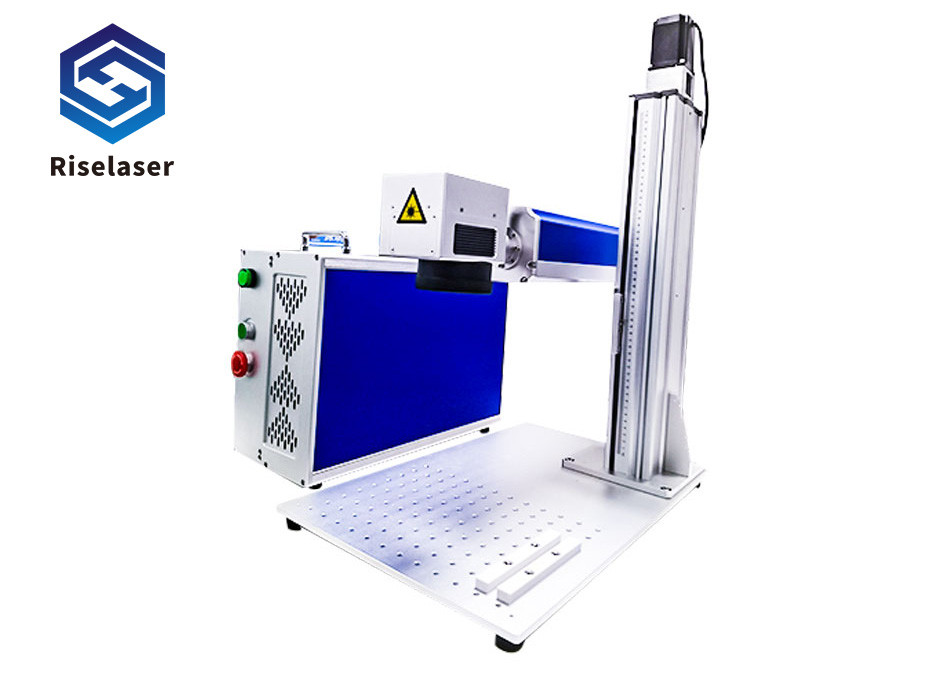

30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel

30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel
30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel

Large Image :  30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Riselaser
Certification: ISO, ce
Model Number: RL-20ps
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1400-4500$
Packaging Details: PLYWOOD BOX
Delivery Time: 5-9 working days
Payment Terms: L/C, T/T
Supply Ability: 100 SET/WEEK
Detailed Product Description
Features: Auto Focus Function Key Words: Metal Engraving Machine
Key Words 2: Fiber Laser Marker Laser Source Brand: MAX Or Raycus Or JPT
Laser Module Life: 100000 Hours Control Software: EZCAD Software
Laser Power: 30W, 50W, 70W Laser Wave Length: 1064nm
Cooling Style: Air Cooling Operating Voltage: 220v /110v, 50/60hz
High Light:

Raycus JPT Small Fiber Laser Engraver

,

50W Small Fiber Laser Engraver

,

30W Fiber Laser Engraver For Metal

Automatic lifting
The machine has a key automatic lifting function, easy to find the focus, simple and convenient operation



JPT laser
JPT laser can engrave the surface of the material more smoothly. So if you have requirements for laser accuracy, JPT will meet you. We also support the use of other brands of lasers, such as Raycus, Max, etc.
30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel 0

Original authentic Beijing JCZ controller
Many sellers use the cracked version of the handle in order to reduce the price. The quality is very poor and prone to problems and cannot be upgraded. But we insist on using the original controller! (There is a serial number on the controller)
30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel 1

550mm Z axis
Our machine uses 550mm Z axis, even if you use a 300x300mm wide-angle field lens, it can still mark materials with a height of up to 80mm.




350*350mm workbench
No matter what size lens you choose, we will install a 350*350mm workbench for you so that you can use large-size lenses to mark large-size materials in the future.

30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel 2



Fiber Laser Marker Specification



Parameter table


Main Parameters
Power
20w/30w/50w
Laser brand
Raycus brand
Marking Area
110*110/150*150/200*200mm/300*300mm
Galvanometer
Sino-Galvanometer SG7110



Main performance parameters
Marking Speed
7000mm/s
Marking Depth
≤0.5mm
Minimum Line Width
0.012mm
Minimum Character
0.15mm
Repeated Precision
±0.003mm
Focus Spot Diameter
<0.01mm
Life-span of Fiber Laser Module
100 000hours
System Operation
Windows XP / W7--32/64bits / W8--32/64bits

Work Environment
Cooling Mode
Air cooling--Built-in
Voltage
220V or 110V
Communication Interface
USB

Other specification
Package Dimension
780mm x 420mm x 770mm
Gross weight
56kg



Machine operation video







Fiber Laser Marker Application



Application industry

Widely used in 2. 3C industry 3. Automobile industry 4. Medical equipment 5. Electronic components 6. IT industry 7. Hardware industry 8. Precision instruments 9. Jewelry, handicrafts 10. High and low voltage electrical appliances, packaging, etc.



Application materials and marking samples

1. Metals and alloys: stainless steel, aluminum, steel, copper, chromium, anodized aluminum, silicon wafers, etc.

30W 50W Raycus JPT Small Fiber Laser Engraver For Metal Stainless Steel 3
