Jewelry Fiber Laser Marking Machine 20 Watt Laser Engraving Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Laser Power | 20W | Supports Graphical Format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
|---|---|---|---|
| Repeatability Accuracy | ±0.002mm | Control Software | EZCAD Control Software |
| Cooling Way | Air Cooling | Operating Voltage | 110/220V ± 10% /,50/60HZ |
| High Light | 1064nm Fiber Laser Marking Machine,Jewelry Fiber Laser Marking Machine,20 watt laser engraving machine |
||
Product Description

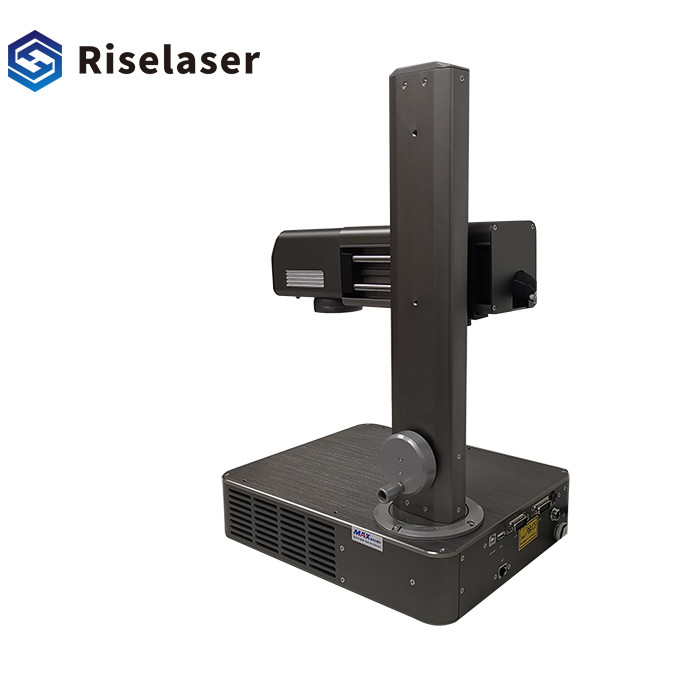

Jewelry Fiber Laser Marking Machine 20 Watt Laser Engraving Machine
Product features
1. This mini laser marking machine has beautiful appearance, compact structure and small floor space.
2. The laser pulse of the small laser engraving machine is narrow, the peak power is high, and the repetition frequency range is wide.
3. The desktop laser engraving machine has low power consumption and high practicability.
4. This small laser marking machine is easy to operate, high reliability and long service life.
5. The desktop laser engraving machine has no consumables or wearing parts.
6. The small laser engraving machine will not cause shadows and false breaks when processing special materials.
| ModelT | RL-20P |
| Laser power | 19.5±0.5W |
| Laser wavelength | 1064nm |
| Beam quality | M2 ＜ 1.4 |
| Modulation frequency | 30-60khz |
| Marking range | 110 (F=160MM) |
| Engraving line speed | 0-15000mm/s |
| pairs / focus mode | manual |
| Marking speed | 600-1000 characters/minute |
| Minimum line width | 0.02mm |
| Minimum character | 0.15mm |
| Repeat accuracy | ±0.002mm |
| Cooling method | Air cooling |
| The use environment is clean and dust-free or less dusty | clean and dust-free or less dusty |
| Working temperature | 10-35℃ |
| Power consumption of the whole machine | ≤ 160W |
| Power demand | AC220V±10%, 50HZ |
Smart Mini Laser Marking Machine
It integrates five core components, such as fiber laser, 8mm high-speed galvanometer, power supply, Intel industrial computer and genuine marking system. This small laser marking machine realizes the integration of multiple cards into one card, and the multi-source power supply is integrated into a single-source power supply. It is a mini laser marking machine with small size, light weight, high speed, high flexibility and high cost performance.
