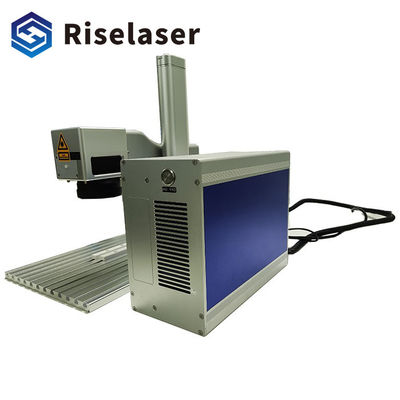

Mini Size Metal Desktop Fiber Laser Marking Machine Laser Engraver 30w
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Laser Etching Machine For Metal | Laser Power | 20W/30W/50W |
|---|---|---|---|
| Laser Wave Length | 1064nm | Q-frequency | 20KHz-30KHz |
| Divergence | 0.3mard | Minimum Line Width | 0.02mm |
| Highlight | desktop fiber laser marking machine,30w laser metal marking machine,laser engraver 30w |
||
Product Description
Mini Size Metal Desktop Fiber Laser Marking Machine Laser Engraver 30w
Product features of Mini size laser etching machine for metal
1. This laser is compact, which can reduce transportation costs to a large extent, and it is also convenient to move while working
2. The beam quality is good, and there are multiple brand lasers to choose from
3. Easy to use and easy to assemble
4. It can be equipped with multiple powers, such as 20W, 30W, 50W
5. You can easily print good patterns or text on various metal materials
Laser source (optional)
As an OEM factory, we have enough laser source inventory: MAX, RAYCUS, JPT, IPG
You can choose which is your first choice.
power supply
Taiwan imported MW laser power supply.
The zero failure rate can ensure the stable and stable output of the machine.
Toggle button
Well-known brand buttons, high quality, durable, trouble-free
Foot switch
When doing the same job, the pedal can improve your work efficiency.
Specification
|
Modle
|
RL-PS30
|
|
Laser power
|
20W/30W/50W
|
|
Laser Wave length
|
1064nm
|
|
Q-frequency
|
20KHz-30KHz
|
|
Divergence
|
0.3mard
|
|
Marking Range
|
100*100mm
|
|
Minimum Line Width
|
0.02mm
|
|
Minimum Character
|
0.15mm
|
|
Marking Depth
|
0~0.5mm
|
|
Engraving Line Speed
|
0~7000mm/s
|
|
Repeatability Accuracy
|
±0.001mm
|
|
Beam Quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics,Text,Bar Codes,Two-dimensional Code,Automatically Marking the Date,Batch Number,Serial Number,Frequency,ect.
|
|
Graphic Format Supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,ect.
|
Professional service
From our factory production to directly transporting the goods to your port or company, we provide an all-in-one service to serve our customers.
With rich experience in handling transportation issues and customs clearance, we can formulate the most economical delivery plan for you and ensure fast delivery.
Regardless of whether the quantity is our MOQ or large
