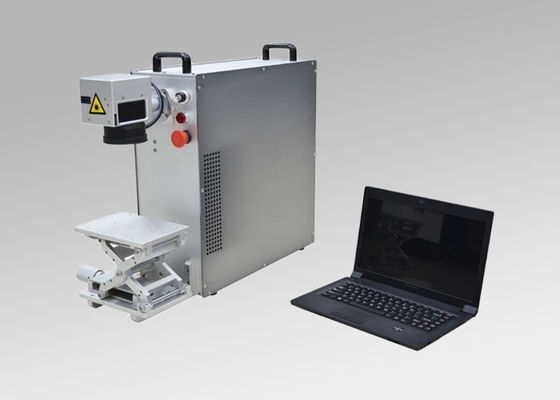

Portable 220v 30W Fiber Laser Marking Machine For Jewellery

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Portable Fiber Laser Marking Machine | Laser Power | 20w,30w,50w |
---|---|---|---|
Working Area | 110*110mm (optional) | Min. Line | 0.01mm |
Repeated Accuracy | ±0.001mm | Power Supply | 220v |
Warranty | 1 Years | Package | Wooden Case |
Application Material | Metal And Non-Metal | Condition | New |
Highlight | 30W Fiber Laser Marking Machine,110mm Fiber Laser Marking Machine,fiber laser engraver 30w |
Portable 220v 30W Fiber Laser Marking Machine For Jewellery
1. Product Introduction
Portable Fiber Laser Marking Machine for Jewelry adopts fiber laser and speedy Gavol scanning system. High quality of light beam, long using time, stable equipment performance exempts maintenance. It is speedy and precious. Marking has non-touched process, permanent effect, humanized operation, and stable running.
2. Product Parameter (Specification)
Product | Portable Fiber Laser Marking Machine |
Purpose | Marking |
Laser Wavelength | 1000-1100nm |
Laser Type | Fiber Laser |
Laser Output Power | 30W |
Typical Laser Life Span | 100,000hrs |
Modulation Frequency | 20-100khz |
Max. Working Speed | 7000mm/S |
Galvanometer | Yes |
Lens | F-Theta Lens |
Beam Diameter/Quality | M2<1.2 |
Working Area | 70x70mm, 110x110mm, 160x160mm, 250x250mm |
Positioning Accuracy | 0.01mm |
Cooling | Air Cooled |
USB 2.0 Compatible | YES |
File Types | PLT, DXF, AI, DST, BMP, JPG, TIF |
General Guarantee | 12 Months From Date Of Arrival At Destination |
3. Production Details
4. Application
The machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.
5. Certification
6. FAQ
Q1. What's your advantage? Why choose you?
A: 1)We have the most professional techniques and team. More advantage in price
2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.
3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
Q2. What's the Paying Method?
A: T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity,sea shipping can be provided.
Q3. Are you a factory or trading company?
A: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q4. How can I get some samples?
A: We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
